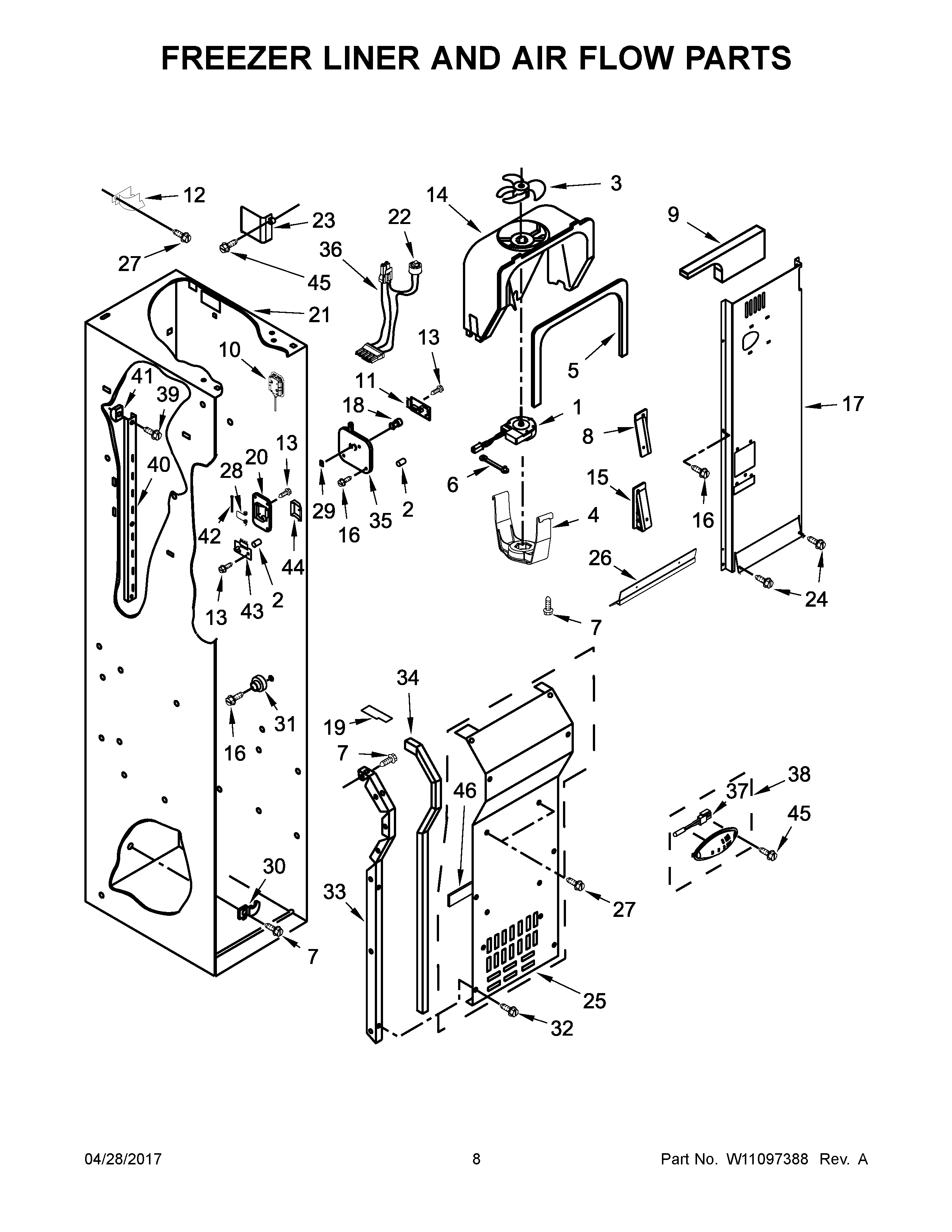

JS42SSDUDE01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	MAY W10436861
2	MAY 2198665
3	Blade, Fan (Evaporator)
4	MAY W10260421
5	Gasket, Cover
6	MAY W10321090
7	SCREW
8	WEDGE, AIR DUCT (RIGHT HAND)
9	MAY 2309283
10	ASSEMBLY, LED MODULE
11	MAY W10290817
12	GUARD, AIR RETURN
13	Screw (2)
14	Fan Scroll
15	WEDGE, AIR DUCT (LEFT HAND)
16	SCREW (BLACK)
17	DUCT, AIR
18	MAY 2198643
19A	Block, Fan Scroll (Right)
19	Block, Fan Scroll (Left)
20	COVER, EMITTER
21	LINER (NOT A SERVICEABLE PART)
22	Defrost, Bi-Metal
23	COVER, AIR OUTLET
24	SCREW (BLACK)
25	ASSEMBLY, EVAPORATOR COVER
26	SUPPORT, AIR DUCT
27	SCREW (BLACK)
28	SPRING, DOOR
29	SLIDE, ICEMAKER SHUT OFF
30	MAY 1112260
31	ASSEMBLY, SHELF STUD (INCLUDES SCREW)
32	Screw
33A	Evaporator, Cover Rail (Right Side)
33	Evaporator, Cover Rail (Left Side)
34	GASKET, EVAPORATOR COVER
35	COVER, RECEIVER
36	MAY W10482187
37	MAY 2306010
38	ASSEMBLY, THERMISTOR
39	MAY W10832438
40	LADDER, SHELF
41	Support, Screw
42	PIN, DOOR
43	MAY W10193840
44	FLIPPER, SHUT OFF
45	MAY 1157158
46	MAY W10581988
