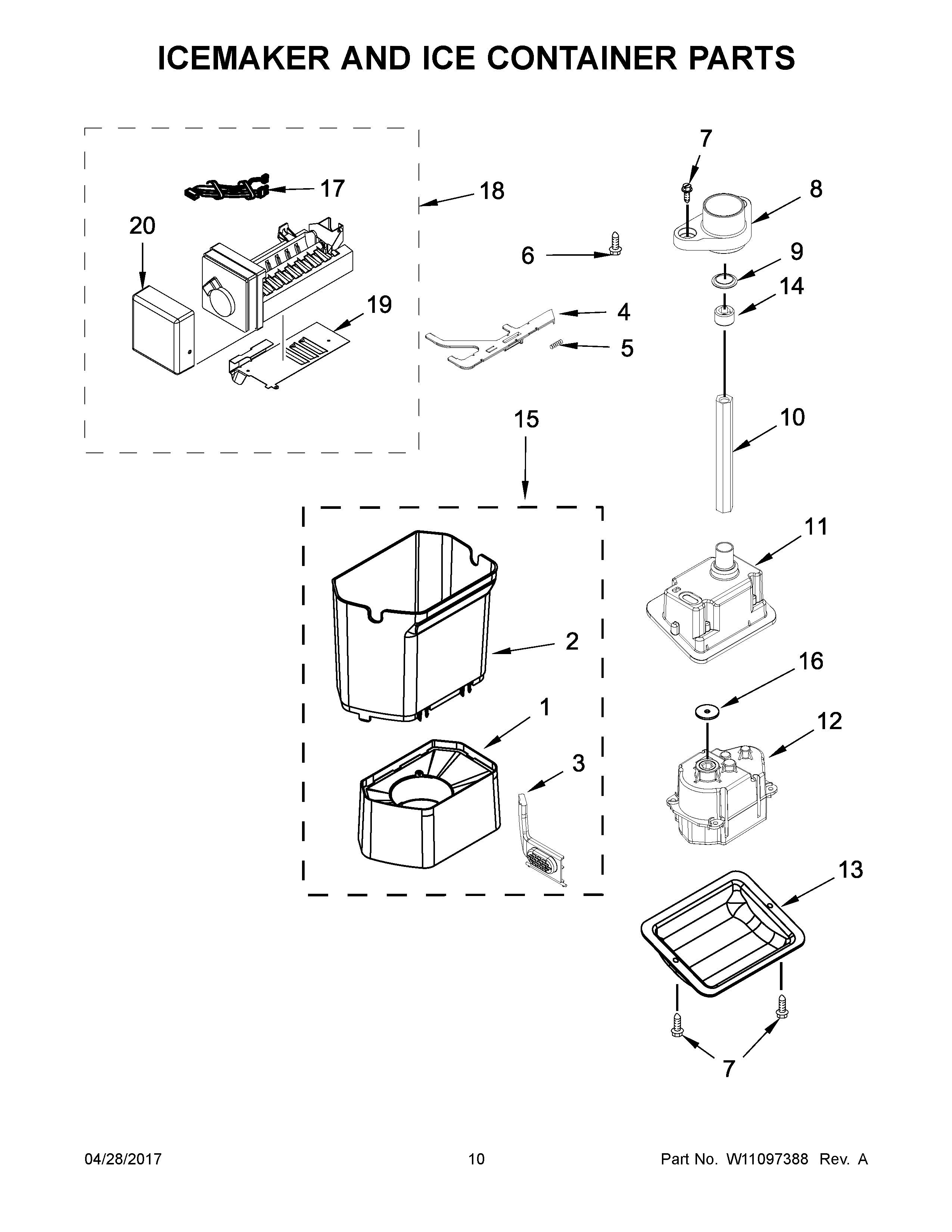

JS42SSDUDE01 06 – ICEMAKER AND ICE CONTAINER PARTS

JS42SSDUDE01 06 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

JS42SSDUDE01 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	BIN, CRUSHER
2	BIN, ICE
3	BUTTON, BIN
4	LATCH, BIN
5	MAY 2198608
6	MAY 2198671
7	Screw
8	CLIP, SHAFT
9	MAY 2198628
10	Drive Shaft
11	ENCLOSURE, MOTOR
12	MOTOR, DISPENSER
13	COVER, MOTOR
14	SLEEVE, COUPLING
15	ASSEMBLY, ICE CONTAINER
16	WASHER, RUBBER
17	MAY W10508659
18	COMPLETE ICEMAKER ASSEMBLY
19	BRACKET, ICEMAKER MOUNTING
20	COVER, ICEMAKER
