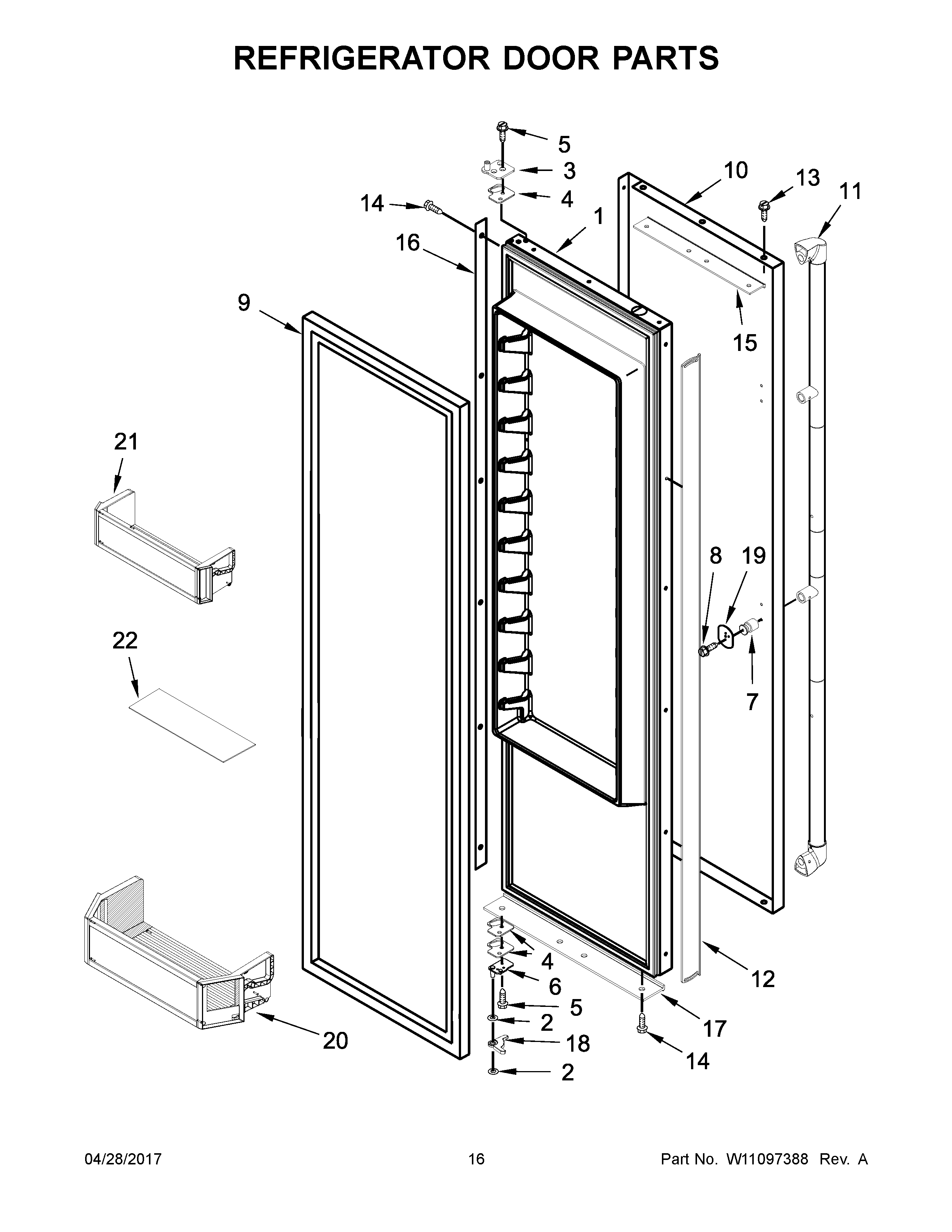

JS42SSDUDE01 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR
2WASHER
3ASSEMBLY, TOP HINGE
4Spacer-Door, Top & Bottom
5MAY W10162602
6Hinge Assembly, Bottom
7MOUNT, HANDLE
8Screw
9GASKET, DOOR (GREY)
10SKIN, DOOR
11HANDLE, DOOR
12SPACER, HANDLE SIDE DOOR
13SCREW
14Screw, 8-15 x .500 (Stainless Steel)
15SPACER, DOOR SKIN (TOP)
16SPACER, HINGE SIDE DOOR
17SPACER, DOOR SKIN BOTTOM
18MAY W10482554
19MAY W10127710
20BIN, GALLON DOOR
21BIN, SHALLOW DOOR
22MAT, DOOR BIN (SHALLOW)
22AMAT, DOOR BIN (GALLON)
