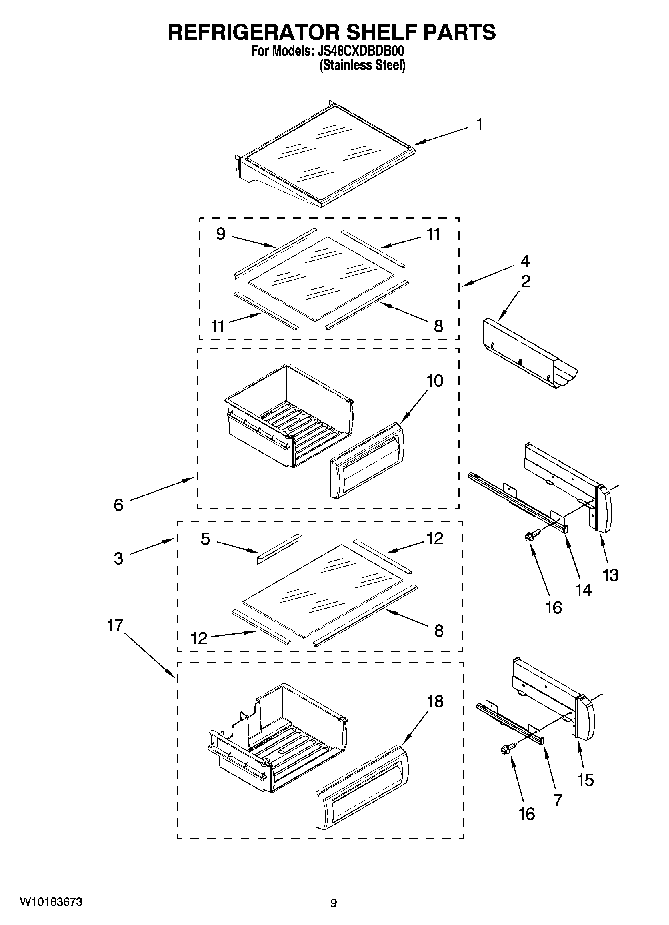

JS48CXDBDB00 07 – REFRIGERATOR SHELF PARTSadmin2025-04-26T09:14:03+00:00JS48CXDBDB00 07 – REFRIGERATOR SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Shelf Assy (4) |
| 2 | Rack, Wine |
| 3 | Meat Pan Cover Assembly |
| 4 | Crisper Cover Assembly |
| 5 | MAY 2257583 |
| 6 | MAY 2252413 |
| 7 | Slide, Meat Pan (Right Side) |
| 7 | Slide, Meat Pan (Left Side) |
| 9 | MAY 2256255 |
| 10 | MAY 2256249 |
| 11 | Trim, Glass Side Crisper Pan |
| 12 | MAY 2256250 |
| 13 | Spacer, Crisper (Right Side (2)) |
| 13 | Spacer, Crisper (Left Side (2)) |
| 14 | Slide, Crisper (Left Side) |
| 14 | Slide, Crisper (Right Side) |
| 15 | Spacer, Meat Pan (Left Side) |
| 15 | Spacer, Meat Pan (Right Side) |
| 16 | Screw (Right Side- (8-18 x 1.375)) |
| 16 | Screw |
| 17 | MAY 2256370 |
| 18 | Front, Meat Pan |
