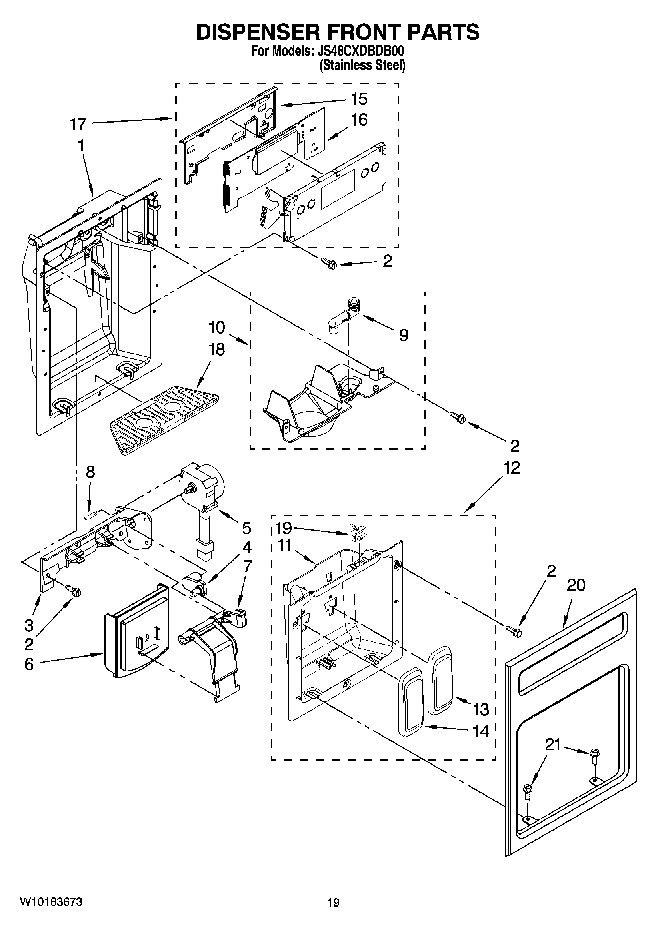

JS48CXDBDB00 12 – DISPENSER FRONT PARTS

Products

Position	Product
2	SCREW
3	MAY W10132946
4	MAY 2305242
5	MAY 2318021
6	MAY 2180353
7	MAY 2318020
8	MAY 4449745
9	ASSEMBLY, SPIGOT
10	Separator Assembly
12	MAY 2307675B
13	Water, Paddle Asy (For Black Model)
14	Ice, Paddle Asy (For Black Model)
15	Cover, Control
16	ASSEMBLY, UI CONTROL COVER
17	Electronic Control (Includes 15)
18	MAY 2318085B
19	LED Assembly
20	MAY 2307321B
21	SCREW
