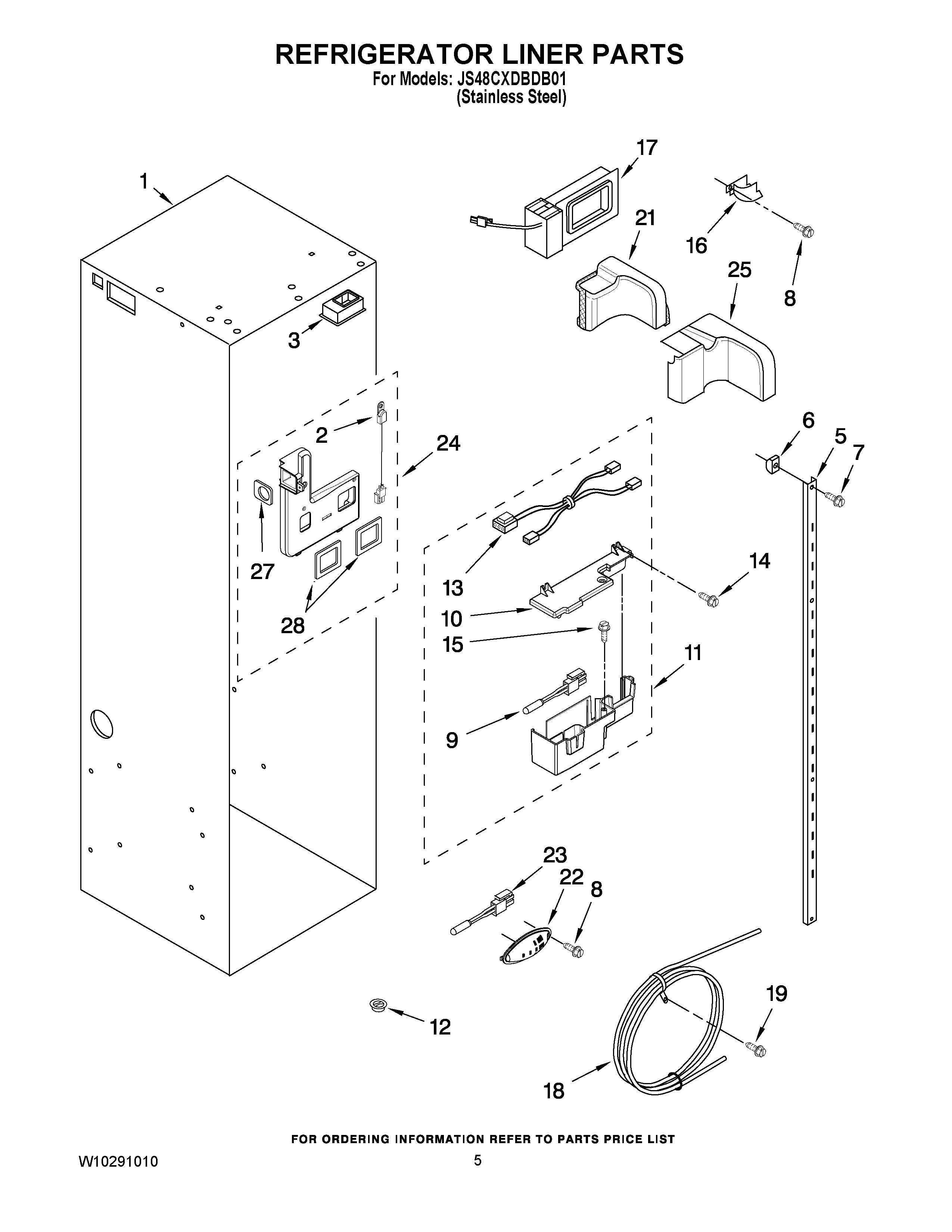

JS48CXDBDB01 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2306010
3	Air Duct
5	Ladder, Shelf (2)
6	Screw Support, Ladder (8)
7	SCREW
8	SCREW
9	MAY 2302937
10	Lid, Meat Pan Baffle
11	Baffle, Control Assembly
12	MAY 2171846
13	Jumper, Air Baffle
14	SCREW
15	SCREW
16	MAY 2003577
17	Air Baffle Assembly
18	MAY 2327509
19	Screw
21	Diffuser Assembly
22	MAY 2317105
23	MAY 2188820
24	MAY 2302992
25	Cover, Diffuser
27	MAY 2259412
28	Seal, Air Duct (Square Hole)
