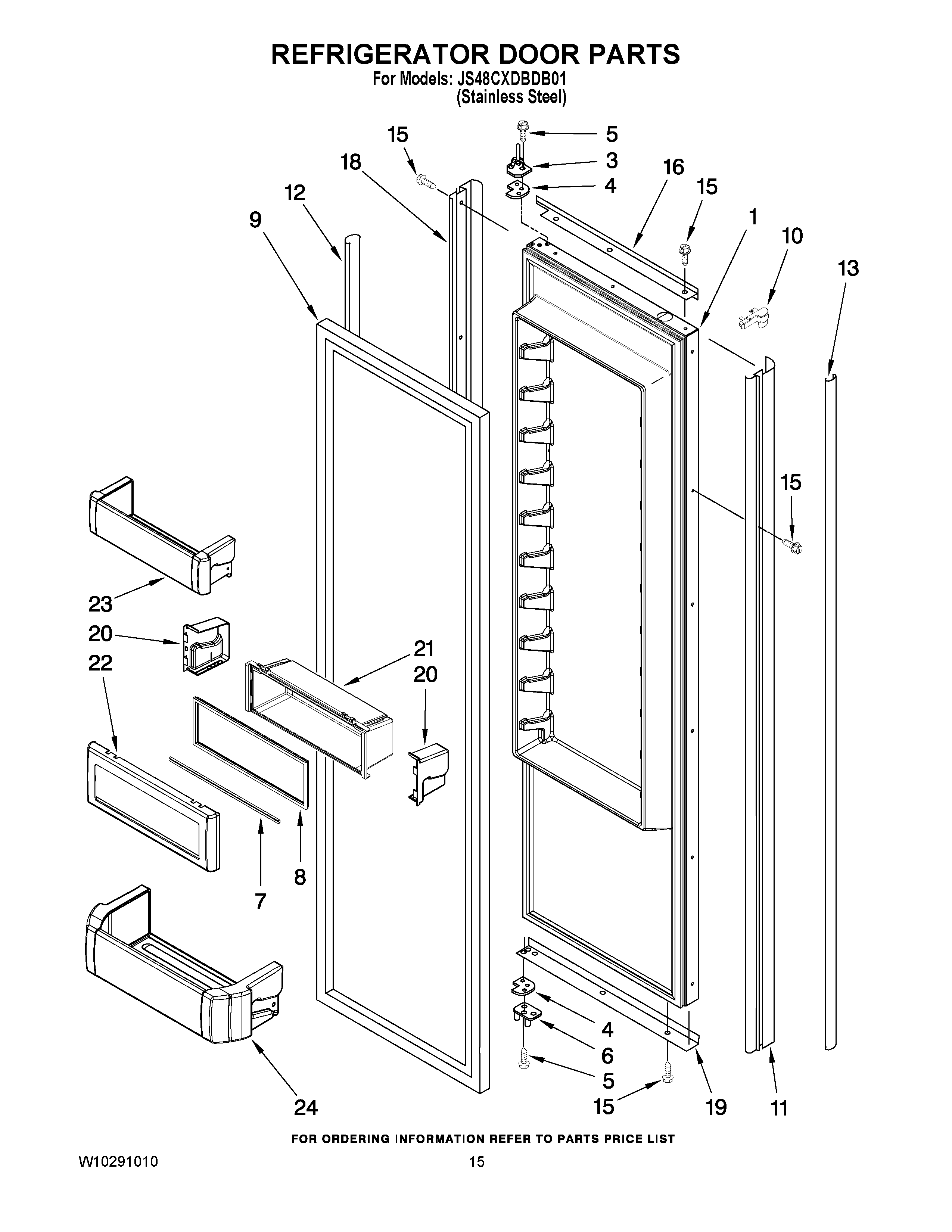

JS48CXDBDB01 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Item 9)
3	MAY 2252295B
4	Spacer-Door, Top & Bottom
5	MAY 489282
6	MAY 2252293B
7	MAY 2222797
8	MAY 2222983
9	MAY 2222812
10	MAY 2006273
11	Handle, Door (Black)
12	Cover, Trim (Hinge Side) (Black)
13	Cover, Trim (Handle Side) (Black)
15	Screw, 8-15 x .500 (Black)
16	MAY 2309487B
18	Trim-Door, Hinge Side (Black)
19	MAY 2309493B
20	End Cap (Left Side)
20	End Cap (Right Side)
21	MAY 2222923
22	MAY 2257617
23	Bin, Door (3)
24	Bin, Door
