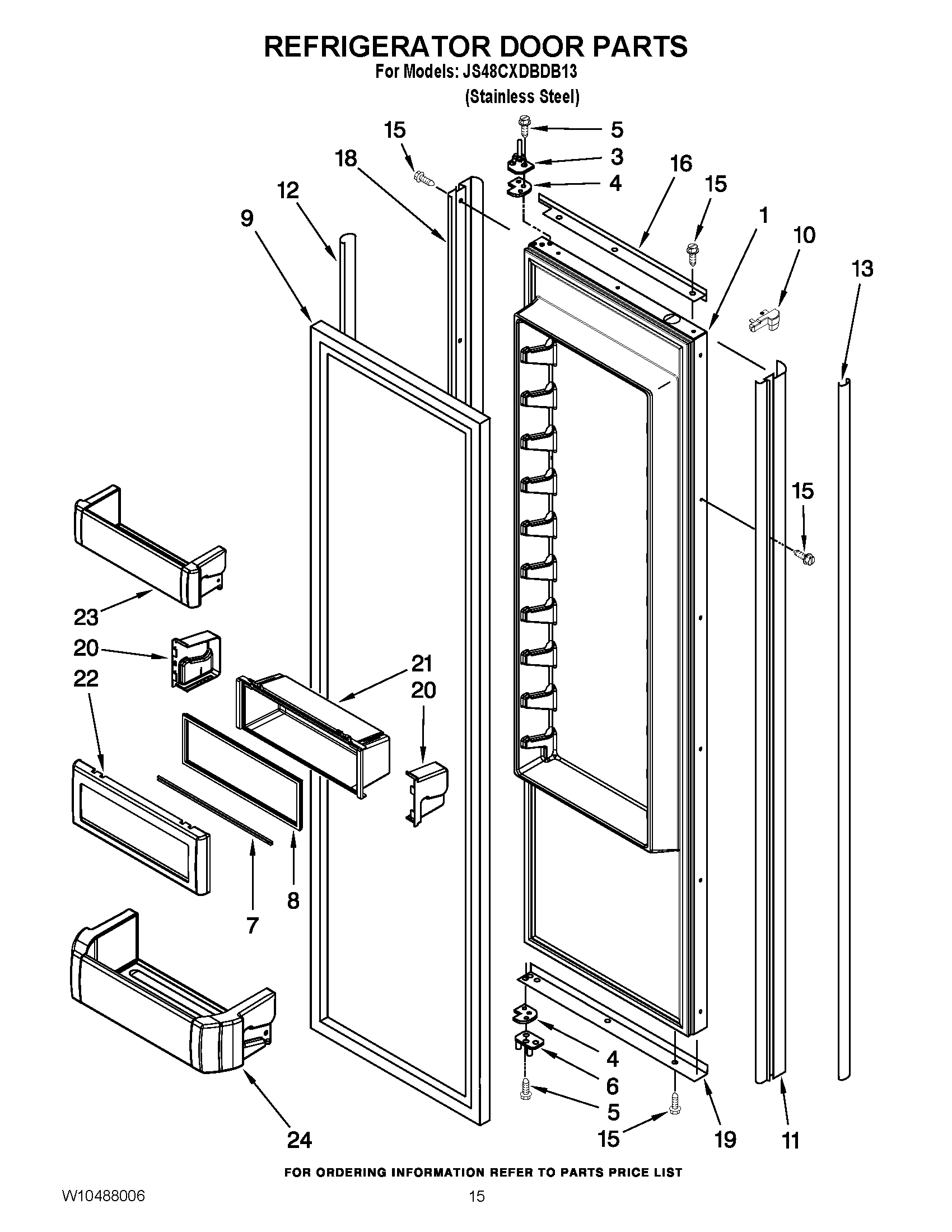

JS48CXDBDB13 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Item 9)
3	MAY 2252295B
4	Spacer-Door, Top & Bottom
5	MAY W10162602
6	MAY 2252293B
7	MAY 2222797
8	MAY 2222983
9	MAY 2222812
10	MAY 2006273
11	Handle, Door (Black)
12	Cover, Trim (Hinge Side) (Black)
13	Cover, Trim (Handle Side) (Black)
15	Screw, 8-15 x .500 (Black)
16	MAY 2309487B
18	Trim-Door, Hinge Side (Black)
19	MAY 2309493B
20	END CAP (LEFT HAND)
20	END CAP (RIGHT HAND)
21	MAY W10323037
22	MAY 2257617
23	BIN, DOOR
24	BIN, DOOR
