JS48CXDBDB13 11 – FREEZER DOOR PARTS – Aparts

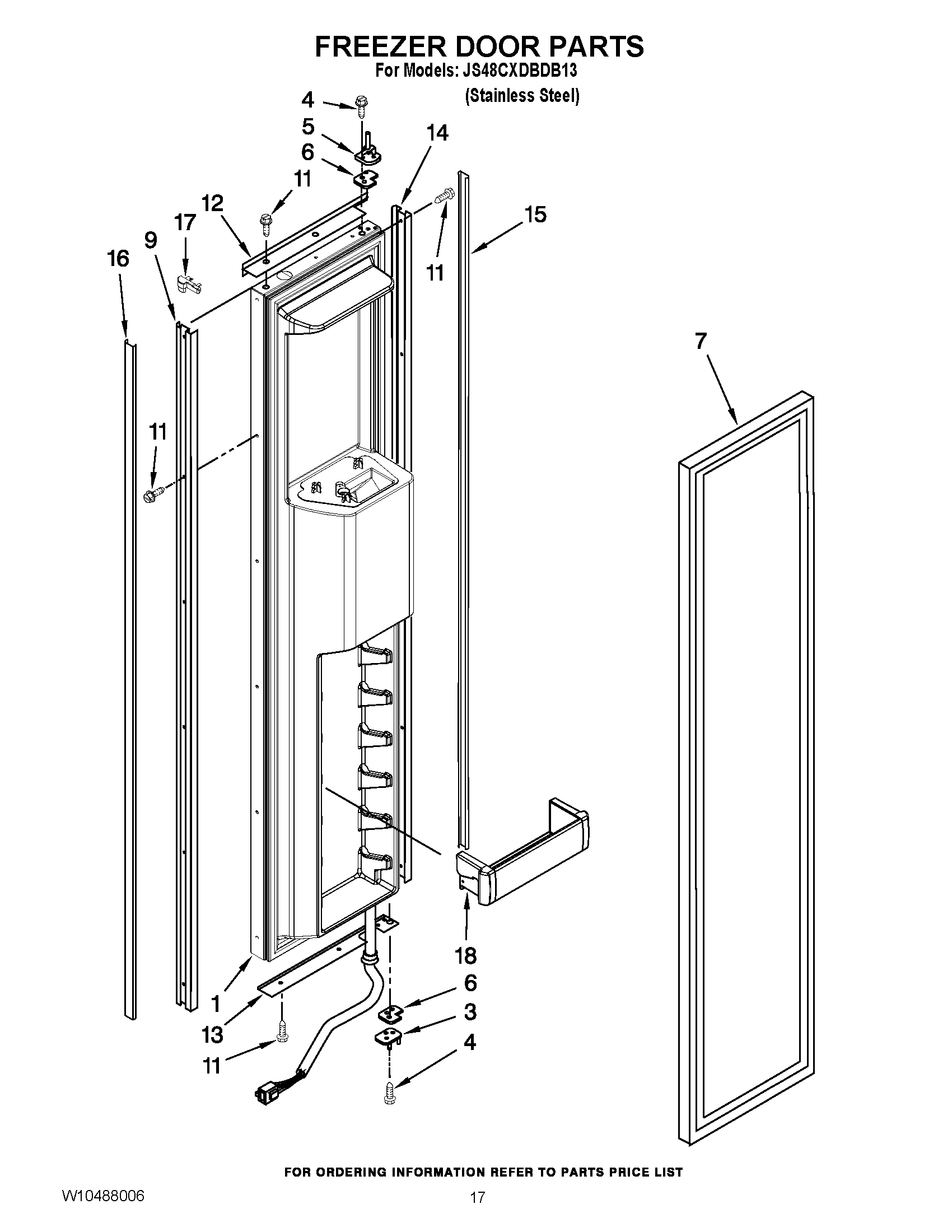

JS48CXDBDB13 11 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.7)
3	MAY 2252294B
4	MAY W10162602
5	MAY 2252295B
6	Spacer-Door, Top & Bottom
7	MAY 2222810
9	Handle, Door (Black)
11	Screw, 8-15 x .500 (Black)
12	MAY 2309490B
13	MAY 2309496B
14	Trim-Door, Hinge Side (Black)
15	Cover, Trim (Hinge Side) (Black)
16	Cover, Trim (Handle Side) (Black)
17	MAY 2006273
18	BIN, DOOR
