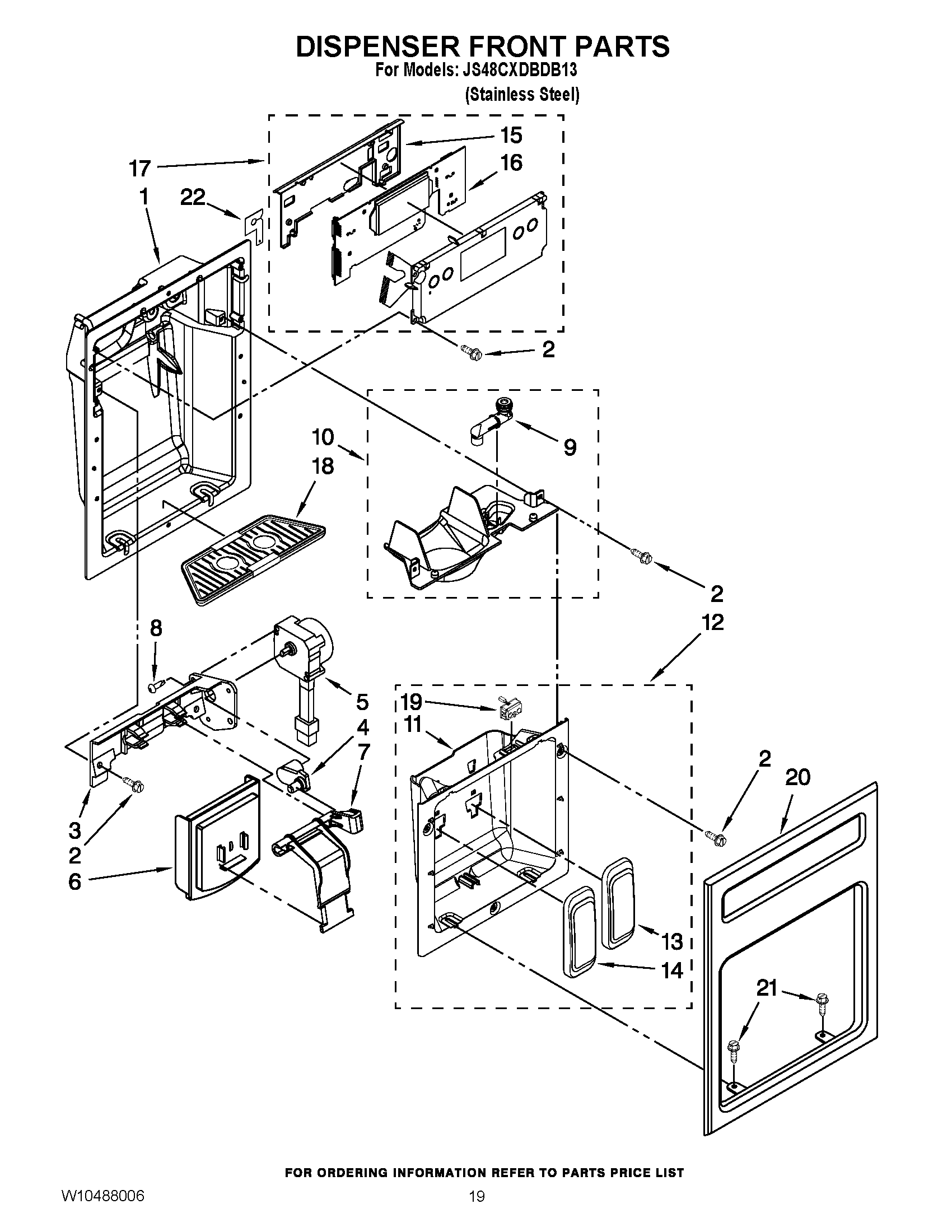

JS48CXDBDB13 12 – DISPENSER FRONT PARTS

Products

PositionProduct
2SCREW
3MAY W10132946
4MAY 2305242
5MAY W10205979
6MAY 2180353
7MAY 2318020
8MAY 4449745
9ASSEMBLY, SPIGOT
10Separator Assembly
11LINER (NOT A SERVICEABLE PART)
12HOUSING ASSEMBLY (BLACK)
13Water, Paddle Asy (For Aluminum Model)
14Ice, Paddle Asy (For Aluminum Model)
15Cover, Control
16ASSEMBLY, UI CONTROL COVER
17Electronic Control (Includes 15)
18MAY 2318085B
19LED Assembly
20MAY 2307321B
21SCREW
22MAY 2305447
