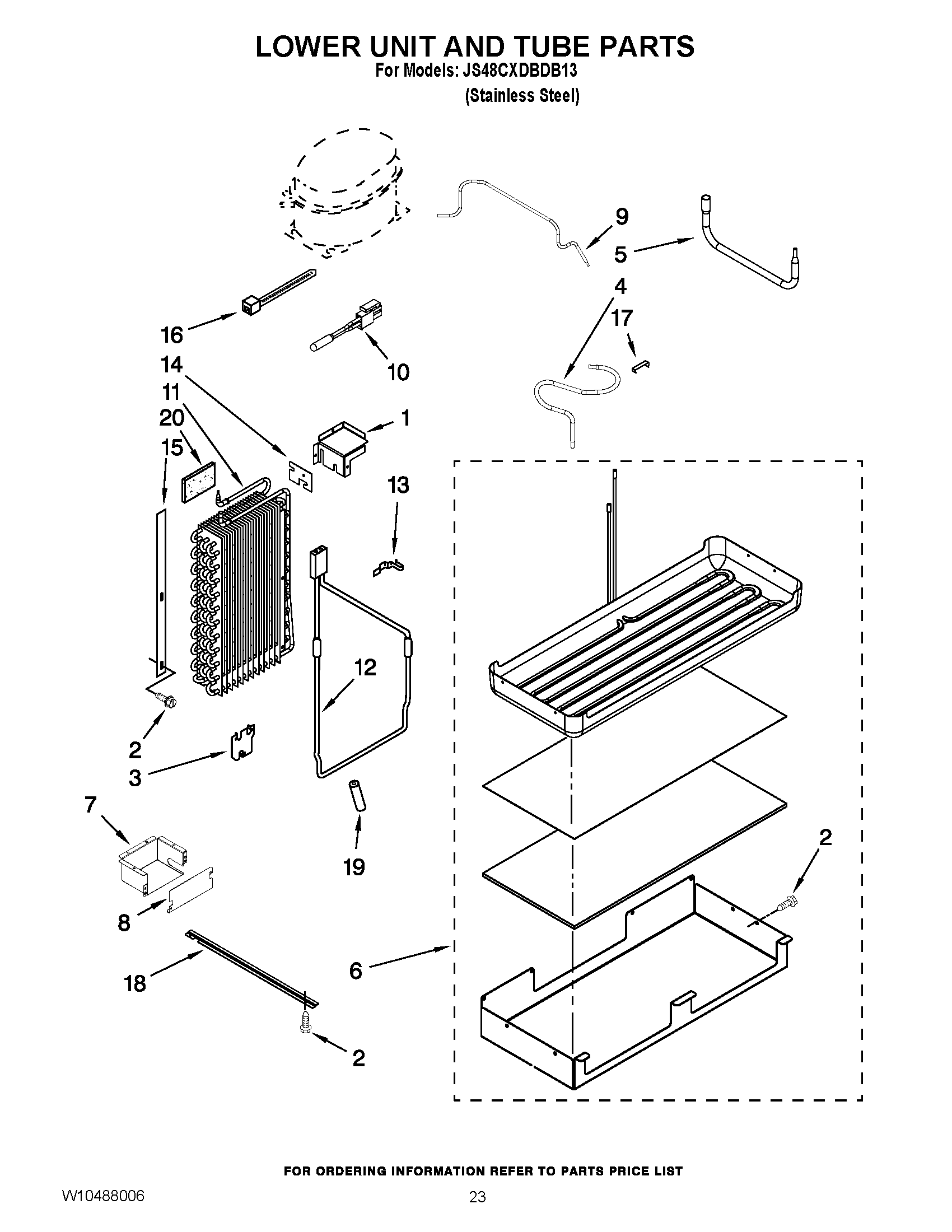

JS48CXDBDB13 14 – LOWER UNIT AND TUBE PARTS

Written by

Products

Position	Product
1	Bracket Assembly, Air Return
2	SCREW
3	Bracket
4	SUCTION TUBE
5	TUBE, CONNECT (DRIER/RESTRICTOR)
6	MAY W10281063
7	MAY W10309012
8	MAY W10321048
9	MAY W10412485
10	MAY 2188820
11	MAY W10427993
12	MAY W10140162
13	MAY 1113048
14	Cover Seal, Evaporator Tubes
15	MAY W10432308
16	MAY 2155774
17	MAY W10169509
18	MAY 2320554
19	Dampener
20	SEALER, INSULATION
