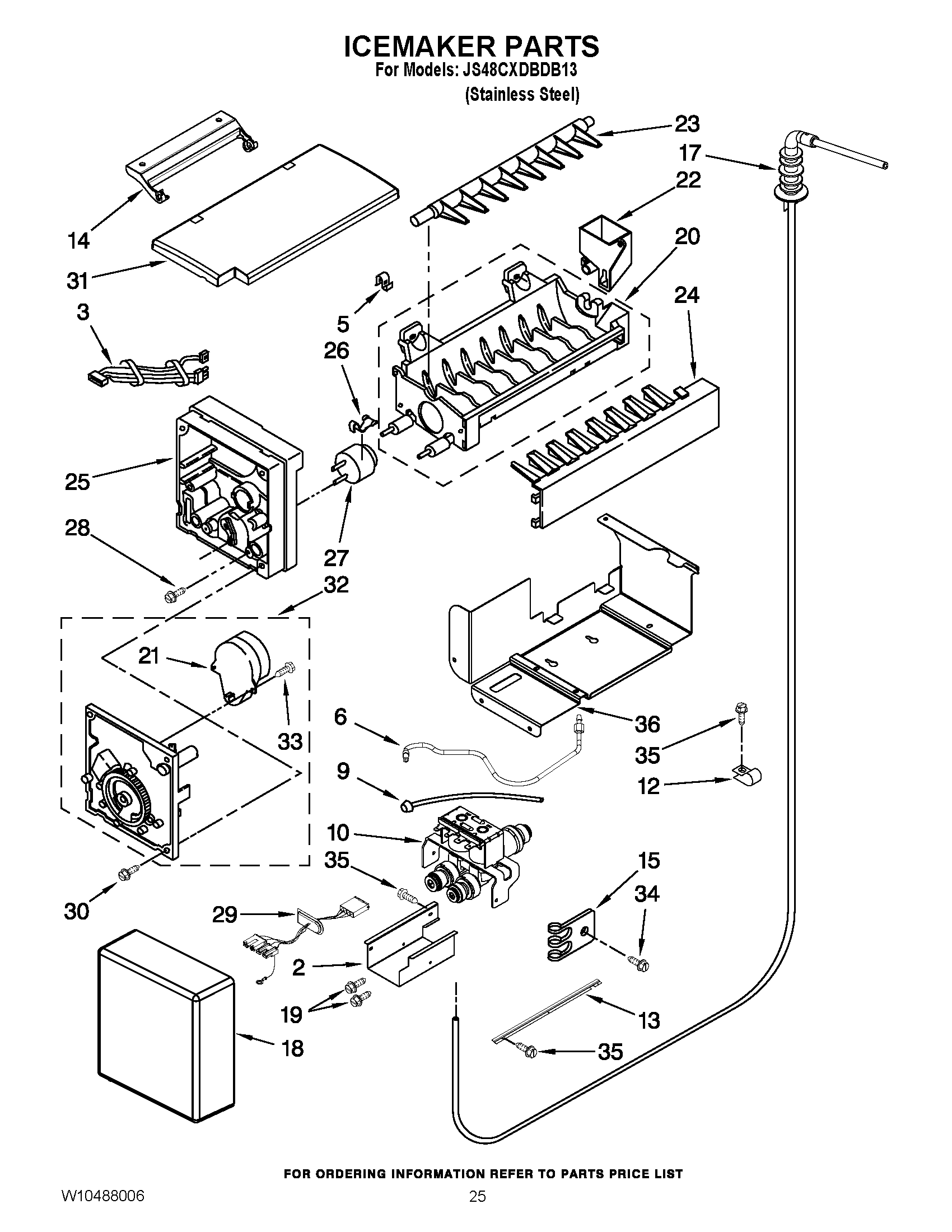

JS48CXDBDB13 15 – ICEMAKER PARTSadmin2025-04-26T09:13:42+00:00JS48CXDBDB13 15 – ICEMAKER PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE |
| NI | ACCESSORY PARTS, CLEANER, STAINLESS STEEL |
| NI | MAY REFDEODOR |
| NI | ACCESSORIES, WIPES, STAINLESS STEEL CLEANING |
| 2 | Shield, Valve |
| 3 | MAY 2310191 |
| 5 | Clip |
| 6 | MAY W10296807 |
| 9 | MAY 2317912 |
| 10 | Valve, Solenoid |
| 12 | MAY 2221070 |
| 13 | MAY 2320559 |
| 14 | Bracket, Ice Maker Cover |
| 15 | Clip, Tube |
| 17 | MAY W10357286 |
| 18 | COVER |
| 19 | SCREW |
| 20 | MAY W10122527 |
| 21 | LINER (NOT A SERVICEABLE PART) |
| 22 | MAY W10272168 |
| 23 | MAY 627843 |
| 24 | STRIPPER, ICE |
| 25 | MAY 2194712 |
| 26 | MAY 2315522 |
| 27 | MAY W10290336 |
| 28 | MAY 8533917 |
| 29 | WIRE ASSEMBLY, SMART VALVE |
| 30 | MAY 489276 |
| 31 | MAY W10151256 |
| 32 | MODULE ASSEMBLY (INCLUDES ITEM 24) |
| 33 | MAY 489136 |
| 34 | MAY W10141645 |
| 35 | SCREW |
| 36 | MAY 2252228 |
| 100 | Complete Icemaker Assembly |
