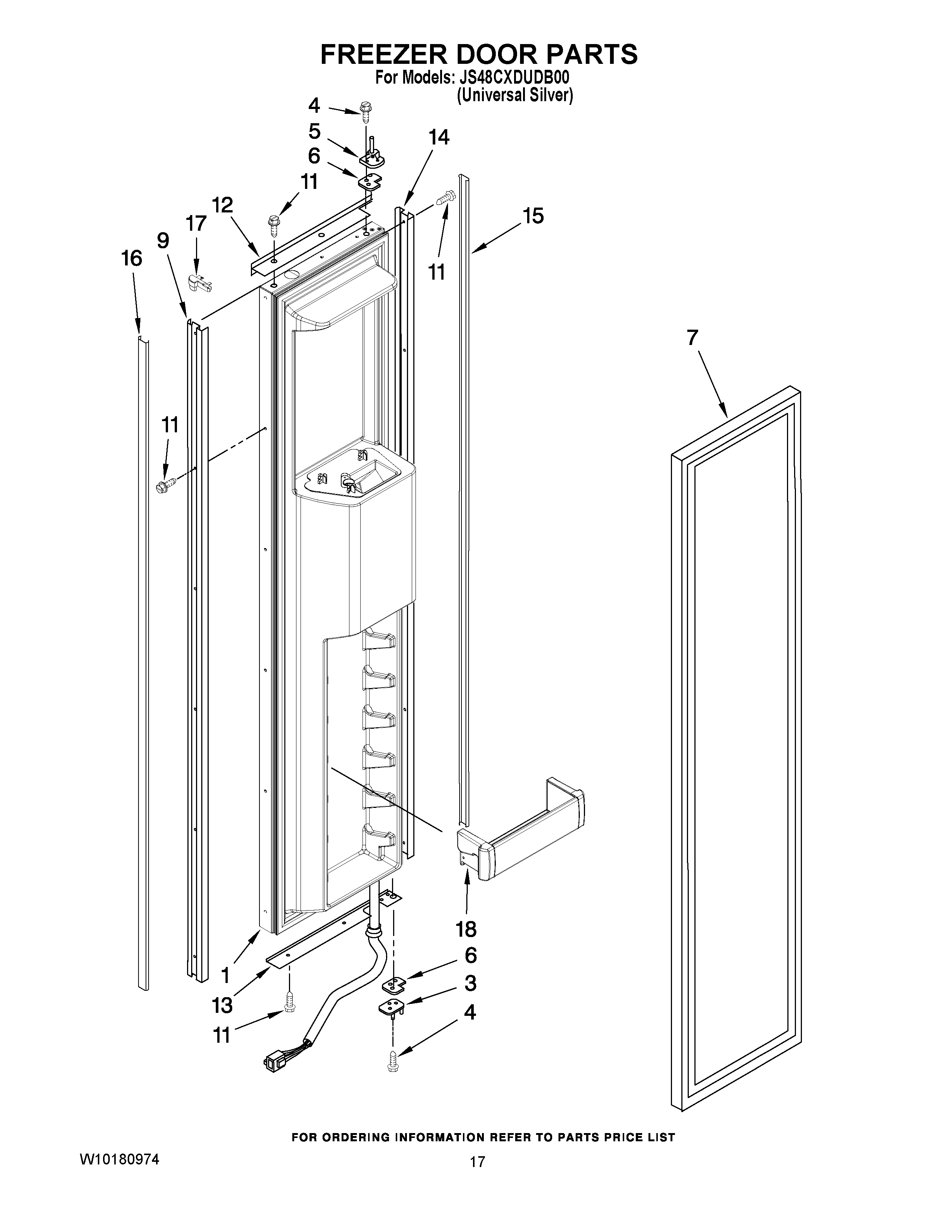

JS48CXDUDB00 11 – FREEZER DOOR PARTS

JS48CXDUDB00 11 – FREEZER DOOR PARTS

Written by

in

JS48CXDUDB00 11 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.7) (UNIVERSAL SILVER)
3Hinge, Bottom (Chrome)
4MAY 489282
5Hinge Assy, Top (Chrome)
6Spacer-Door, Top & Bottom
7MAY 2222810
9Trim-Door, Handle Side (Stainless Steel)
11Screw, 8-15 x .500 (Stainless Steel)
12Trim-Door, Top
13Trim-Door, Btm
14Trim-Door, Hinge Side (Stainless Steel)
15Trim, Screw Cover Hinge Side (Stainless Steel)
16Trim, Screw Cover Handle Side (Stainless Steel)
17Trim, Corner (Chrome)
17MAY 2006273
18Bin, Door (6)
