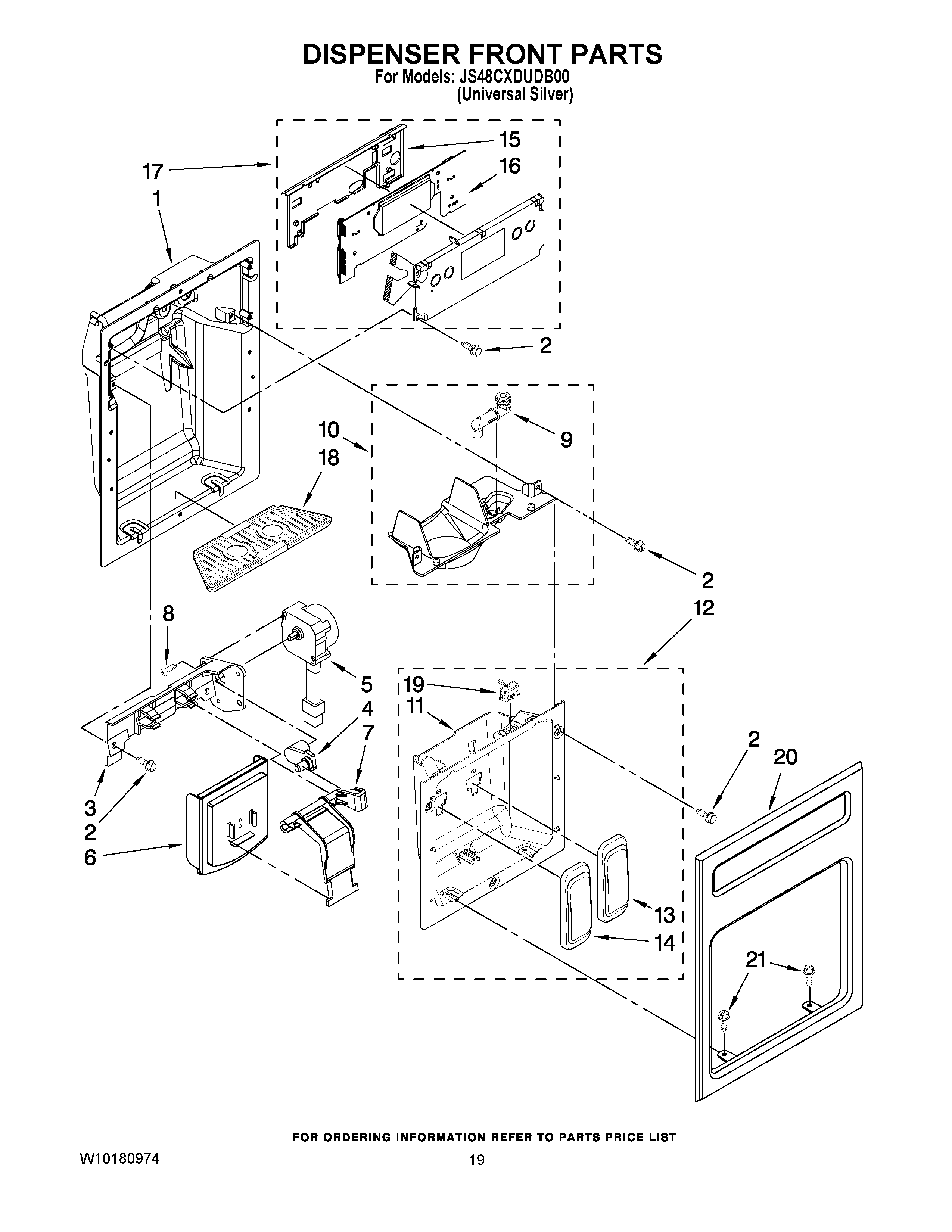

JS48CXDUDB00 12 – DISPENSER FRONT PARTS

JS48CXDUDB00 12 – DISPENSER FRONT PARTS

Written by

in

JS48CXDUDB00 12 – DISPENSER FRONT PARTS

Products

PositionProduct
2SCREW
3MAY W10132946
4MAY 2305242
5MAY 2318021
6MAY 2180353
7MAY 2318020
8MAY 4449745
9ASSEMBLY, SPIGOT
10Separator Assembly
11LINER (NOT A SERVICEABLE PART)
12Housing Assembly (Universal Silver)
13Water, Paddle Asy (For Aluminum Model)
14Ice, Paddle Asy (For Aluminum Model)
15Cover, Control
16ASSEMBLY, UI CONTROL COVER
17Electronic Control (Includes 15)
18MAY 2318085US
19LED Assembly
20MAY 2307321US
21SCREW
