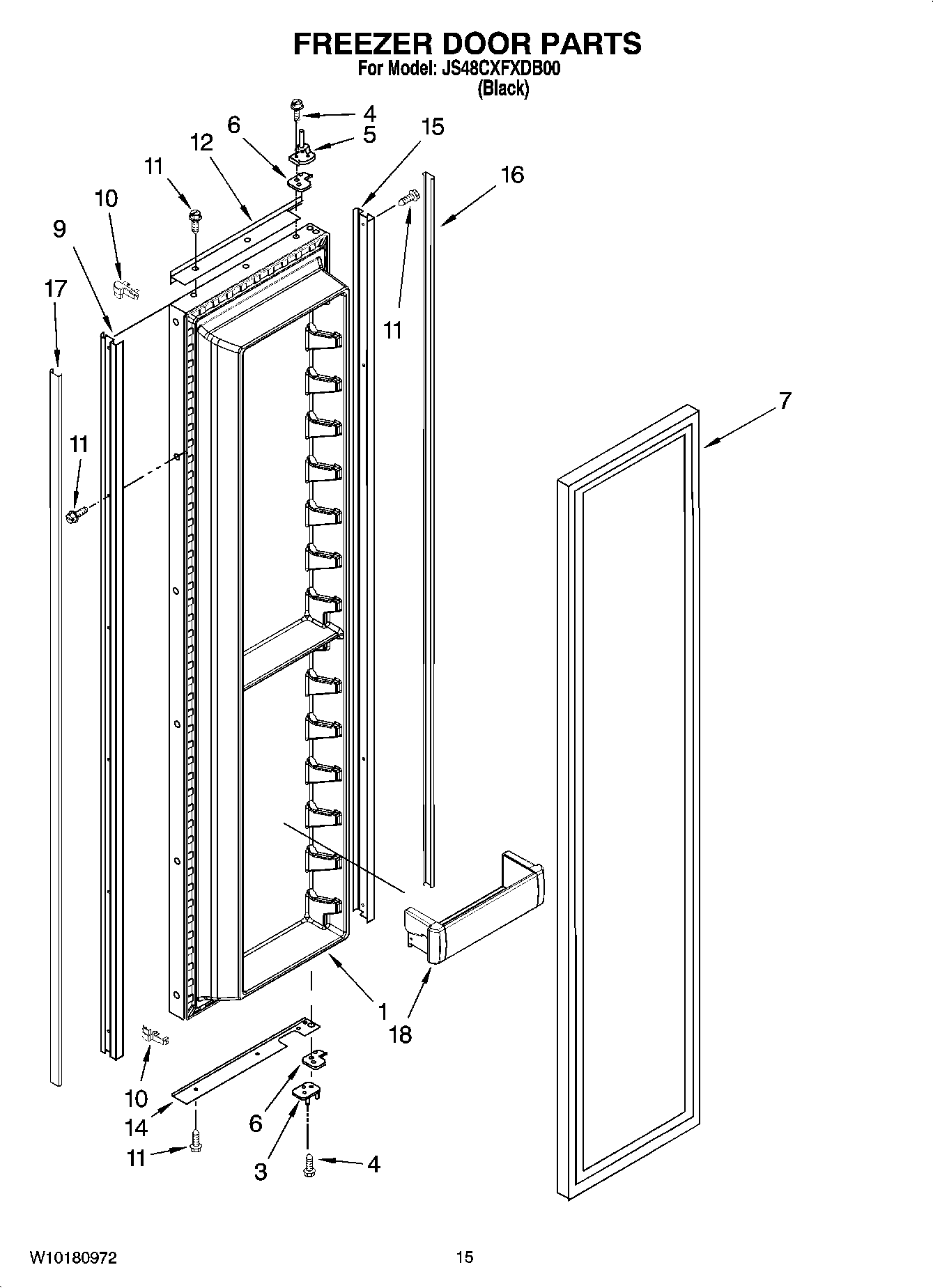

JS48CXFXDB00 10 – FREEZER DOOR PARTSadmin2025-04-26T09:13:39+00:00JS48CXFXDB00 10 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes 14) |
| 3 | Hinge, Bottom (Chrome) |
| 4 | MAY 489282 |
| 5 | Hinge Assy, Top (Chrome) |
| 6 | Spacer-Door, Top & Bottom |
| 7 | MAY 2222810 |
| 9 | Trim-Door, Handle Side (Stainless Steel) |
| 10 | Trim, Corner (Chrome) |
| 11 | Screw, 8-15 x .500 (Stainless Steel) |
| 12 | Trim-Door, Top |
| 14 | Trim-Door, Btm |
| 15 | Trim-Door, Hinge Side (Stainless Steel) |
| 16 | Trim, Screw Cover Hinge Side (Stainless Steel) |
| 17 | Trim, Screw Cover Handle Side (Stainless Steel) |
| 18 | Bin, Door (6) |
