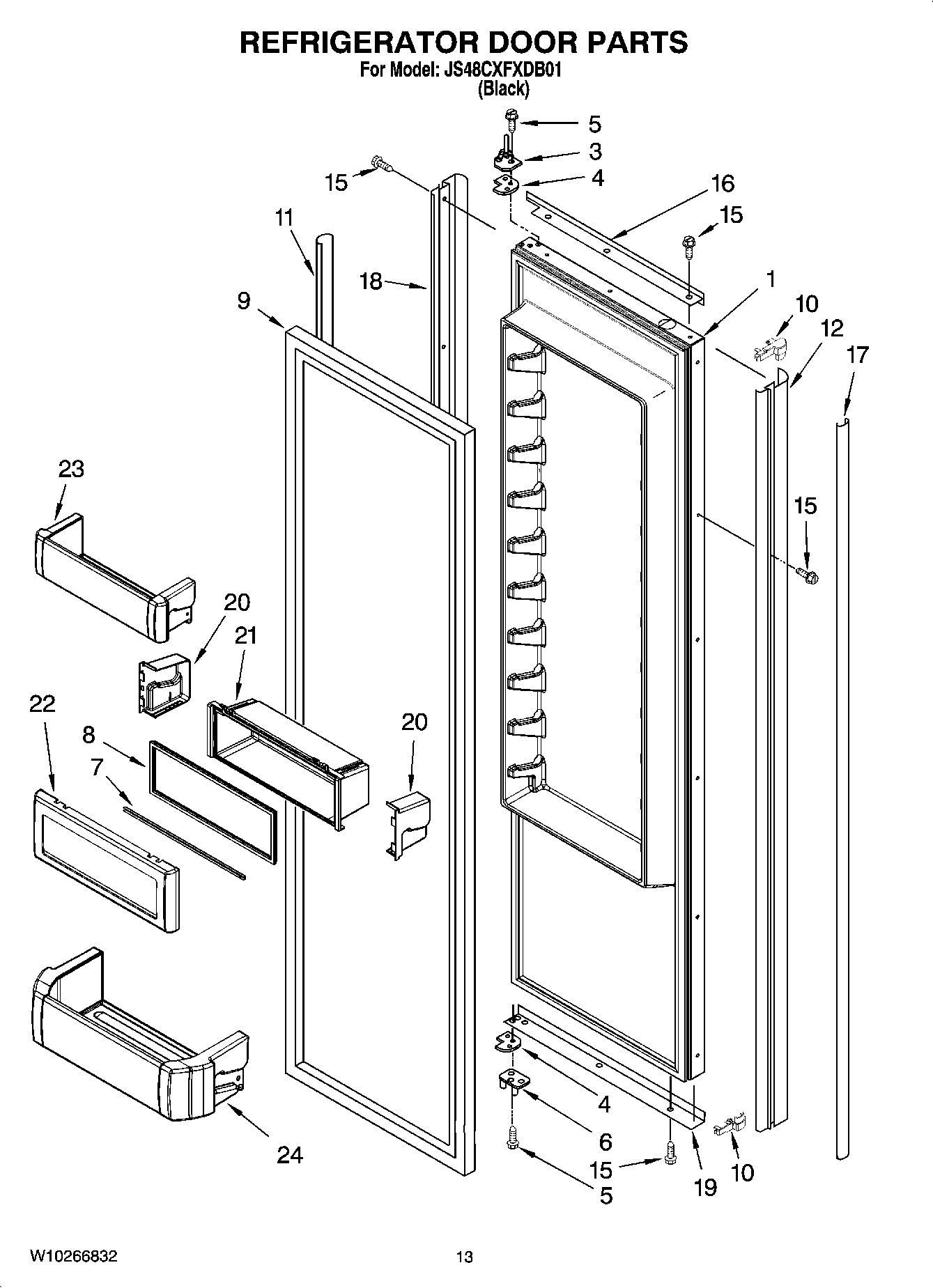

JS48CXFXDB01 09 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:14:21+00:00JS48CXFXDB01 09 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (Includes Item 9) |
| 3 | Hinge Assy, Top (Chrome) |
| 4 | Spacer-Door, Top & Bottom |
| 5 | MAY W10162602 |
| 6 | Hinge Assy, Btm (Chrome) |
| 7 | MAY 2222797 |
| 8 | MAY 2222983 |
| 9 | MAY 2222812 |
| 10 | Trim, Corner (Chrome) |
| 11 | Trim, Screw Cover Hinge Side (Stainless Steel) |
| 12 | Trim-Door, Handle Side (Stainless Steel) |
| 15 | Screw, 8-15 x .500 (Stainless Steel) |
| 16 | Trim-Door, Top |
| 17 | Trim, Screw Cover Handle Side (Stainless Steel) |
| 18 | Trim-Door, Hinge Side (Stainless Steel) |
| 19 | Trim-Door, Btm End Cap |
| 20 | End Cap (Right Side) |
| 20 | End Cap (Left Side) |
| 21 | MAY 2222923 |
| 22 | MAY 2257617 |
| 23 | Bin, Door (3) |
| 24 | Bin, Door |
