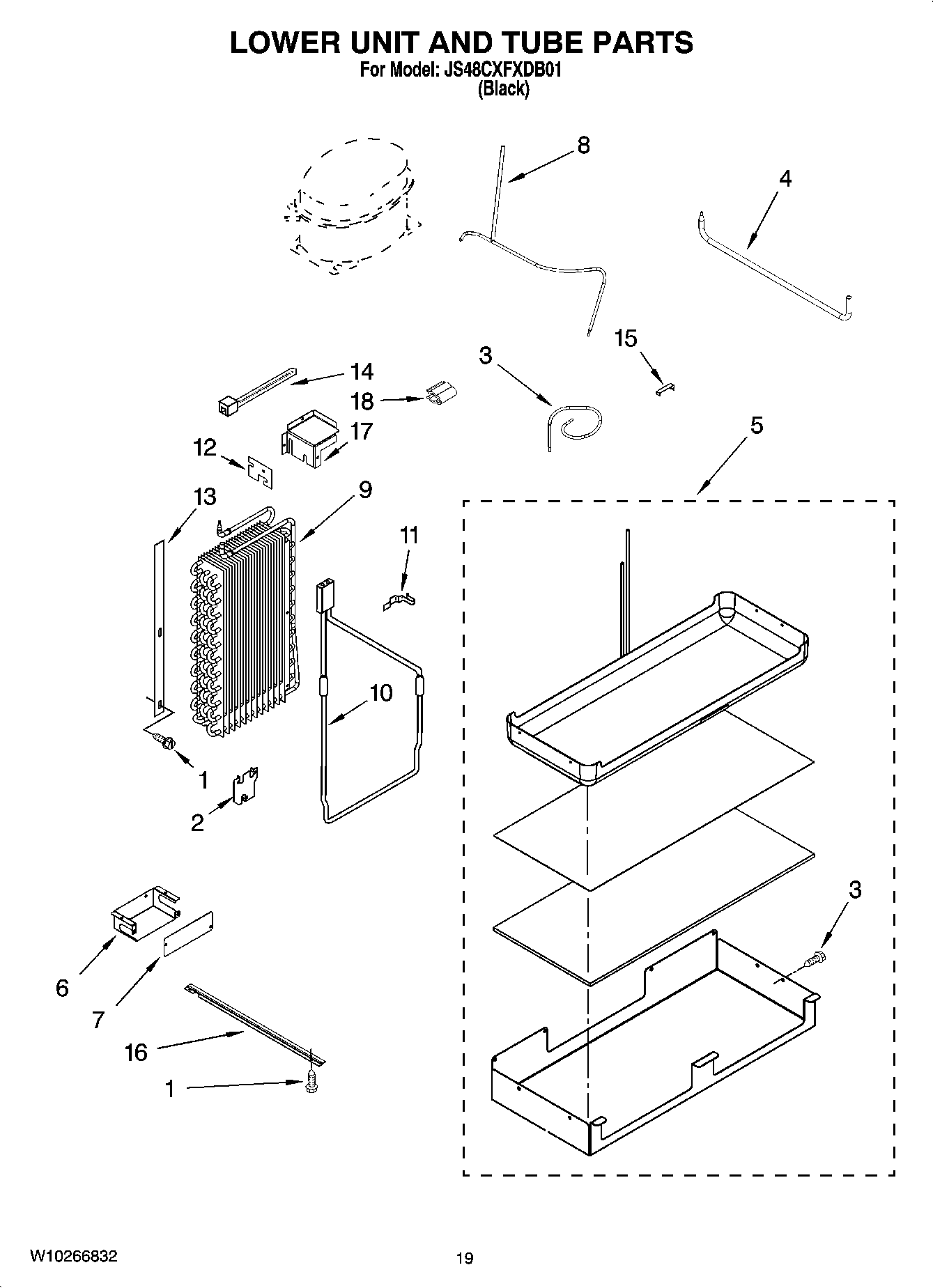

JS48CXFXDB01 12 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	SCREW
2	Bracket
3	MAY 2309076
4	Tube, Connect (Drier/Restrictor)
5	Drain Pan Assy.
6	MAY W10151288
7	MAY W10153595
8	MAY W10121374
9	MAY W10205102
10	MAY W10140162
11	MAY 1113048
12	Cover Seal, Evaporator Tubes
13	MAY 2220832
14	Wire Tie
15	MAY W10169509
16	MAY 2320554
17	Bracket Assembly, Air Return
18	Clip, Evaporator Tube
