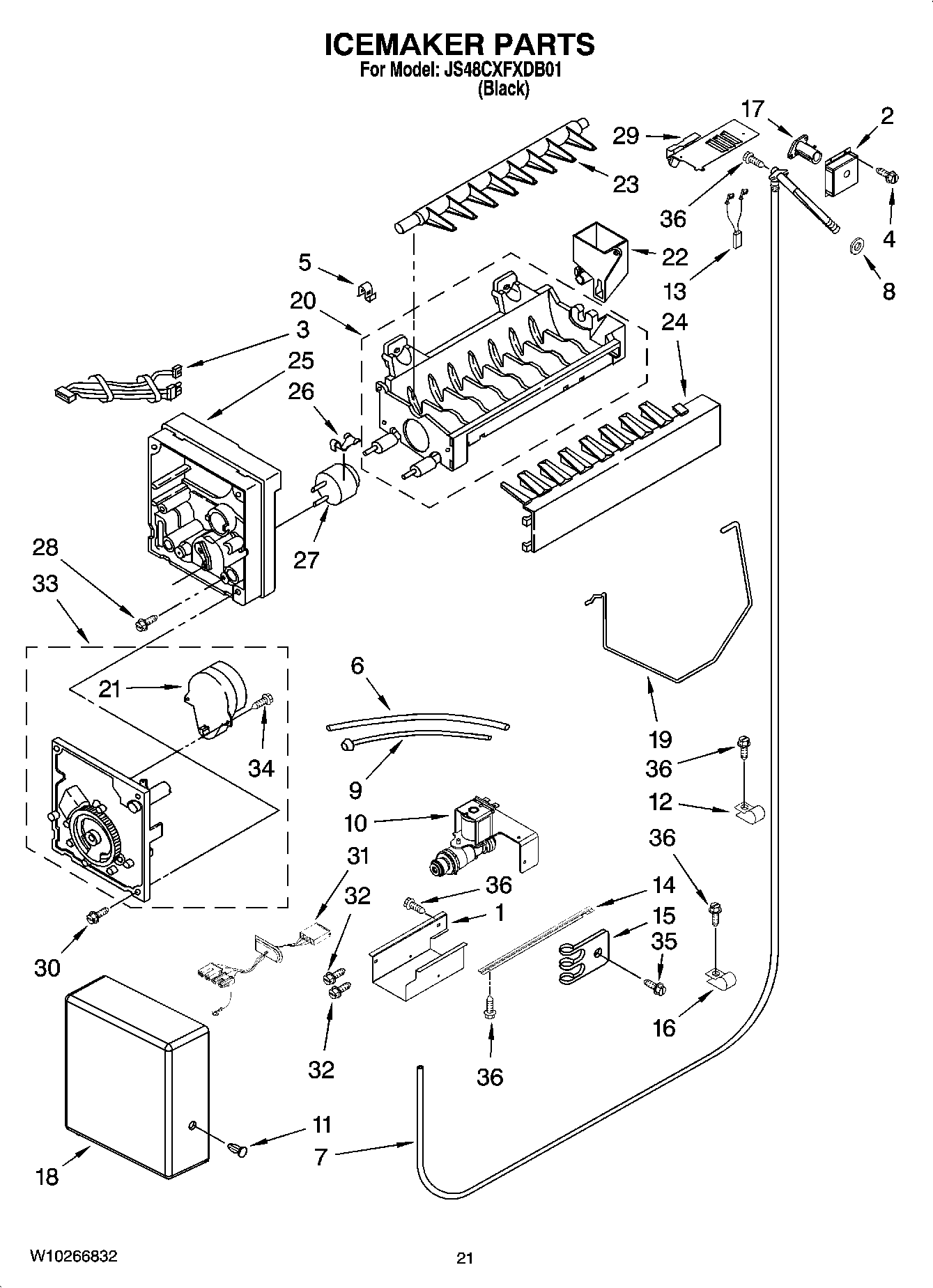

JS48CXFXDB01 13 – ICEMAKER PARTS

Products

Position	Product
NI	MAY 8537055
1	MAY W10129653
2	MAY 2259064
3	Wire Assembly, Icemaker
4	SCREW
5	Clip
6	MAY W10174395
7	MAY 2314048
8	Seal
9	MAY 2317912
10	MAY 2307650
11	Fastener, Snap-In
12	MAY 2221070
13	Jumper, Fill Tube Heater
14	MAY 2320559
15	Clamp, Nylon Valve
16	Clamp, Nylon
17	MAY 2221240
18	MAY 2257538
19	MAY 2313990
20	MAY W10122527
21	MAY 626683
22	Cup, Fill
23	MAY 627843
24	MAY 2182124
25	Support & Motor Assembly
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	MAY 8533917
29	MAY 2221231
30	MAY 489276
31	MAY W10139195
32	SCREW
33	Module Assembly (Includes Items 23 and 24)
34	MAY 489136
35	Screw (3)
36	SCREW
100	MAY 2320638
