JS48FBFXFA 08 – ICE MAKER

JS48FBFXFA 08 – ICE MAKER

Written by

in

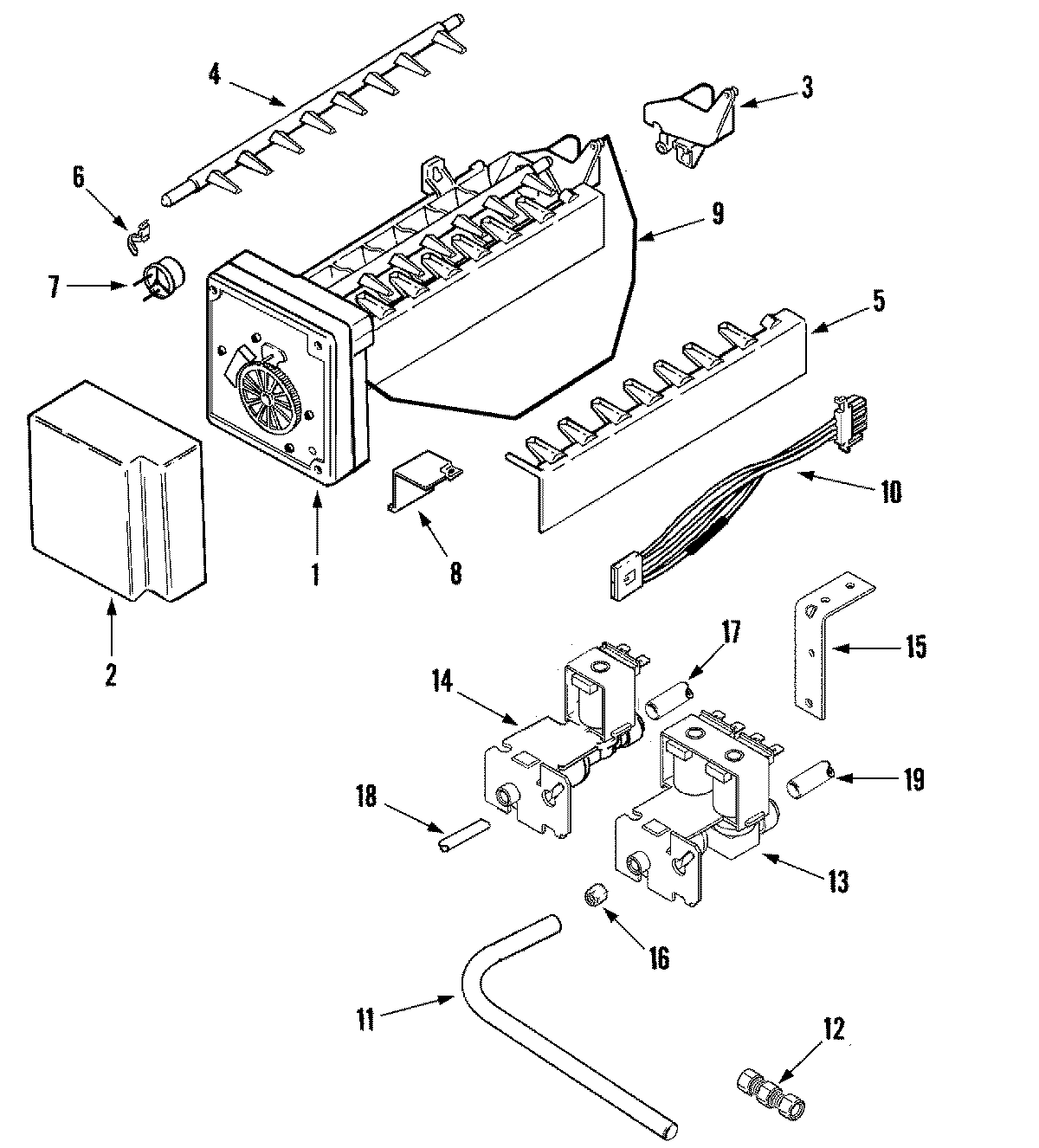

JS48FBFXFA 08 – ICE MAKER

Products

PositionProduct
1MAY 67001557
2MAY 67001486
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2315522 Whirlpool Refrigerator Clip
7WP627985 Whirlpool Icemaker Cycling Thermostat
7MAY 95093-1
8MAY 95108-1
8BRACKET, MODULE & HEATER
9W11342242 Whirlpool Refrigerator Ice Level Arm
10MAY 67001487
11MAY 67001484
12WPW10296793A Whirlpool Refrigerator Connector
13MAY 67001478
14MAY 67001479
15MAY 67001480
15MAY 61002819
16MAY 67001485
17WPM0114003 Whirlpool Microwave Speed Clip Clamp
17MAY 67001481
18MAY 67001482
19MAY 67001483
