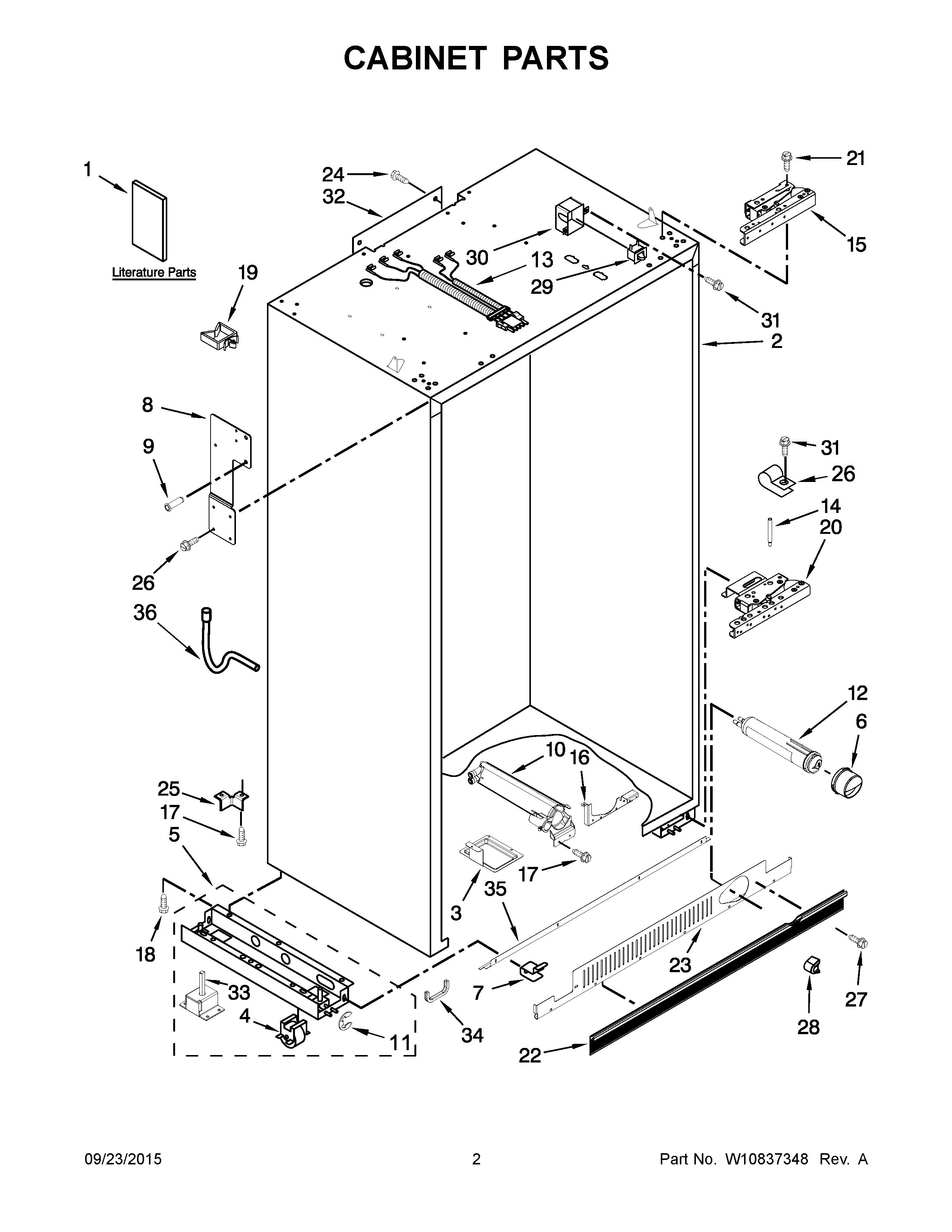

JS48NXFXDE00 02 – CABINET PARTS

Products

Position	Product
1D	INSTALLATION INSTRUCTIONS
1B	MAY W10785744
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
1C	MAY W10785745
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	CAP, WATER FILTER (BLACK)
7	Mounting Stud, Grille
8A	MAY W10714146
8	MAY W10714143
9	Nutsert (4)
10	MAY W10121140
11	Ring, Retainer
12	Filter, Water
13	ASSEMBLY, LIGHT SWITCH WIRE
14	Pin-Stop, Door
15	HINGE (TOP) LEFT HAND (GREY)
15A	HINGE (TOP) RIGHT HAND (GREY)
16	MAY W10674648
17	MAY W10001250
18	SCREW
19	Wire Clip (5)
20	HINGE (BOTTOM) LEFT HAND (GREY)
20A	HINGE (BOTTOM) RIGHT HAND (GREY)
21	Screw 1/4-20 x 5/8
22	SKIRT-GRILLE, BOTTOM
23	GRILLE BOTTOM, FRONT
24	MAY 1157158
25	Bracket, Support Base (Rear) (2)
26	MAY 549193
27	MAY W10005050
28	Button, Filter (Black)
29	SWITCH, LIGHT
30	COVER, SWITCH (LH)
30A	COVER, SWITCH (RH)
31	Screw
32	Cover, Rear
33	LEVELER ASSY
34	GROMMET, CROSSOVERTUBE
35	TRIM, TOP GRILLE
36	MAY 2314064
