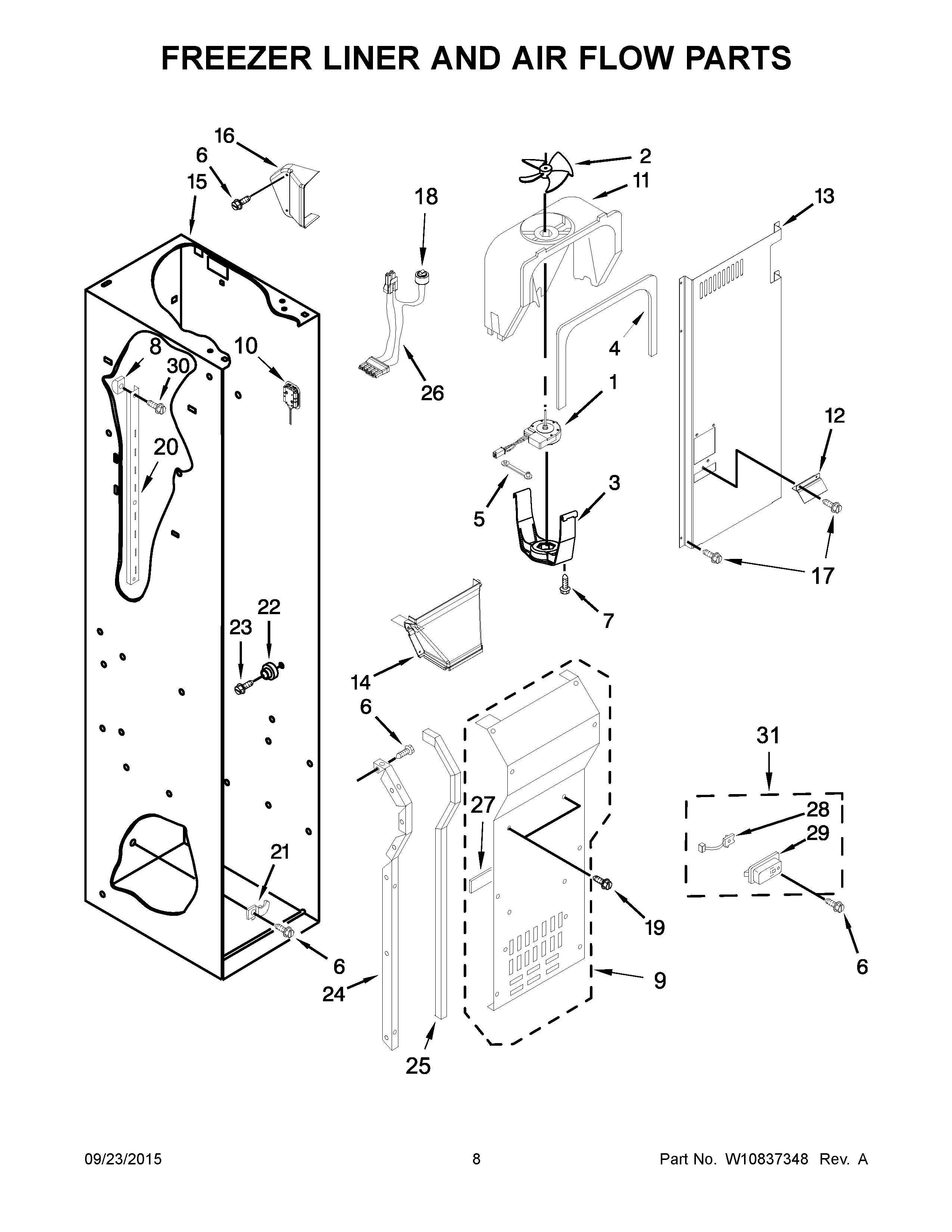

JS48NXFXDE00 05 – FREEZER LINER AND AIR FLOW PARTS

JS48NXFXDE00 05 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

JS48NXFXDE00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY W10436861
2Blade, Fan (Evaporator)
3MAY W10260421
4Gasket, Cover
5MAY W10321090
6SCREW
7SCREW
8Support, Screw
9ASSEMBLY, EVAPORATOR COVER
10MAY W10607479
11MAY W10170114
12DEFLECTOR, AIR
13DUCT, AIR
14MAY W10170112
15LINER (NOT A SERVICEABLE PART)
16COVER, AIR OUTLET
17SCREW (BLACK)
18Defrost, Bi-Metal
19SCREW (BLACK)
20LADDER, SHELF
21MAY 1112260
22ASSEMBLY, SHELF STUD (INCLUDES SCREW)
23SCREW (BLACK)
24EVAPORATOR, COVER RAIL (LH)
24AEVAPORATOR, COVER RAIL (RH)
25GASKET, EVAPORATOR COVER
26MAY W10482187
27GASKET, EVAPORATOR COVER
28MAY 2188820
29COVER, THERMISTOR
30MAY W10745668
31ASSEMBLY, THERMISTOR
