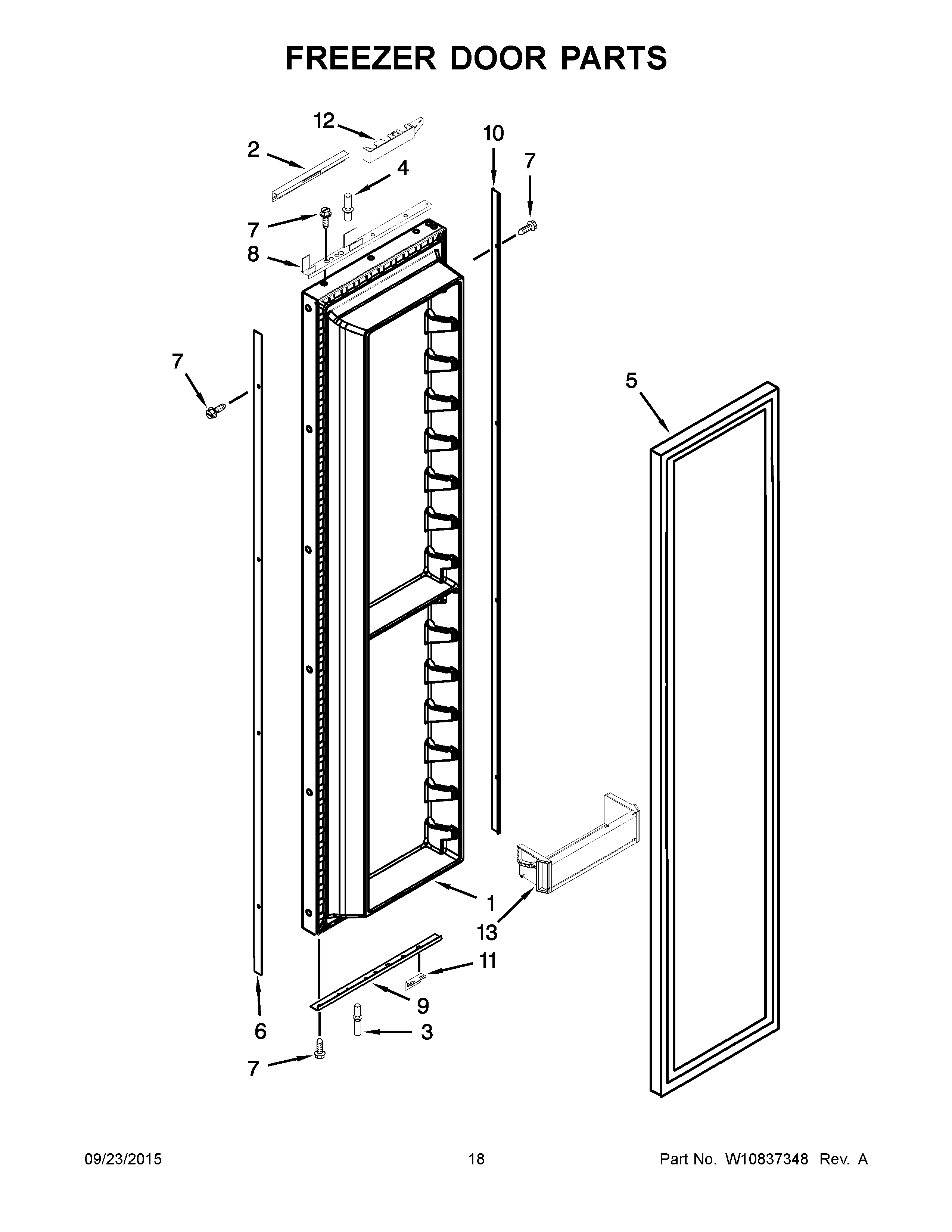

JS48NXFXDE00 10 – FREEZER DOOR PARTSadmin2025-04-26T09:15:01+00:00JS48NXFXDE00 10 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR, FREEZER (INCLUDES ITEM 5) |
| 2 | COVER, TOP DOOR |
| 3 | Pin-Door, Bottom |
| 4 | Pin-Door, Top |
| 5 | GASKET, DOOR (BLACK) |
| 6 | TRIM, DOOR (HANDLE SIDE) (CHARCOAL) |
| 7 | Screw, 8-15 x .500 (Black) |
| 8 | TRIM, TOP DOOR |
| 9 | TRIM, BOTTOM DOOR |
| 10 | TRIM, DOOR (HINGE SIDE) (CHARCOAL) |
| 11 | BRACKET, PANEL MOUNTING (GREY) |
| 12A | INSERT, DOOR ARM BOTTOM (GREY) |
| 12 | INSERT, DOOR ARM TOP (GREY) |
| 13 | BIN, SHALLOW |
