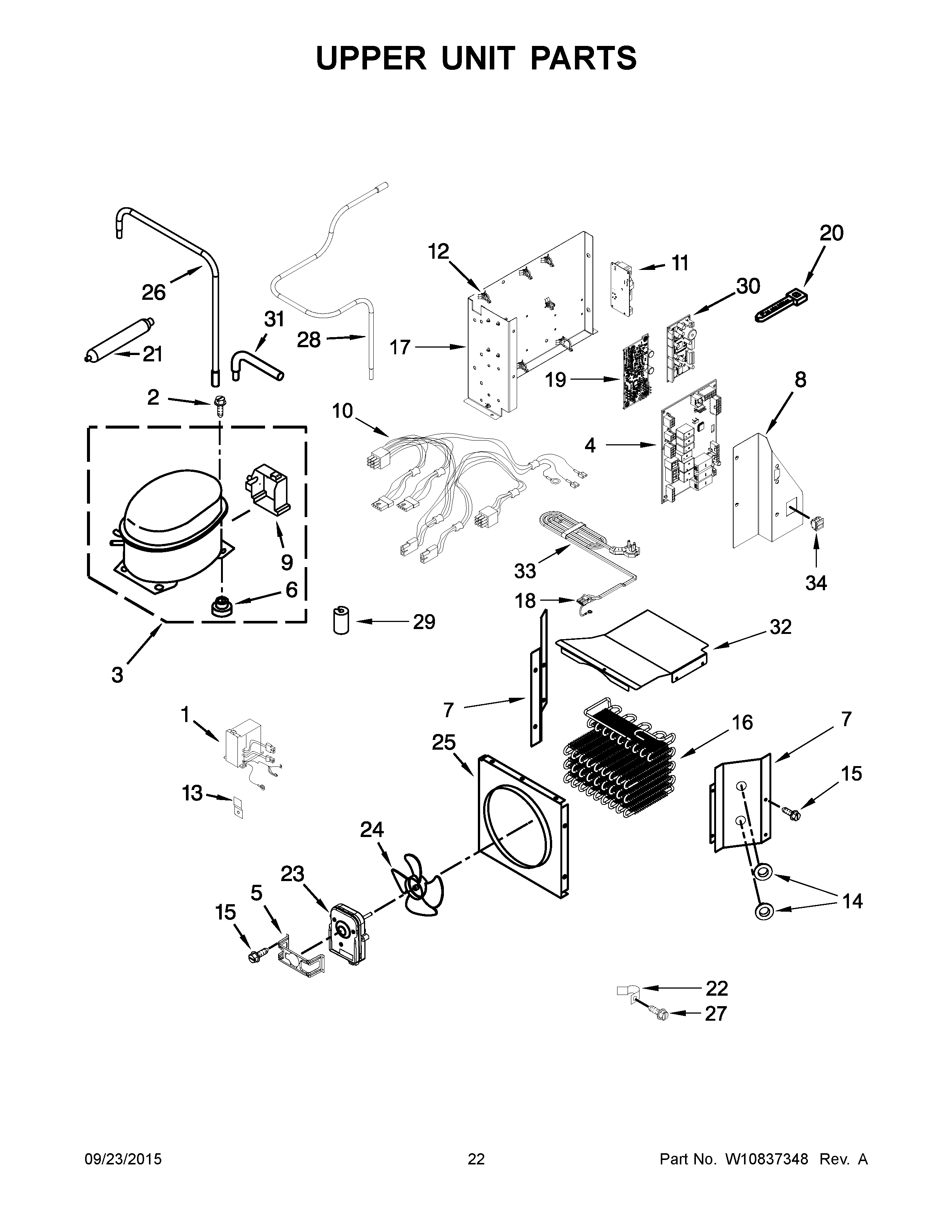

JS48NXFXDE00 12 – UPPER UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10645666
2	MAY 489373
3	MAY W10653005
4	Control-Elek, I/O
5	BRACKET, FAN MOTOR (CONDENSER FAN)
6	Grommet (Production)
7	MAY W10525177
7A	MAY W10525179
8	MAY W10321055
9	MAY 2215676
10	ASSEMBLY, UNIT WIRE
11	SUPPLY, POWER
12	Spacer (5)
13	Bracket, Inverter Box
14	MAY W10587113
15	MAY 1157158
16	MAY W10591457
17	HOUSING, CONTROL BOARD MOUNTING
18	ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER CORD)
19	MAY W10790783
20	MAY 2155774
21	MAY W10175593
22	MAY 549193
23	MAY 2188875
24	MAY W10139483
25	MAY W10415670
26	MAY W10624944
27	Screw, Ground
28	MAY W10648264
29	GROMMET, CONDENSER
30	Control-Elek, Controls
31	MAY W10528578
32	TOP COVER, CONDENSER
33	Service Cord
34	Switch, Power Disconnect
