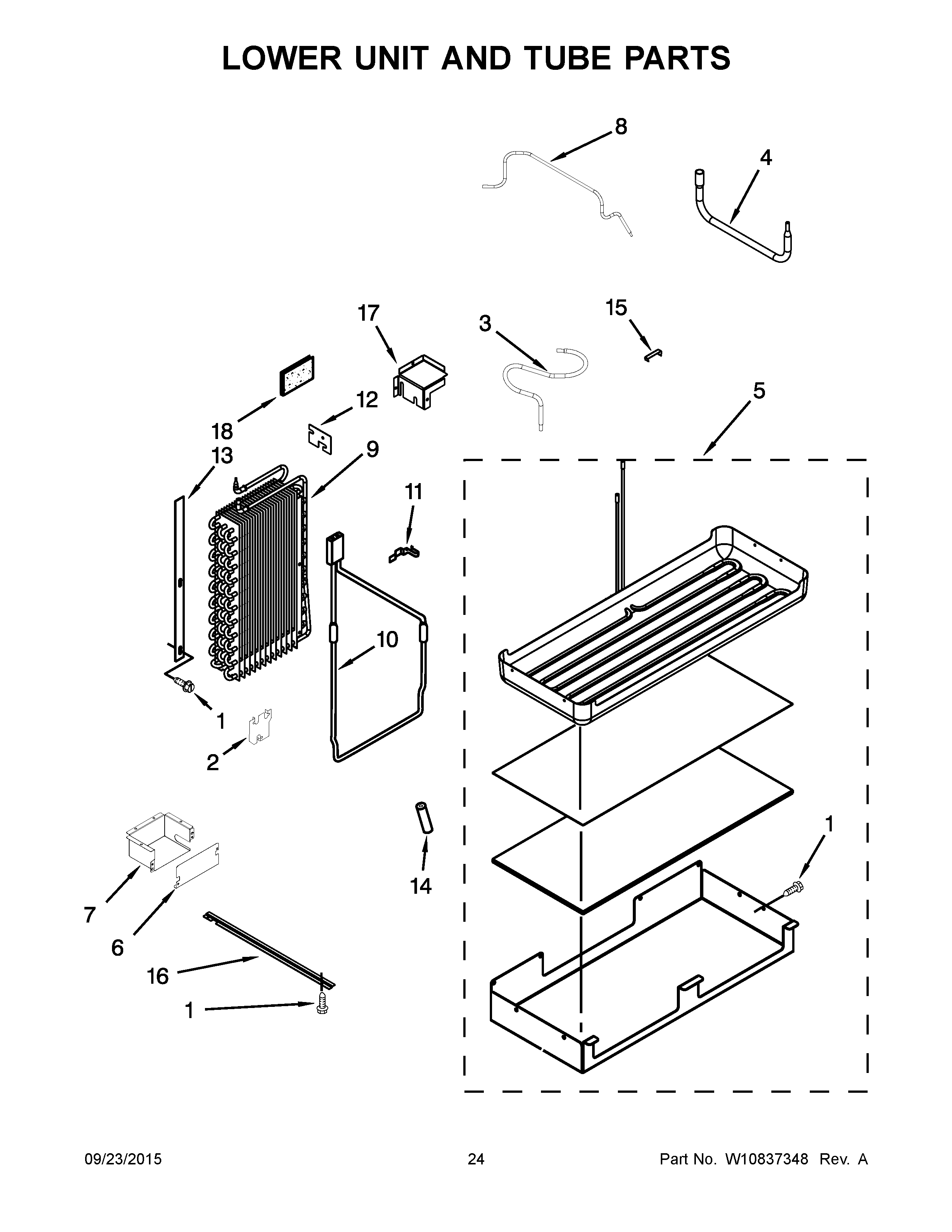

JS48NXFXDE00 13 – LOWER UNIT AND TUBE PARTS

Written by

Products

Position	Product
1	Screw
2	Bracket
3	MAY W10648568
4	TUBE, CONNECT (DRIER/RESTRICTOR)
5	MAY W10281063
6	MAY W10321048
7	MAY W10309012
8	TUBE, DISCHARGE
9	MAY W10427993
10	MAY W10140162
11	MAY 1113048
12	Cover Seal, Evaporator Tubes
13	MAY W10432308
14	GROMMET, AIR RETURN
15	MAY W10169509
16	MAY 2320554
17	Bracket Assembly, Air Return
18	SEALER, INSULATION
