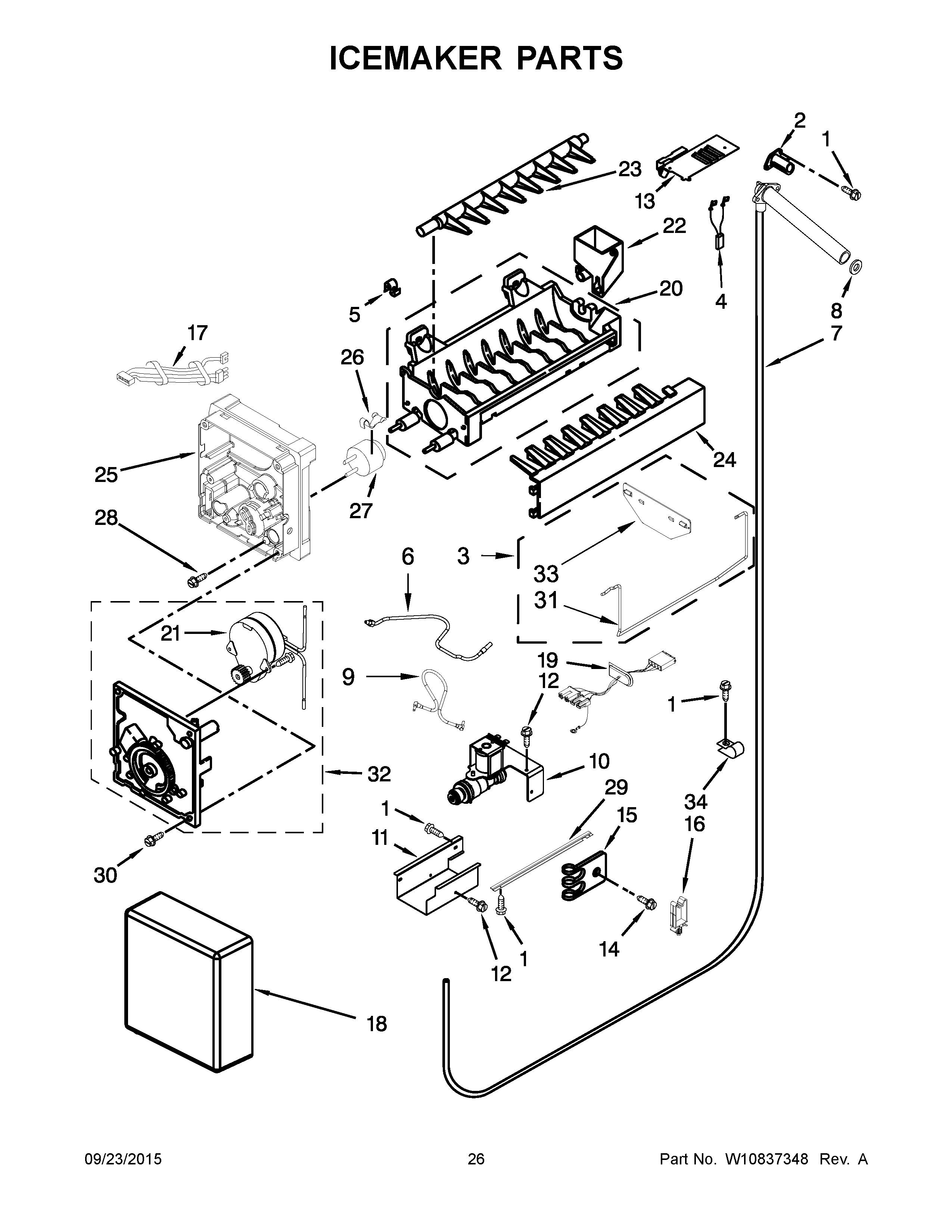

JS48NXFXDE00 14 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	MAY REFDEODOR
NI	MAY W10613135
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10744761
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	Icemaker Install Kit
NI	TEMPLATE, DOOR (WOOD PANEL)
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
1	SCREW
2	MAY 2221240
3	MAY W10802377
4	WIRE ASSEMBLY, FILL TUBE HEATER
5	Clip
6	MAY W10296807
7	Water Inlet Tube Assembly
8	Seal
9	MAY W10683737
10	MAY 2307650
11	MAY W10129653
12	Screw, Ground
13	MAY 2221231
14	MAY W10001250
15	Clip, Tube
16	Wire Clip (5)
17	WIRE ASSEMBLY, ICE MAKER
18	COVER, ICEMAKER
19	MAY W10279393
20	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
22	MAY W10788843
23	MAY 627843
24	MAY W10788834
25	SUPPORT, HOUSING
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	Screw (2)
29	MAY 2320559
30	MAY 489276
31	MAY 2304352
32	Module Assembly (Includes Items 23 and 24)
33	EXTENSION, SHUT OFF ARM
34	MAY 2221070
100	MAY W10790815
