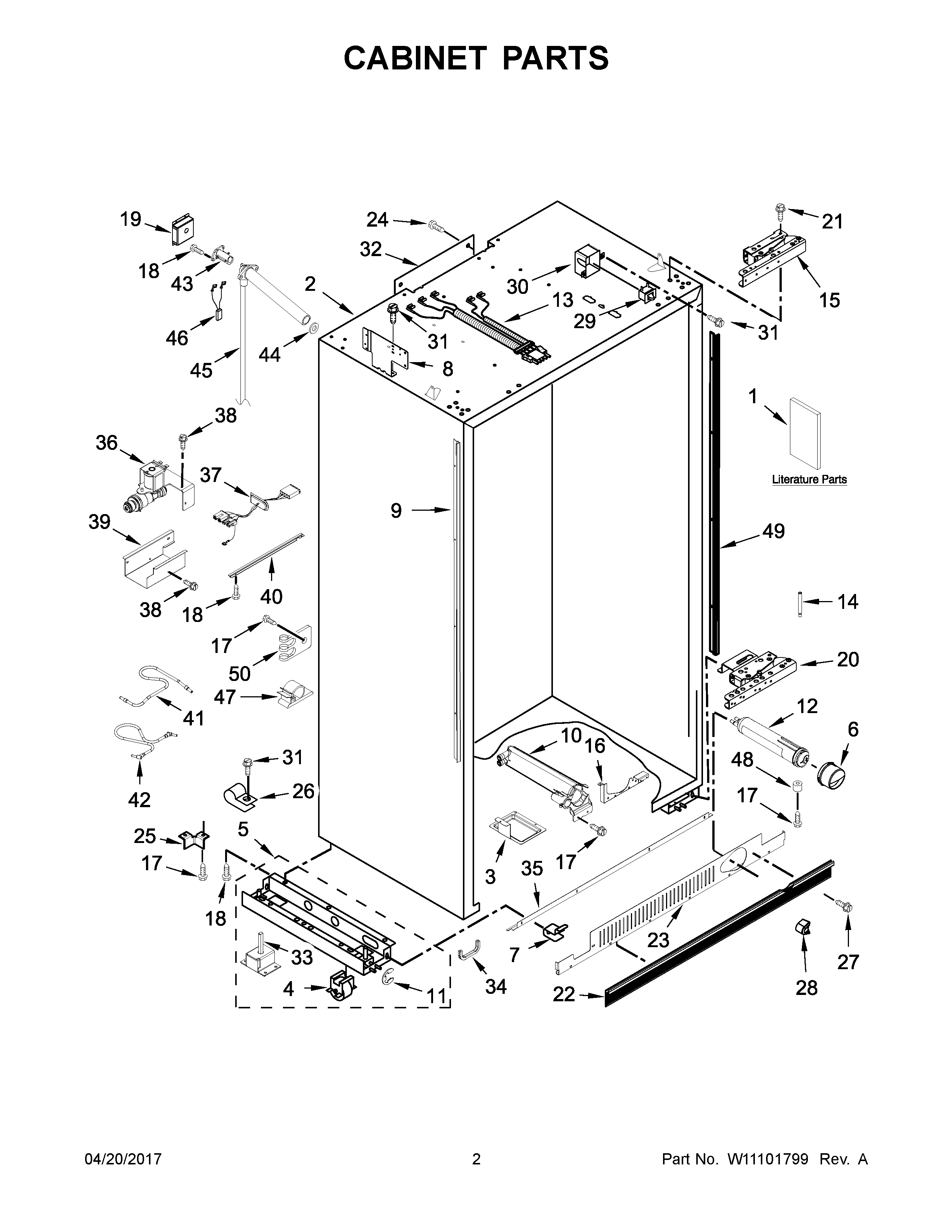

JS48NXFXDE01 02 – CABINET PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1A	ENERGY GUIDE
1C	MAY W10785746
1D	MAY W10910735
1	USE AND CARE GUIDE
1E	MAY W10910738
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	CAP, WATER FILTER (BLACK)
7	Mounting Stud, Grille
8	BRACKET, GRILLE LEFT HAND (GREY)
8A	BRACKET, GRILLE RIGHT HAND (GREY)
9	TRIM, CABINET SIDE LEFT HAND (GREY)
10	MAY W10121140
11	Ring, Retainer
12	Filter, Water
13	ASSEMBLY, LIGHT SWITCH WIRE
14	Pin-Stop, Door
15	HINGE (TOP) LEFT HAND (GREY)
15A	HINGE (TOP) RIGHT HAND (GREY)
16	MAY W10674648
17	MAY W10001250
18	SCREW
19	MAY W10831026
20	HINGE (BOTTOM) LEFT HAND (GREY)
20A	HINGE (BOTTOM) RIGHT HAND (GREY)
21	Screw 1/4-20 x 5/8
22	SKIRT-GRILLE, BOTTOM
23	GRILLE BOTTOM, FRONT
24	MAY 1157158
25	Bracket, Support Base (Rear) (2)
26	MAY 549193
27	MAY W10005050
28	Button, Filter (Black)
29	SWITCH, LIGHT
30A	COVER, SWITCH (RH)
30	COVER, SWITCH (LH)
31	Screw
32	Cover, Rear
33	LEVELER ASSY
34	GROMMET, CROSSOVERTUBE
35	TRIM, TOP GRILLE
36	MAY 2307650
37	MAY W10279393
38	Screw, Ground
39	MAY W10129653
40	MAY 2320559
41	MAY W10296807
42	MAY W10683737
43	MAY 2221240
44	Seal
45	Water Inlet Tube Assembly
46	WIRE ASSEMBLY, FILL TUBE HEATER
47	CLIP
48	Spacer, Door-Skin (Top)
49	TRIM, CABINET SIDE (RIGHT HAND) (GREY)
50	Clip, Tube
