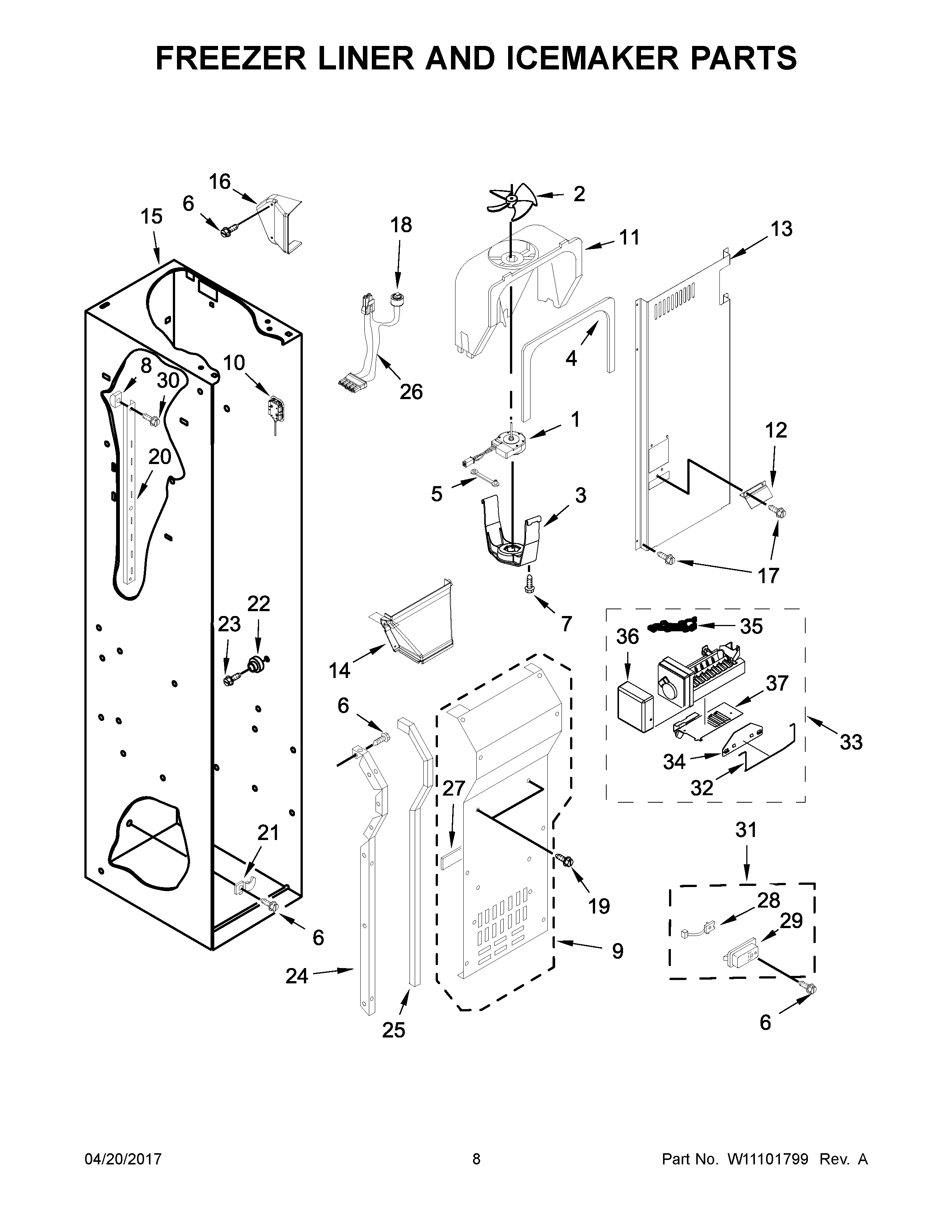

JS48NXFXDE01 05 – FREEZER LINER AND ICEMAKER PARTS

Products

Position	Product
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	MAY W10744761
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10613135
NI	TEMPLATE, DOOR (WOOD PANEL)
1	MAY W10436861
2	Blade, Fan (Evaporator)
3	MAY W10260421
4	Gasket, Cover
5	MAY W10321090
6	SCREW
7	SCREW
8	Support, Screw
9	ASSEMBLY, EVAPORATOR COVER
10	ASSEMBLY, LED MODULE
11	MAY W10170114
12	DEFLECTOR, AIR
13	DUCT, AIR
14	MAY W10170112
16	COVER, AIR OUTLET
17	SCREW (BLACK)
18	Defrost, Bi-Metal
19	SCREW (BLACK)
20	LADDER, SHELF
21	MAY 1112260
22	ASSEMBLY, SHELF STUD (INCLUDES SCREW)
23	SCREW (BLACK)
24A	EVAPORATOR, COVER RAIL (RH)
24	EVAPORATOR, COVER RAIL (LH)
25	GASKET, EVAPORATOR COVER
26	MAY W10482187
27	GASKET, EVAPORATOR COVER
28	MAY 2188820
29	COVER, THERMISTOR
30	MAY W10832438
31	ASSEMBLY, THERMISTOR
32	ARM, SHUT OFF
33	COMPLETE ICEMAKER ASSEMBLY
34	EXTENSION, SHUT OFF ARM
35	WIRE ASSEMBLY, ICE MAKER
36	COVER, ICEMAKER
37	MAY 2221231
