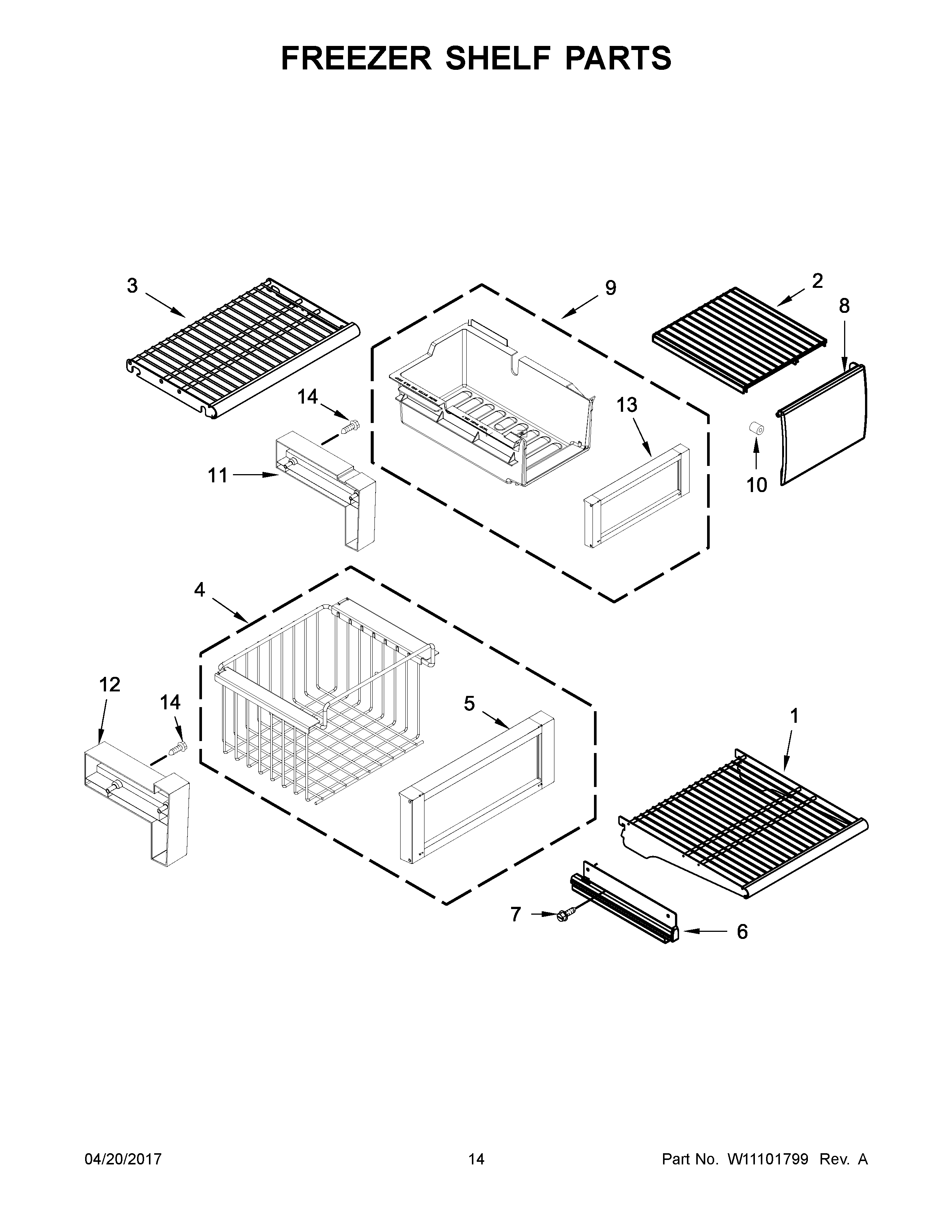

JS48NXFXDE01 08 – FREEZER SHELF PARTS

JS48NXFXDE01 08 – FREEZER SHELF PARTS

Written by

in

JS48NXFXDE01 08 – FREEZER SHELF PARTS

Products

PositionProduct
1SHELF, WIRE
2COVER, SHELF
3SHELF, FIXED
4ASSEMBLY, FREEZER BASKET
5ASSEMBLY, BASKET FRONT
6ASlide, Basket (Right Side)
6Slide, Basket (Left Side)
7Screw
8DOOR, ICE
9ASSEMBLY, ICE BUCKET
10SPACER, ICE DOOR
11SPACER, ICE
12SPACER, BASKET
13ASSEMBLY, ICE BUCKET FRONT
14SCREW (BLACK)
