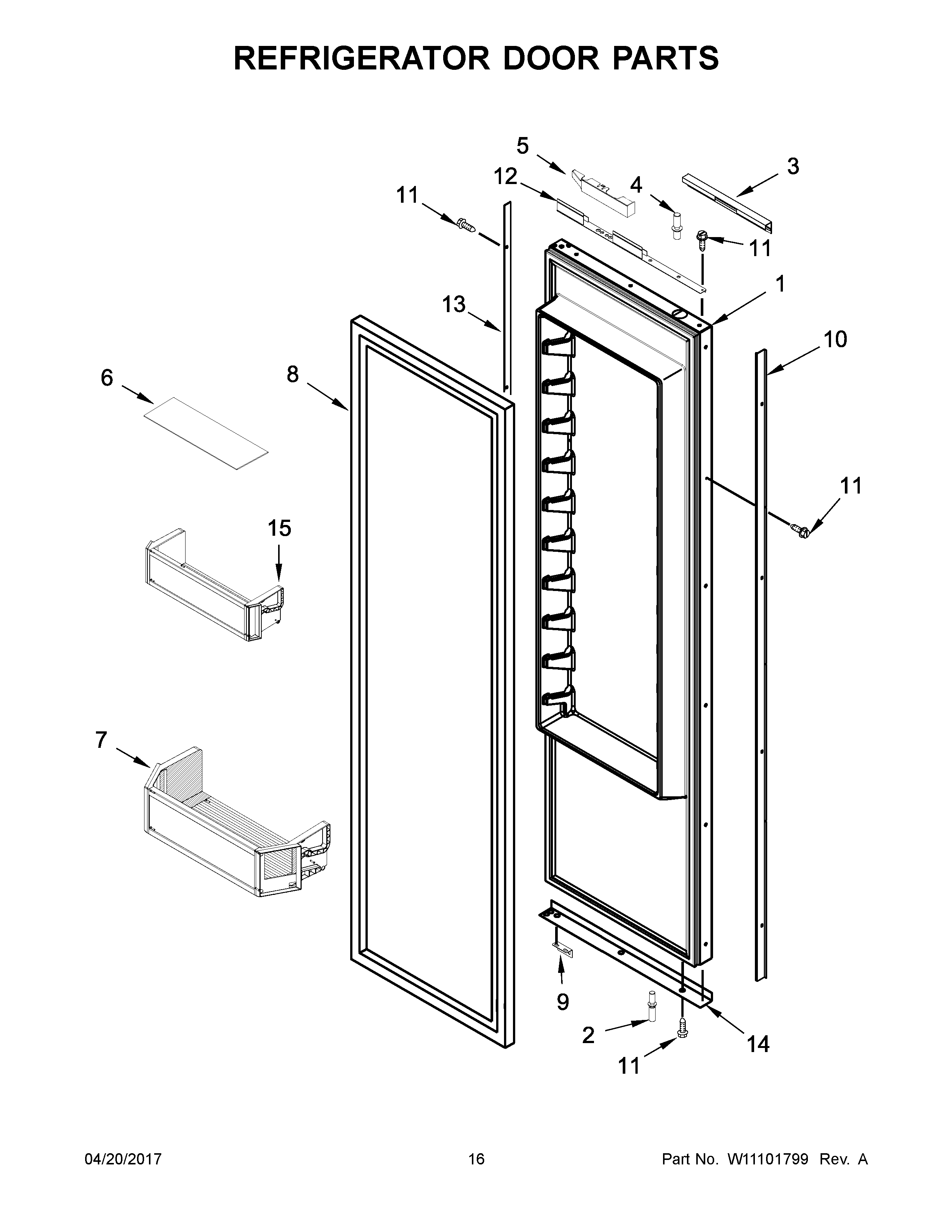

JS48NXFXDE01 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (INCLUDES ITEM 8)
2	Pin-Door, Bottom
3	COVER, TOP DOOR
4	Pin-Door, Top
5	INSERT, DOOR ARM TOP (GREY)
6	MAT, DOOR BIN (SHALLOW)
6A	MAT, DOOR BIN (GALLON)
7	BIN, GALLON DOOR
8	GASKET, DOOR (BLACK)
9	BRACKET, PANEL MOUNTING (GREY)
10	TRIM, DOOR (HANDLE SIDE) (CHARCOAL)
11	Screw, 8-15 x .500 (Black)
12	TRIM, TOP DOOR
13	TRIM, DOOR (HINGE SIDE) (CHARCOAL)
14	TRIM, BOTTOM DOOR
15	BIN, SHALLOW DOOR
