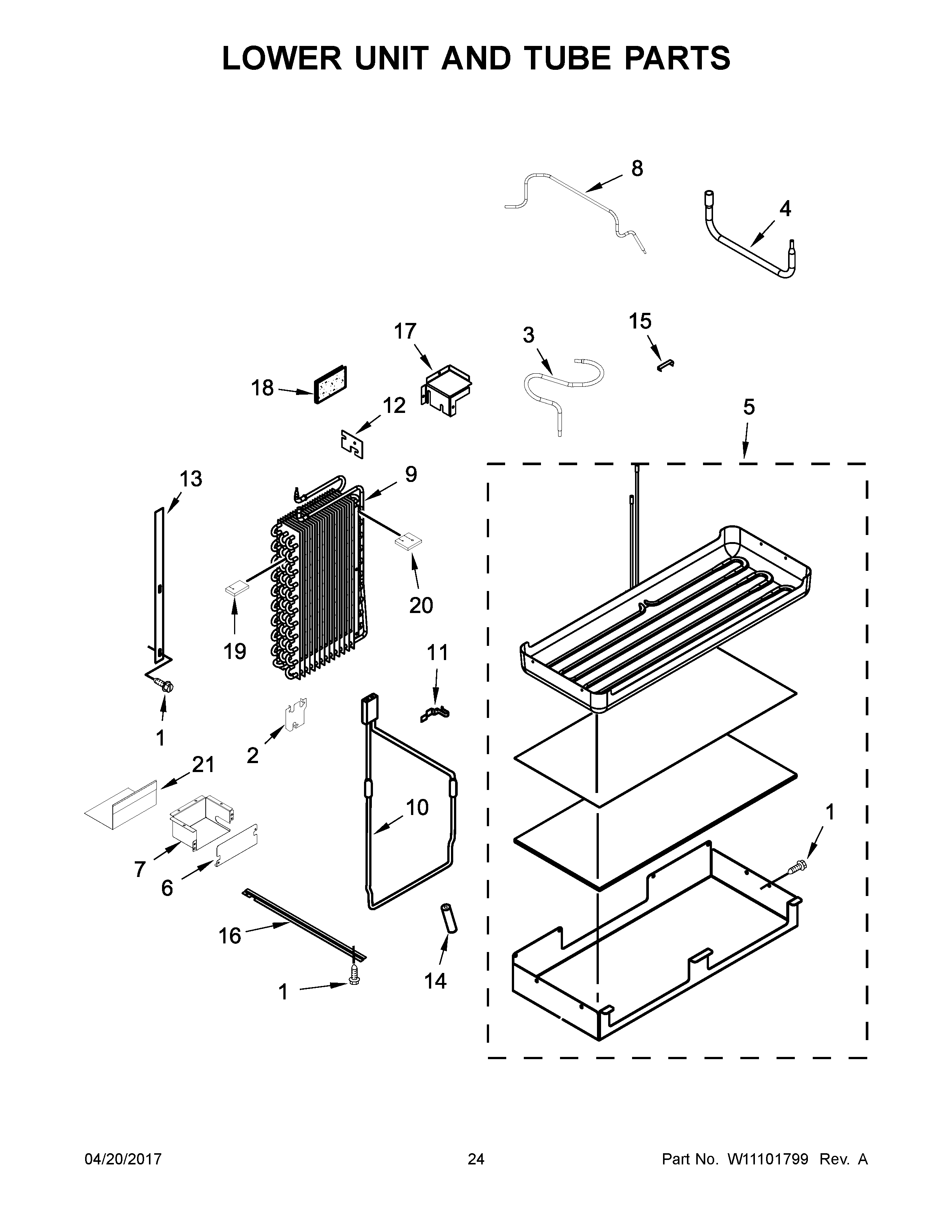

JS48NXFXDE01 13 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Screw
2Bracket
3MAY W10648568
4TUBE, CONNECT (DRIER/RESTRICTOR)
5MAY W10281063
6MAY W10321048
7MAY W10309012
8TUBE, DISCHARGE
9MAY W10427993
10MAY W10140162
11MAY 1113048
12Cover Seal, Evaporator Tubes
13MAY W10432308
14GROMMET, AIR RETURN
15MAY W10169509
16MAY 2320554
17Bracket Assembly, Air Return
18SEALER, INSULATION
19BLOCK, EVAPORATOR SIDE
20SEAL, RETURN AIR
21MAY W10321050
