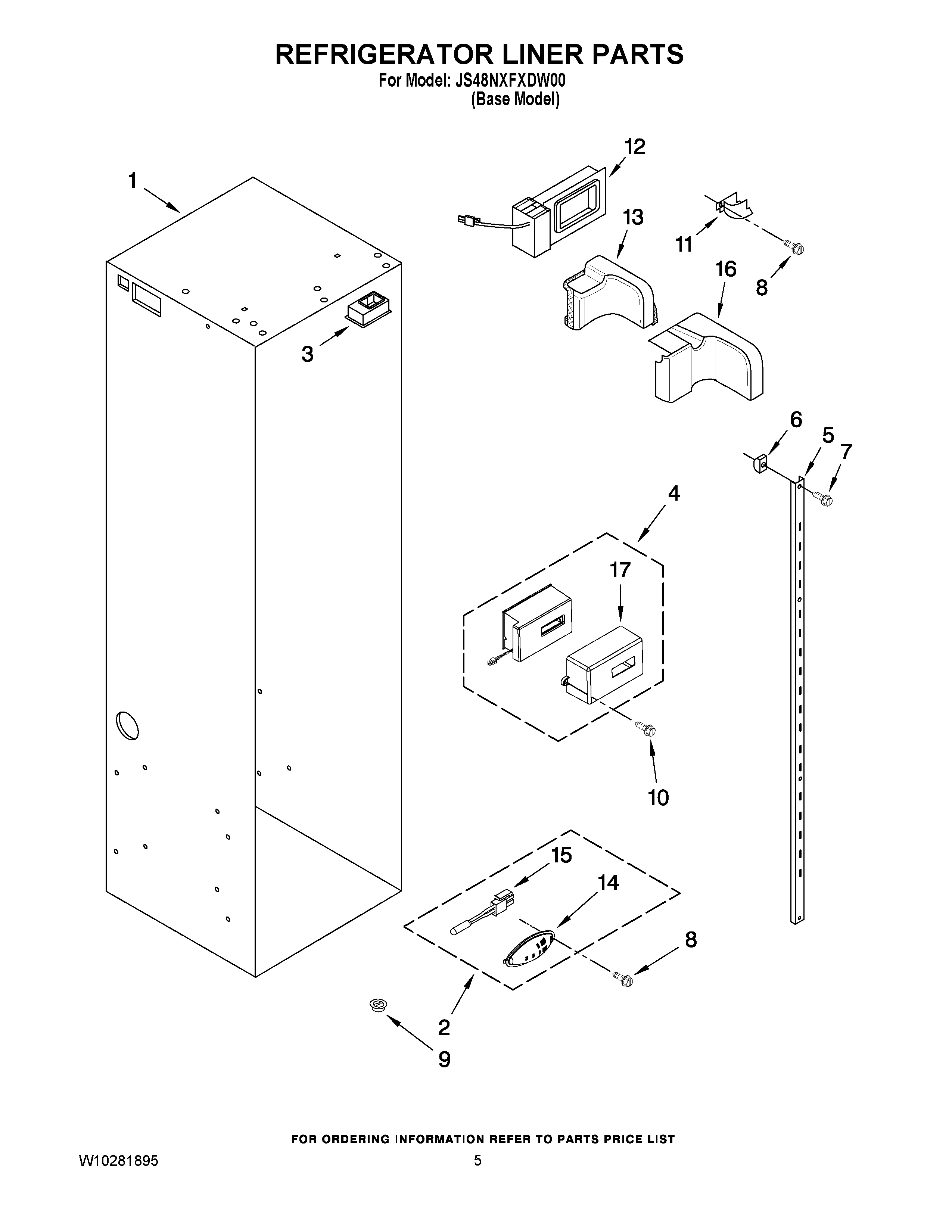

JS48NXFXDW00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, THERMISTOR
3Air Duct
4MAY W10171433
5LADDER, SHELF
6Support, Screw
7SCREW
8SCREW
9MAY 2171846
10SCREW
11MAY 2003577
12Air Baffle Assembly
13Diffuser Assembly
14MAY 2317105
15MAY 2188820
16MAY W10170104
17MAY W10171428
