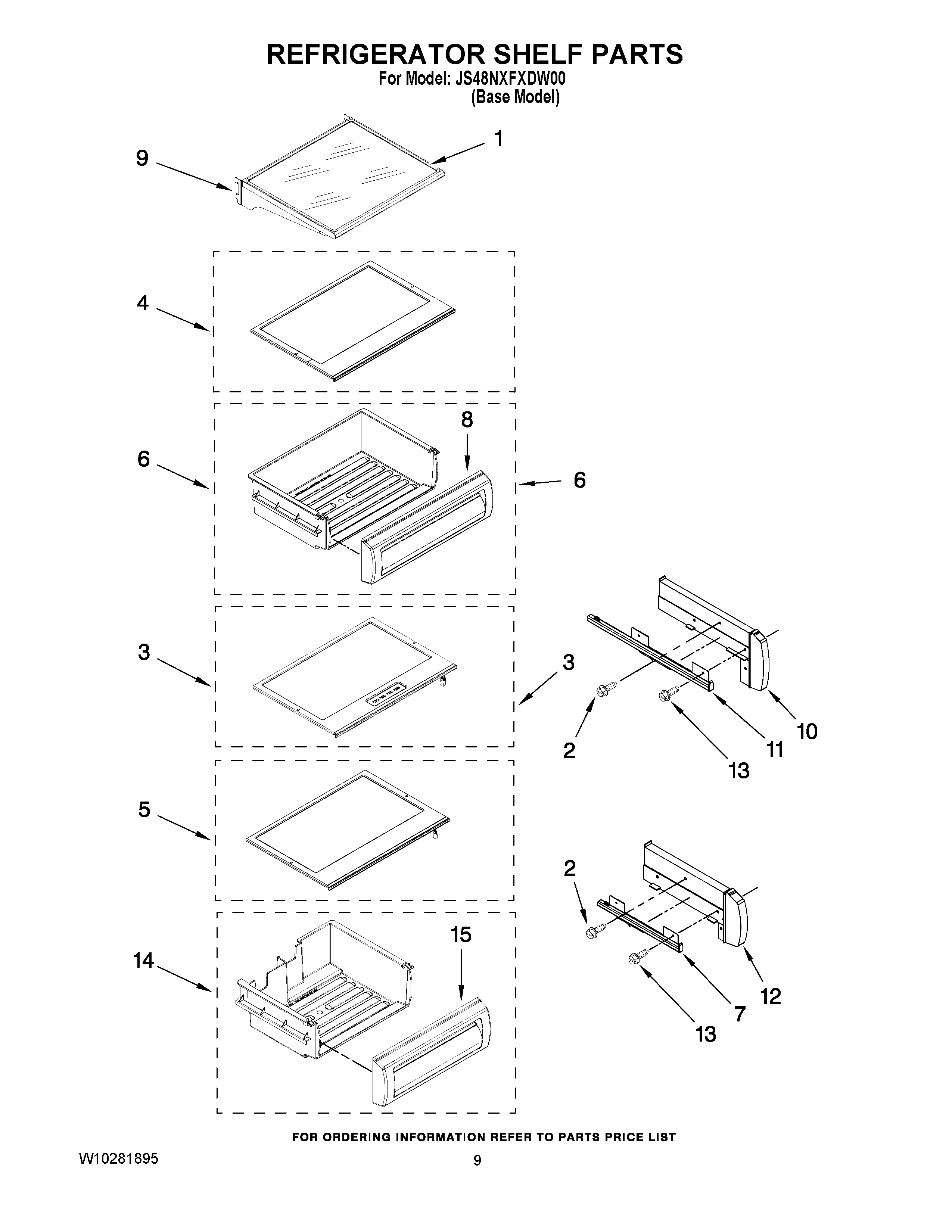

JS48NXFXDW00 07 – REFRIGERATOR SHELF PARTS

JS48NXFXDW00 07 – REFRIGERATOR SHELF PARTS

Written by

in

JS48NXFXDW00 07 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	SHELF ASSY
2	MAY 8281160
3	MAY W10137287
4	MAY W10217205
5	MAY W10189067
6	MAY W10188940
7	Slide, Meat Pan (Left Side)
7	Slide, Meat Pan (Right Side)
8	Front, Meat Pan
9	MAY W10187549
10	MAY W10137277
11	Slide, Crisper (Left Side)
11	Slide, Crisper (Right Side)
12	MAY W10217428
13	Screw (Right Side- (8-18 x 1.375))
14	MAY W10188943
15	MAY 2256249
