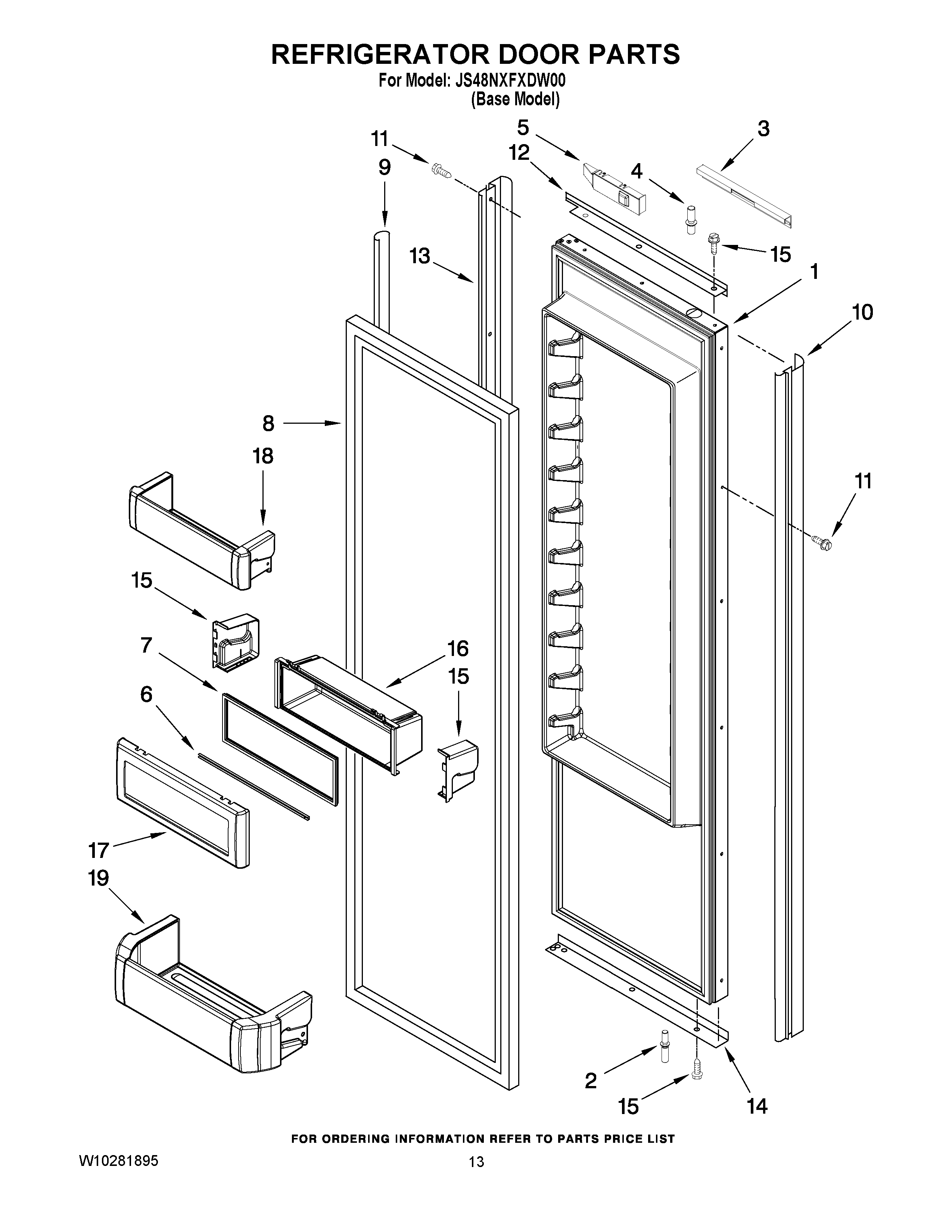

JS48NXFXDW00 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES No.8)
2	Pin-Door, Bottom
3	MAY W10199875
4	Pin-Door, Top
5	INSERT-DOOR, ARM (TOP)
5	INSERT-DOOR, ARM (BOTTOM)
6	MAY 2222797
7	MAY 2222983
8	MAY 2222812
9	Trim, Side
10	MAY W10167367
11	MAY 8281251
12	MAY W10182684
13	MAY W10182685
14	MAY W10182691
15	End Cap (Left Side)
15	End Cap (Right Side)
16	MAY 2222923
17	MAY 2257617
18	Bin, Door (3)
19	Bin, Door
