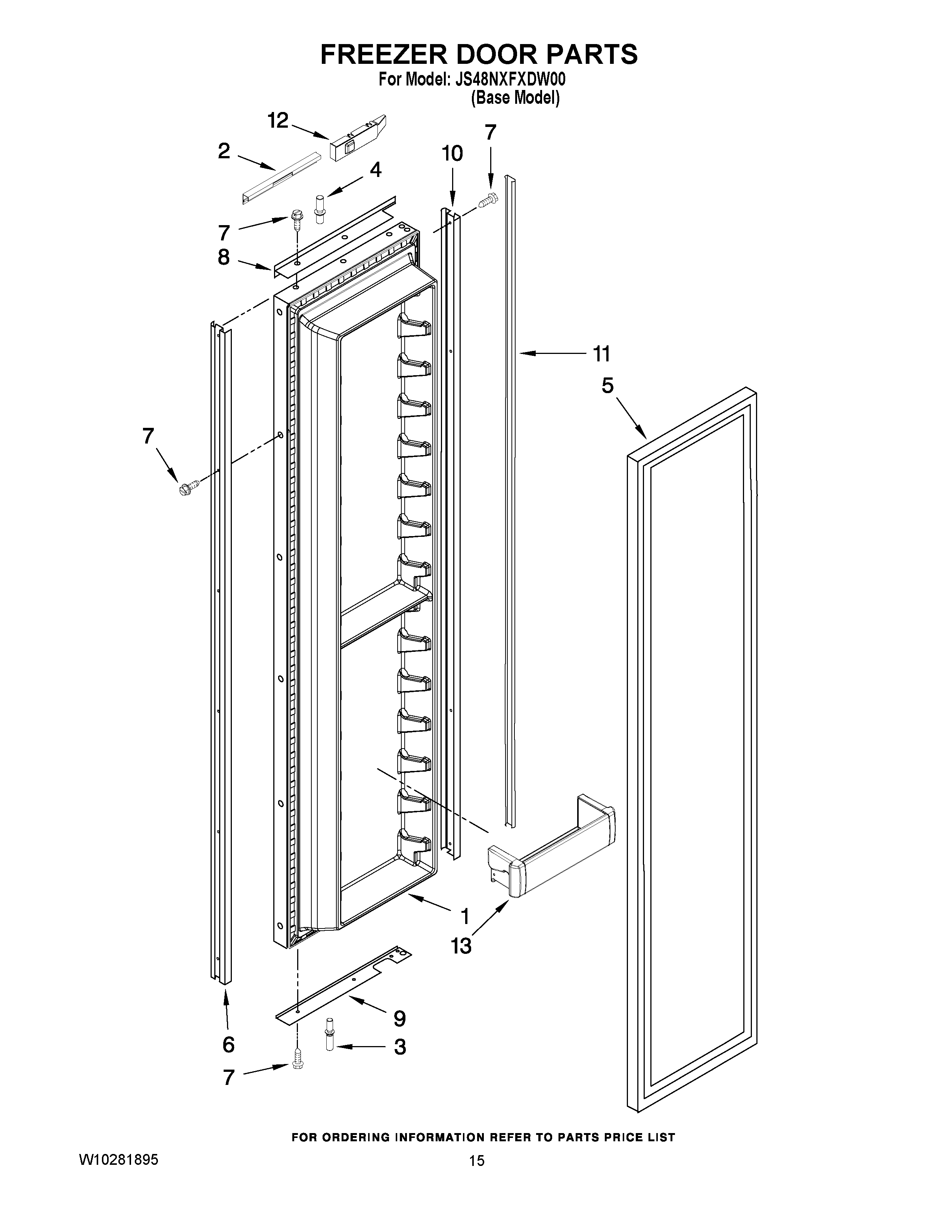

JS48NXFXDW00 10 – FREEZER DOOR PARTS

JS48NXFXDW00 10 – FREEZER DOOR PARTS

Written by

in

JS48NXFXDW00 10 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.5)
2MAY W10199888
3Pin-Door, Bottom
4Pin-Door, Top
5MAY 2222810
6MAY W10182700
7MAY 8281251
8MAY W10182706
9MAY W10182710
10MAY W10182685
11Trim, Side
12INSERT-DOOR, ARM (BOTTOM)
12INSERT-DOOR, ARM (TOP)
13Bin, Door (6)
