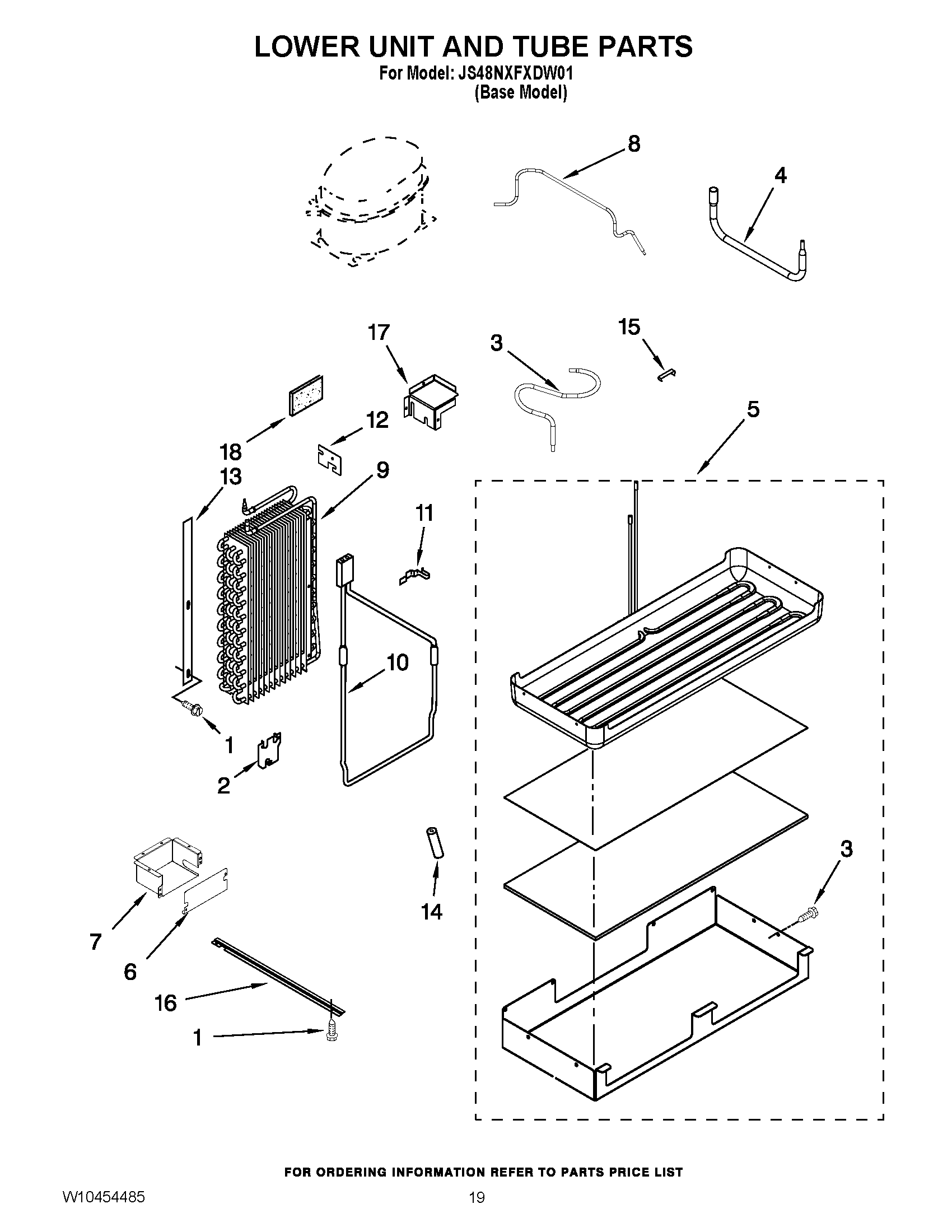

JS48NXFXDW01 12 – LOWER UNIT AND TUBE PARTS

Written by

Products

Position	Product
1	SCREW
2	Bracket
3	TUBE, OIL TRAP SUCTION
4	TUBE, CONNECT (DRIER/RESTRICTOR)
5	MAY W10281063
6	MAY W10321048
7	COVER, WIRING
8	MAY W10412485
9	MAY W10205102
10	MAY W10140162
11	MAY 1113048
12	Cover Seal, Evaporator Tubes
13	MAY 2220832
14	Dampener
15	MAY W10169509
16	MAY 2320554
17	Bracket Assembly, Air Return
18	SEALER, INSULATION
