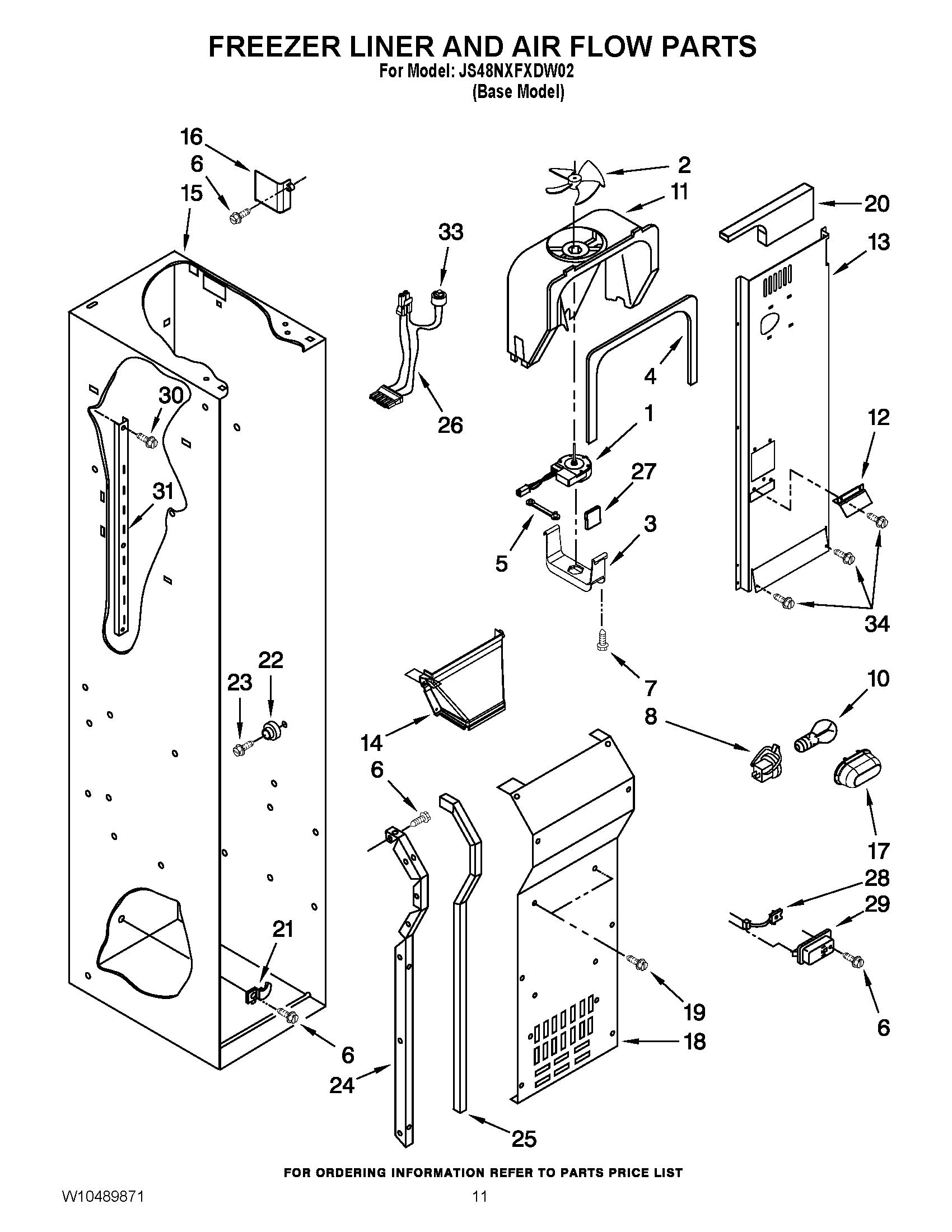

JS48NXFXDW02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY 2259385
2Blade, Fan (Evaporator)
3MAY 2223733
4Gasket, Cover
5GROMMET
6SCREW
7SCREW
8MAY W10191429
10Bulb, Light
11MAY W10170114
13MAY W10170085
14MAY W10170112
15LINER (NOT A SERVICEABLE PART)
16MAY W10170101
17Light Shield
18MAY W10428008
19Screw
20Deflector, Air Duct
21MAY 1112260
22ASSEMBLY, SHELF STUD
23MAY W10191952
24EVAPORATOR, COVER RAIL (LH)
24EVAPORATOR, COVER RAIL (RH)
25Gasket (2) Evaporator Cover
26MAY W10139189
27INSULATION
28MAY 2188820
29MAY 2317105
30MAY 2001377
31MAY W10213473
33Defrost, Bi-Metal
34SCREW (WHITE)
