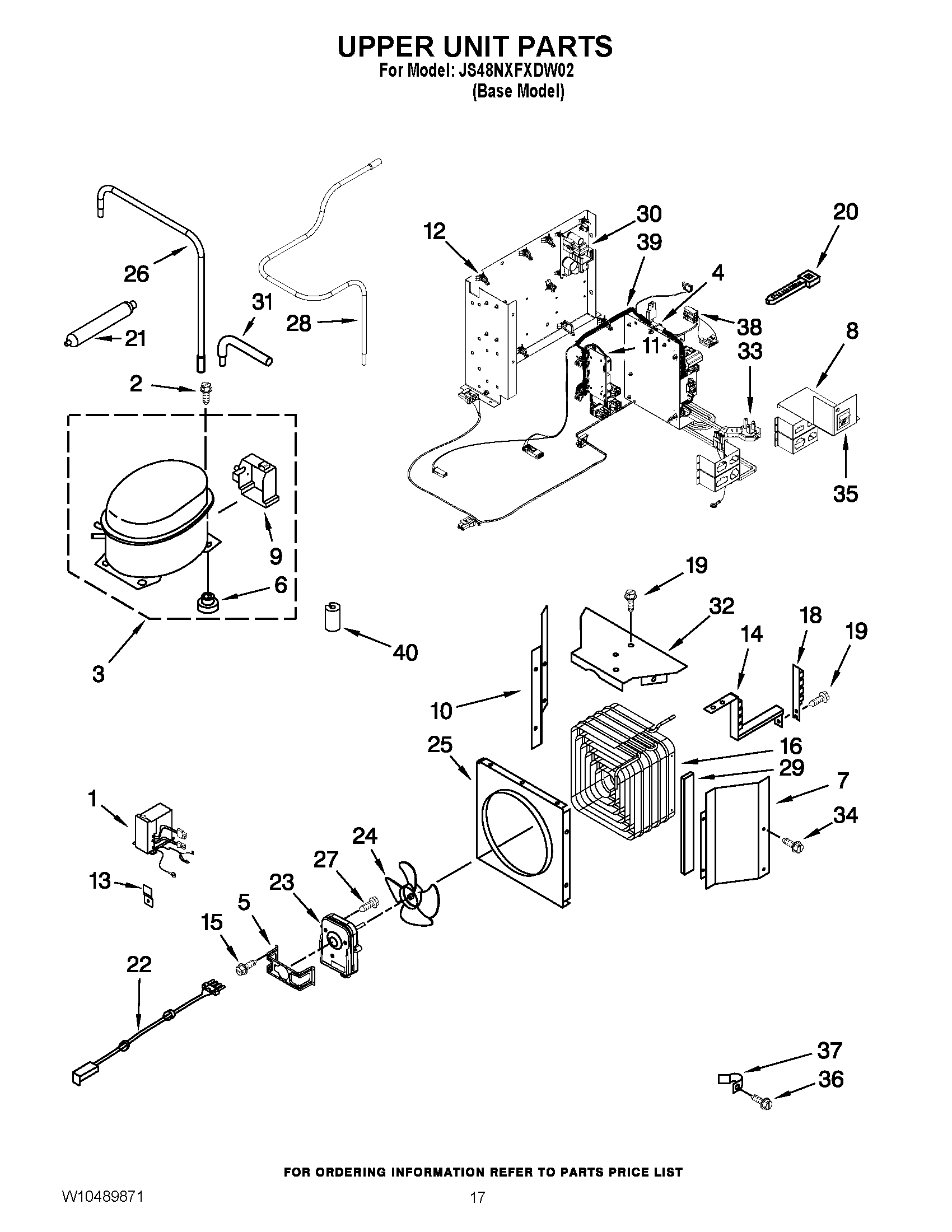

JS48NXFXDW02 11 – UPPER UNIT PARTSadmin2025-04-26T09:14:03+00:00JS48NXFXDW02 11 – UPPER UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY W10133449 |
| 2 | MAY 489373 |
| 3 | MAY W10173296 |
| 4 | Control-Elek, I/O |
| 5 | BRACKET, FAN MOTOR (CONDENSER FAN) |
| 6 | Grommet (Production) |
| 7 | SUPPORT, CONDENSER (RIGHT HAND) |
| 8 | Bracket, Switch |
| 9 | MAY 2215676 |
| 10 | SUPPORT, CONDENSER (LEFT HAND) |
| 11 | CONTROL, ELECTRONIC |
| 12 | Spacer (5) |
| 13 | Bracket, Inverter Box |
| 14 | BRACKET, VIBRATION CONDENSER |
| 15 | MAY 1157158 |
| 16 | MAY 2307998 |
| 18 | ARM, VIBRATION CONDENSER |
| 19 | Screw 8-32 x 5/16 |
| 20 | MAY 2155774 |
| 21 | MAY W10175593 |
| 22 | MAY 2310207 |
| 23 | MAY 2188875 |
| 24 | MAY W10139483 |
| 25 | MAY W10415670 |
| 26 | MAY 2307566 |
| 27 | MAY 8533993 |
| 28 | MAY W10234133 |
| 29 | MAY 2309432 |
| 30 | Control-Elek, Controls |
| 31 | MAY 2194319 |
| 32 | MAY 2309000 |
| 33 | Service Cord |
| 34 | SCREW |
| 35 | Switch, Power Disconnect |
| 36 | Screw, Ground |
| 37 | MAY 549193 |
| 38 | Wiring Harness, DC |
| 39 | Wiring Harness, AC |
| 40 | GROMMET, CONDENSER |
