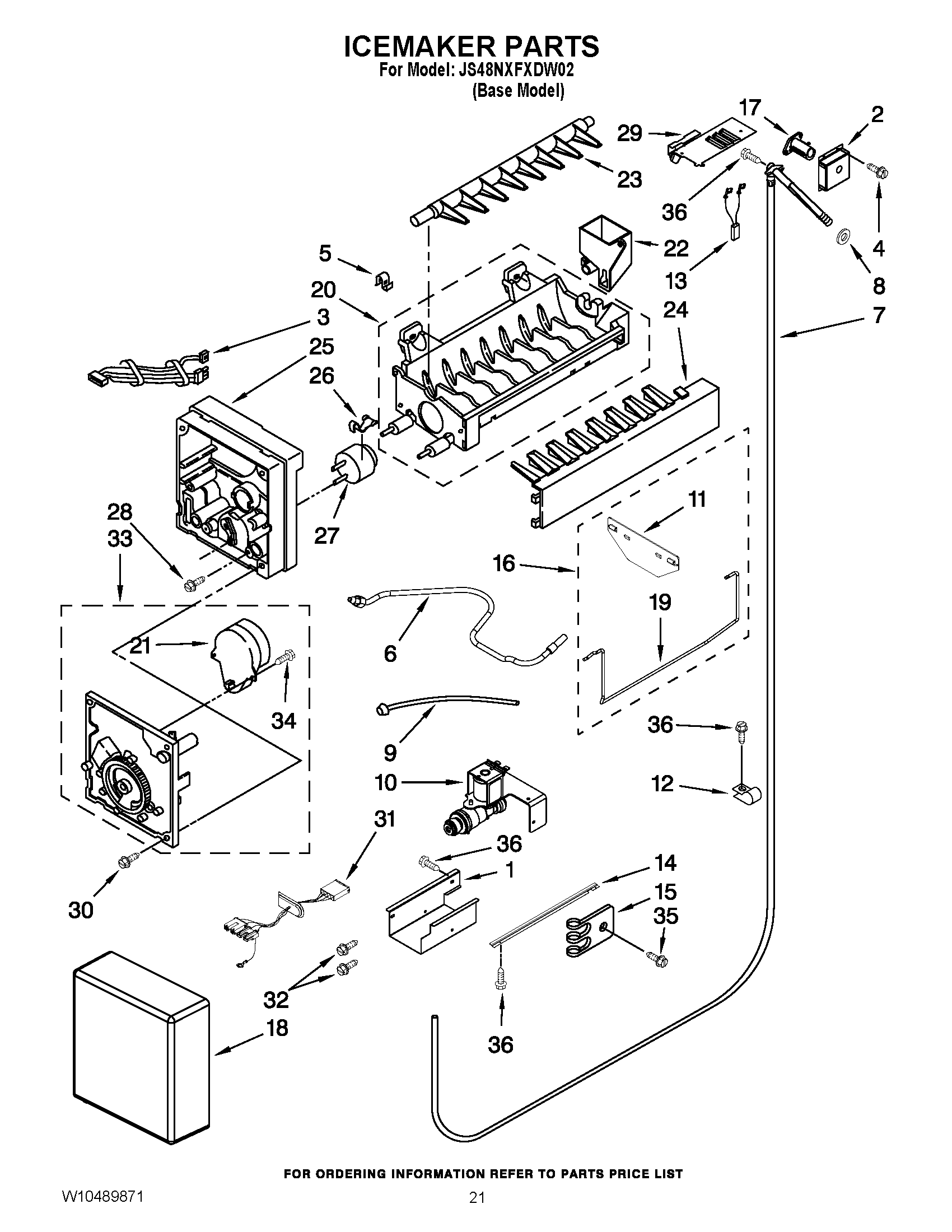

JS48NXFXDW02 13 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
NI	MAY REFDEODOR
NI	MAY W10222281
NI	MAY W10222283
NI	MAY W10249830
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
1	MAY W10129653
2	MAY W10176577
3	Wire Assembly, Icemaker
4	SCREW
5	Clip
6	MAY W10296807
7	Water Inlet Tube Assembly
8	Seal
9	MAY 2317912
10	MAY 2307650
11	EXTENSION-SHUT OFF ARM
12	MAY 2221070
13	Jumper, Fill Tube Heater
14	MAY 2320559
15	Clip, Tube
16	MAY 2304354
17	MAY 2221240
18	COVER
19	MAY 2304352
20	MAY W10122527
21	MAY 626683
22	MAY W10435665
23	MAY 627843
24	ICE STRIPPER
25	MAY 2194712
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	MAY 8533917
29	MAY 2221231
30	MAY 489276
31	MAY W10279393
32	SCREW
33	Module Assembly (Includes Items 23 and 24)
34	MAY 489136
35	MAY W10001250
36	SCREW
100	MAY W10277450
