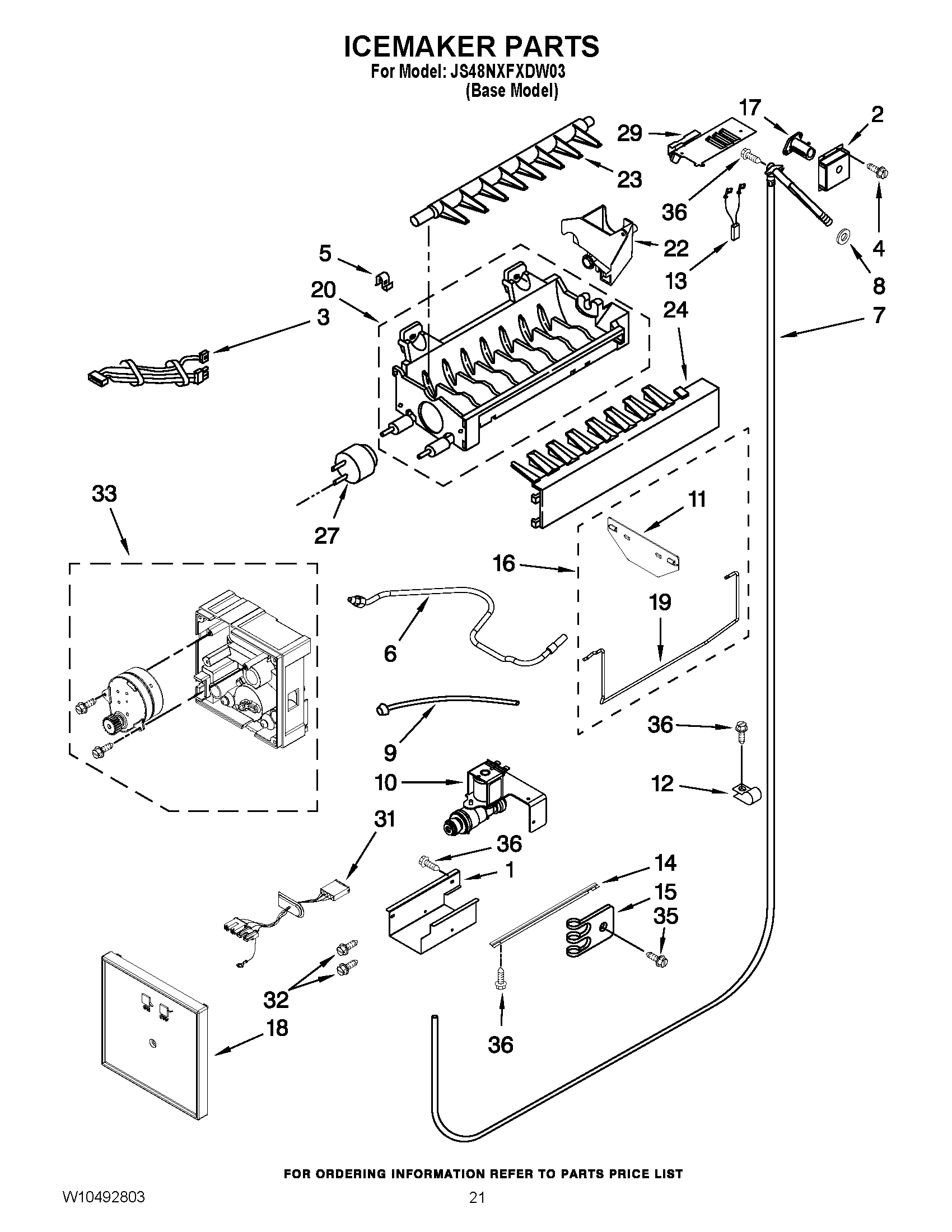

JS48NXFXDW03 13 – ICEMAKER PARTSadmin2025-04-26T09:15:44+00:00JS48NXFXDW03 13 – ICEMAKER PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE |
| NI | MAY W10249830 |
| NI | BLOCK, INSTALL TEMPLATE, WOOD PANELS |
| NI | MAY W10222283 |
| NI | MAY W10222281 |
| NI | MAY REFDEODOR |
| NI | ACCESSORY PARTS, CLEANER, STAINLESS STEEL |
| NI | ACCESSORIES, WIPES, STAINLESS STEEL CLEANING |
| 1 | MAY W10129653 |
| 2 | MAY W10176577 |
| 3 | WIRE ASSEMBLY, ICEMAKER |
| 4 | SCREW |
| 5 | Clip |
| 6 | MAY W10296807 |
| 7 | Water Inlet Tube Assembly |
| 8 | Seal |
| 9 | MAY 2317912 |
| 10 | MAY 2307650 |
| 11 | EXTENSION-SHUT OFF ARM |
| 12 | MAY 2221070 |
| 13 | Jumper, Fill Tube Heater |
| 14 | MAY 2320559 |
| 15 | Clip, Tube |
| 16 | MAY W10372199 |
| 17 | MAY 2221240 |
| 18 | MAY W10377174 |
| 19 | MAY W10372190 |
| 20 | MAY W10122527 |
| 22 | CUP, FILL |
| 23 | MAY 627843 |
| 24 | ICE STRIPPER |
| 27 | Thermostat (Also Order 542369 Cement Alumilastic) |
| 29 | MAY 2221231 |
| 31 | MAY W10279393 |
| 32 | SCREW |
| 33 | ASSEMBLY, MODULE AND MOTOR |
| 35 | MAY W10001250 |
| 36 | SCREW |
| 100 | MAY W10435673 |
