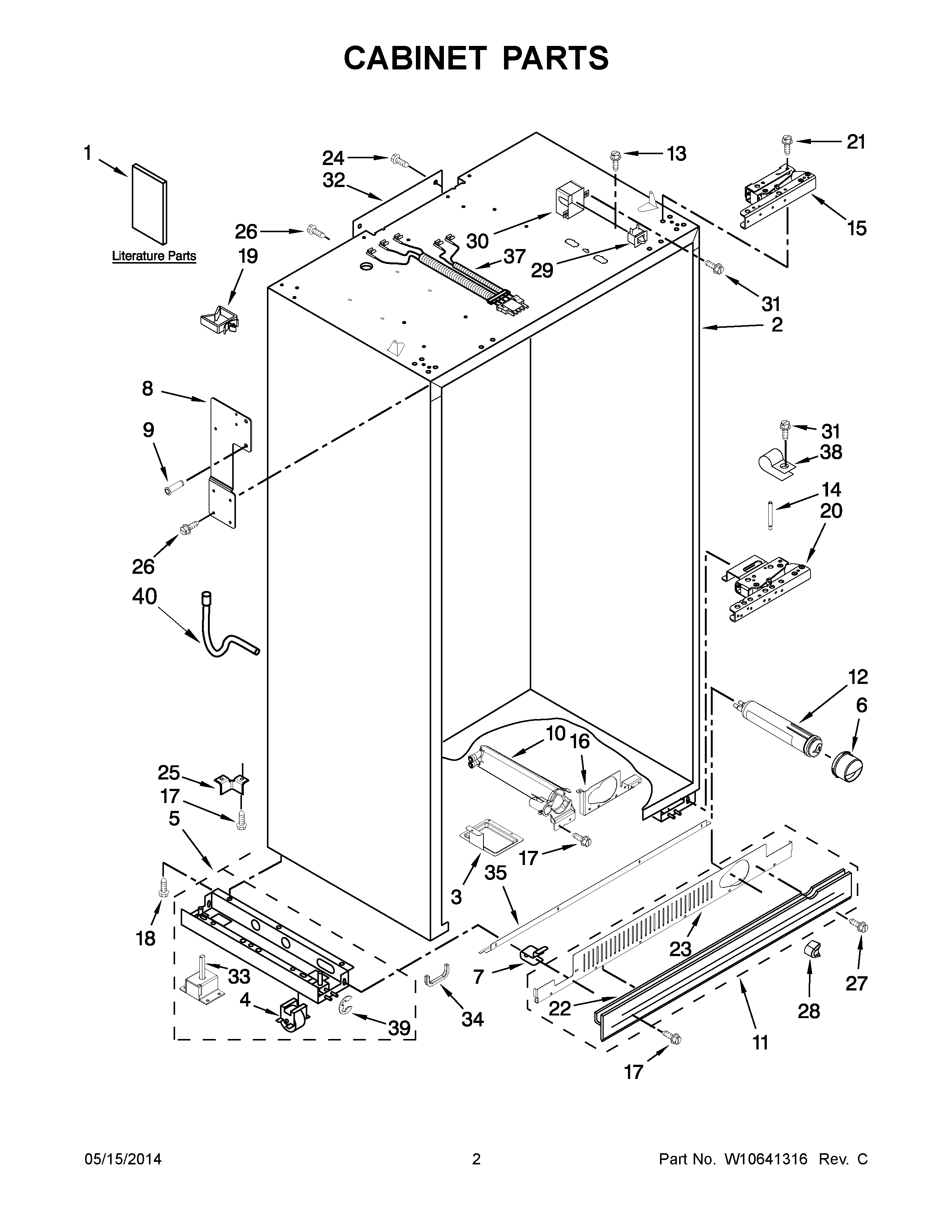

JS48NXFXDW05 02 – CABINET PARTS

Products

Position	Product
1	MAY W10234149
1	MAY W10303992
1	MAY W10234151
1	MAY W10246794
1	MAY W10483325
1	MAY W10379136
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	MAY 2260518B
7	Mounting Stud, Grille
8	SUPPORT, GRILLE (RH)
8	SUPPORT, GRILLE (LH)
9	Nutsert (4)
10	MAY W10121140
11	GRILLE KIT ASSY INCLUDES (22 & 23)
12	Filter, Water
13	Screw 8-32 x 5/16
14	Pin-Stop, Door
15	Hinge (Top) (RC)
15	Hinge (Top) (FC)
16	BRACKET, FILTER
17	MAY W10001250
18	SCREW
19	Wire Clip (5)
20	MAY W10182692
20	MAY W10182693
21	Screw 1/4-20 x 5/8
22	SKIRT-GRILLE, BOTTOM
23	GRILLE BOTTOM, FRONT
24	MAY 1157158
25	Bracket, Support Base (Rear) (2)
26	MAY W10141645
27	Screw
28	Button, Filter (Black)
29	SWITCH, LIGHT
30	COVER, SWITCH (RH)
30	COVER, SWITCH (LH)
31	Screw
32	Cover, Rear
33	LEVELER ASSY
34	GROMMET, CROSSOVERTUBE
35	MAY W10250963
37	MAY W10209510
38	MAY 549193
39	Ring, Retainer
40	MAY 2314064
