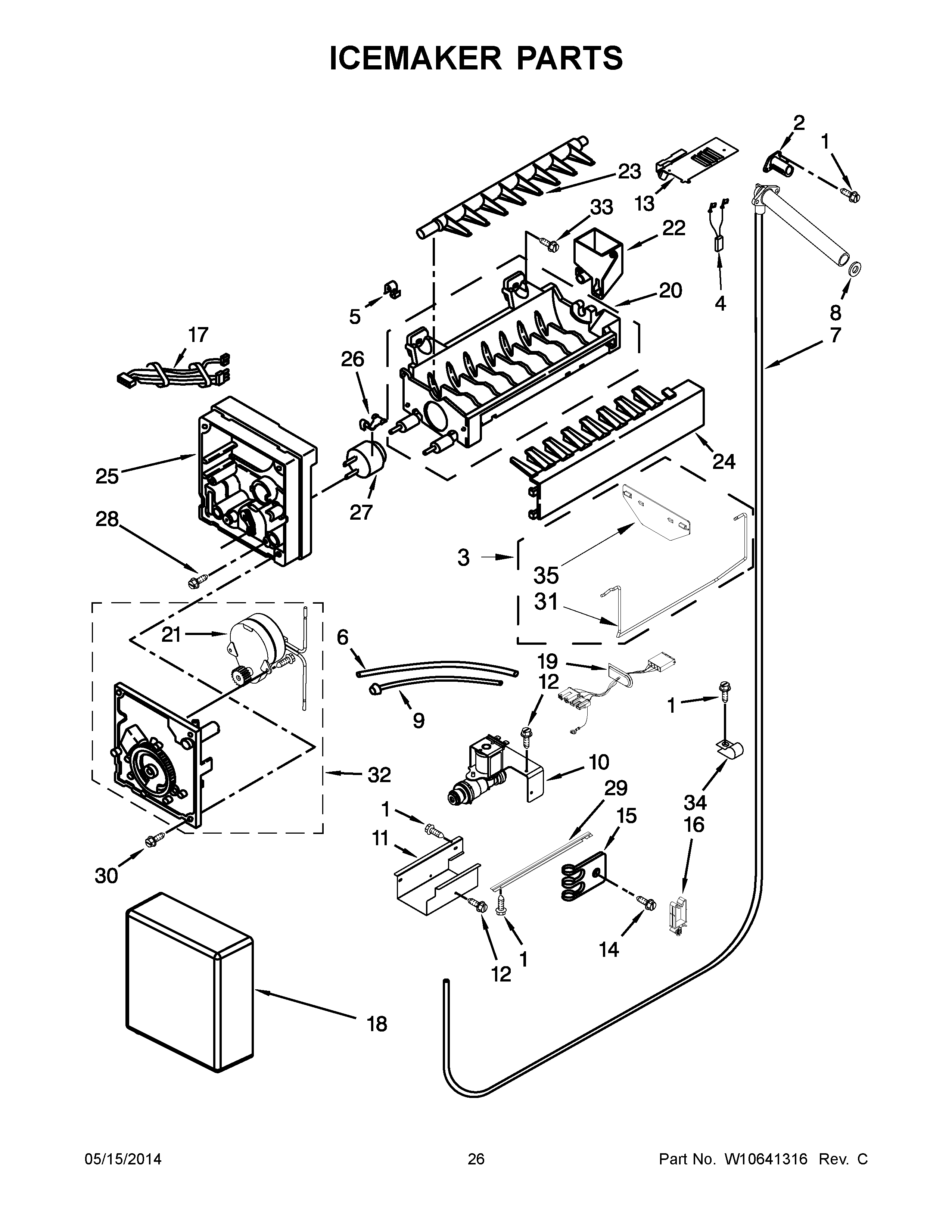

JS48NXFXDW05 14 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	MAY REFDEODOR
NI	LINER (NOT A SERVICEABLE PART)
NI	TEMPLATE, DOORS (WOOD PANEL)
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
NI	MAY W10553982
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	MAY W10489178
1	SCREW
2	MAY 2221240
3	MAY 2304354
4	WIRE ASSEMBLY, FILL TUBE HEATER
5	Clip
6	MAY W10296807
7	Water Inlet Tube Assembly
8	Seal
9	MAY W10437853
10	MAY 2307650
11	MAY W10129653
12	Screw, Ground
13	MAY 2221231
14	MAY W10001250
15	Clip, Tube
16	Wire Clip (5)
17	WIRE ASSEMBLY, ICE MAKER
18	COVER
19	MAY W10279393
20	MAY W10122527
22	MAY W10435665
23	MAY 627843
24	ICE STRIPPER
25	MAY 2194712
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	Screw (2)
29	MAY 2320559
30	MAY 489276
31	MAY 2304352
32	Module Assembly (Includes Items 23 and 24)
33	SCREW 8-15 X .813
34	MAY 2221070
35	EXTENSION-SHUT OFF ARM
100	MAY W10277450
