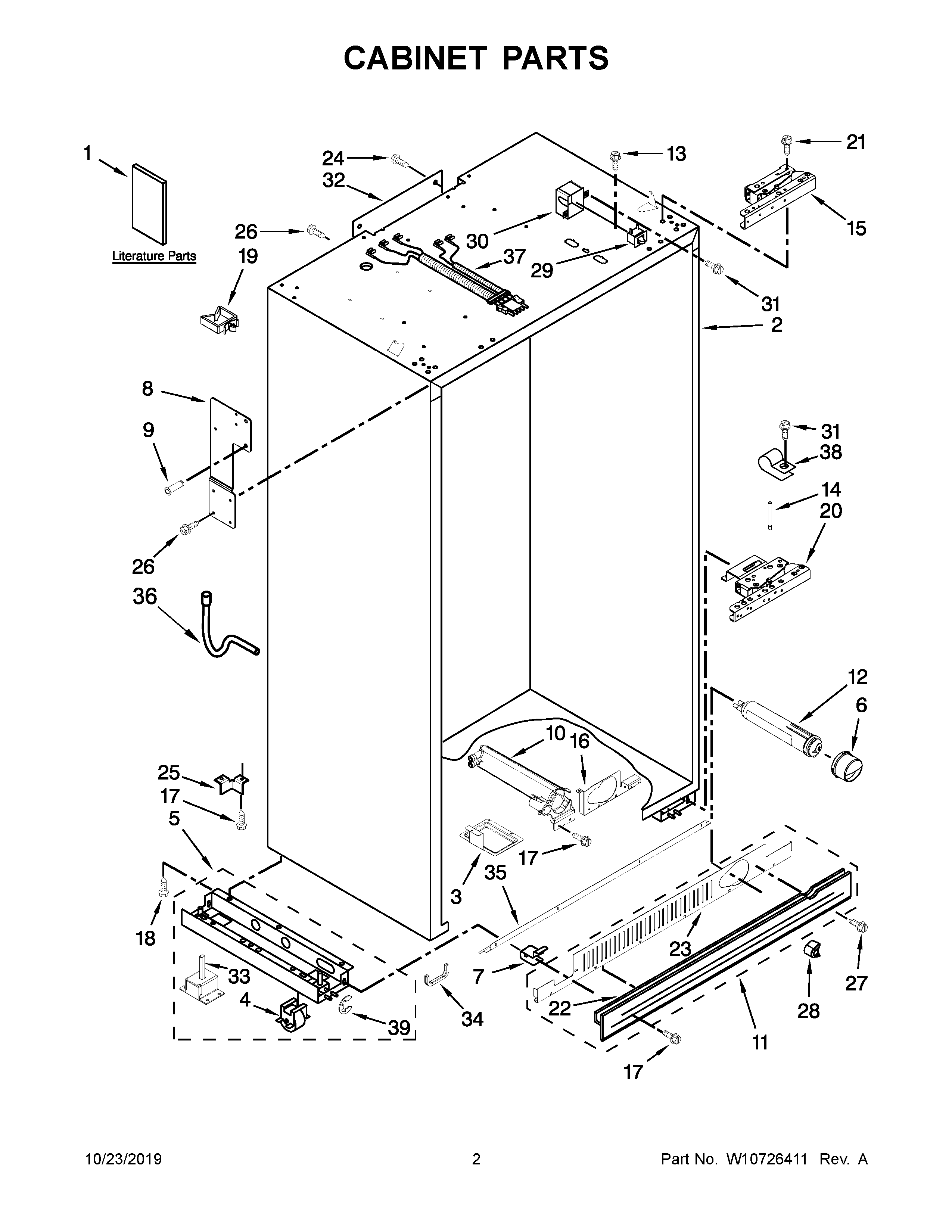

JS48NXFXDW10 02 – CABINET PARTSadmin2025-04-26T09:16:00+00:00JS48NXFXDW10 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1E | MAY W10681449 |
| 1 | MAY W10681396 |
| 1D | MAY W10234149 |
| 1C | MAY W10234151 |
| 1A | MAY W11112633 |
| 1B | MAY W10717534 |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | Tray, Drip Filter |
| 4 | MAY W10138054 |
| 5 | SUPPORT, LEVELER ASSEMBLY (RIGHT HAND) |
| 5A | SUPPORT, LEVELER ASSEMBLY (LEFT HAND) |
| 6 | CAP, WATER FILTER (BLACK) |
| 7 | Mounting Stud, Grille |
| 8 | SUPPORT, GRILLE (LH) |
| 8A | SUPPORT, GRILLE (RH) |
| 9 | Nutsert (4) |
| 10 | MAY W10121140 |
| 11 | GRILLE KIT ASSY INCLUDES (22 & 23) |
| 12 | Filter, Water |
| 13 | Screw 8-32 x 5/16 |
| 14 | Pin-Stop, Door |
| 15A | Hinge (Top) (FC) |
| 15 | Hinge (Top) (RC) |
| 16 | MAY W10674648 |
| 17 | MAY W10001250 |
| 18 | SCREW |
| 19 | Wire Clip (5) |
| 20A | MAY W10182693 |
| 20 | MAY W10182692 |
| 21 | SCREW |
| 22 | SKIRT-GRILLE, BOTTOM |
| 23 | GRILLE BOTTOM, FRONT |
| 24 | MAY 1157158 |
| 25 | Bracket, Support Base (Rear) (2) |
| 26 | MAY W10141645 |
| 27 | MAY W10005050 |
| 28 | Button, Filter (Black) |
| 29 | MAY W10656773 |
| 30 | COVER, SWITCH (LH) |
| 30A | COVER, SWITCH (RH) |
| 31 | Screw |
| 32 | Cover, Rear |
| 33 | LEVELER ASSY |
| 34 | GROMMET, CROSSOVERTUBE |
| 35 | MAY W10250963 |
| 36 | MAY 2314064 |
| 37 | MAY W10209510 |
| 38 | MAY 549193 |
| 39 | Ring, Retainer |
