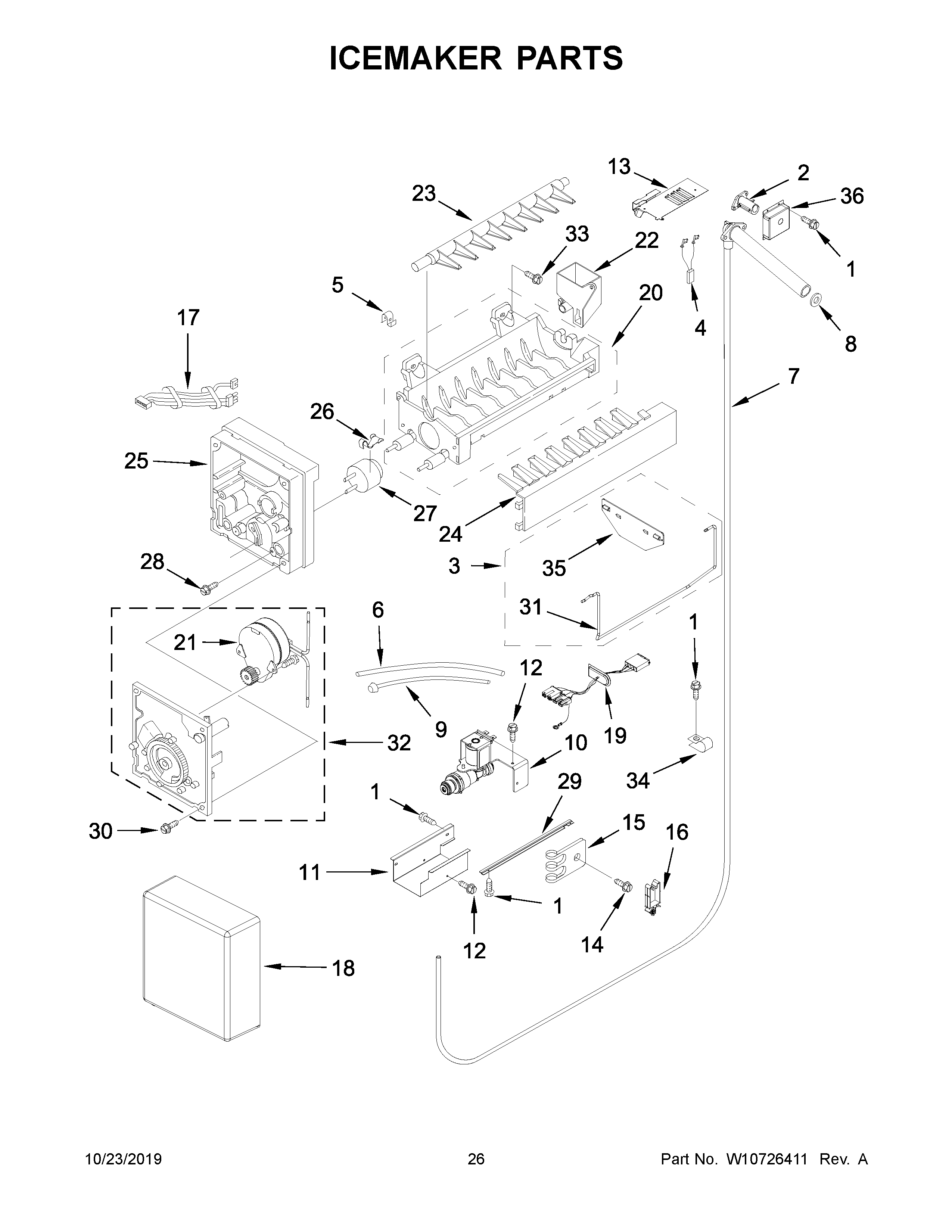

JS48NXFXDW10 14 – ICEMAKER PARTSadmin2025-04-26T09:16:15+00:00JS48NXFXDW10 14 – ICEMAKER PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORY PARTS, CLEANER, STAINLESS STEEL |
| NI | BLOCK, INSTALL TEMPLATE, WOOD PANELS |
| NI | ACCESSORIES, WIPES, STAINLESS STEEL CLEANING |
| NI | TEMPLATE, DOOR (WOOD PANEL) |
| NI | MAY W10489178 |
| NI | MAY W10553982 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | SCREW |
| 2 | MAY 2221240 |
| 3 | MAY W11128135 |
| 4 | WIRE ASSEMBLY, FILL TUBE HEATER |
| 5 | Clip |
| 6 | MAY W10296807 |
| 7 | Water Inlet Tube Assembly |
| 8 | Seal |
| 9 | MAY W10683737 |
| 10 | MAY 2307650 |
| 11 | MAY W10129653 |
| 12 | Screw, Ground |
| 13 | MAY 2221231 |
| 14 | MAY W10001250 |
| 15 | Clip, Tube |
| 16 | Wire Clip (5) |
| 17 | WIRE ASSEMBLY, ICE MAKER |
| 18 | COVER |
| 19 | MAY W10279393 |
| 20 | ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638) |
| 22 | MAY W10435665 |
| 23 | MAY 627843 |
| 24 | MAY W10699925 |
| 25 | MAY W11236451 |
| 26 | MAY 2315522 |
| 27 | MAY W10290336 |
| 28 | Screw (2) |
| 29 | MAY 2320559 |
| 30 | MAY 489276 |
| 31 | ARM, SHUT OFF |
| 32 | Module Assembly (Includes Items 23 and 24) |
| 33 | Screw |
| 34 | MAY 2221070 |
| 35 | EXTENSION, SHUT OFF ARM |
| 36 | MAY W10176577 |
| 100 | ASSEMBLY, ICEMAKER |
