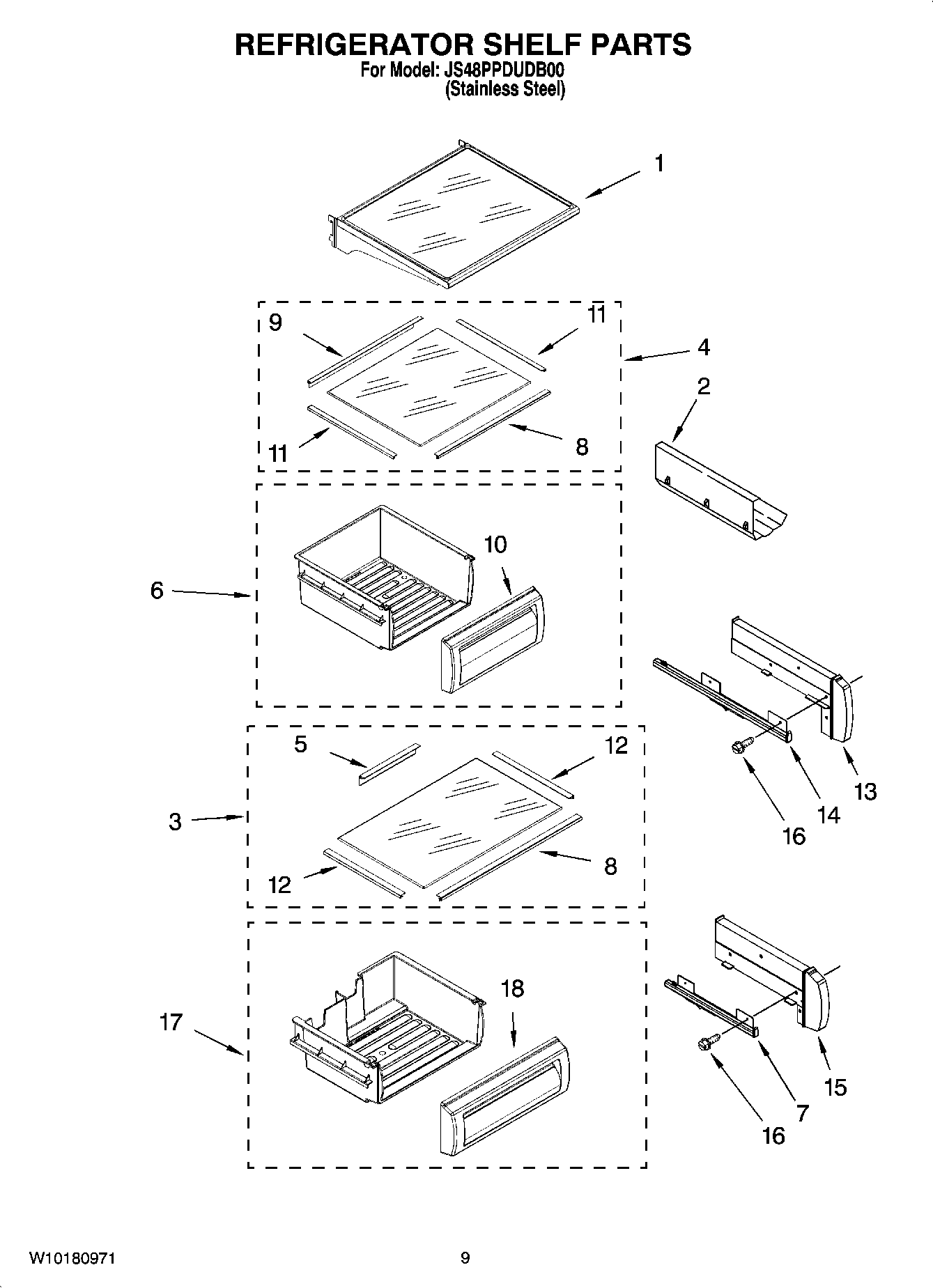

JS48PPDUDB00 07 – REFRIGERATOR SHELF PARTS
Written by
in
JS48PPDUDB00 07 – REFRIGERATOR SHELF PARTS
Products
Position
Product
1
Shelf Assy (4)
2
Rack, Wine
3
Meat Pan Cover Assembly
4
Crisper Cover Assembly
5
MAY 2257583
6
MAY 2252413
7
Slide, Meat Pan (Right Side)
7
Slide, Meat Pan (Left Side)
9
MAY 2256255
10
MAY 2256249
11
Trim, Glass Side Crisper Pan
12
MAY 2256250
13
Spacer, Crisper (Right Side (2))
13
Spacer, Crisper (Left Side (2))
14
Slide, Crisper (Left Side)
14
Slide, Crisper (Right Side)
15
Spacer, Meat Pan (Left Side)
15
Spacer, Meat Pan (Right Side)
16
Screw (Right Side- (8-18 x 1.375))
16
Screw
17
MAY 2256370
18
Front, Meat Pan
←
