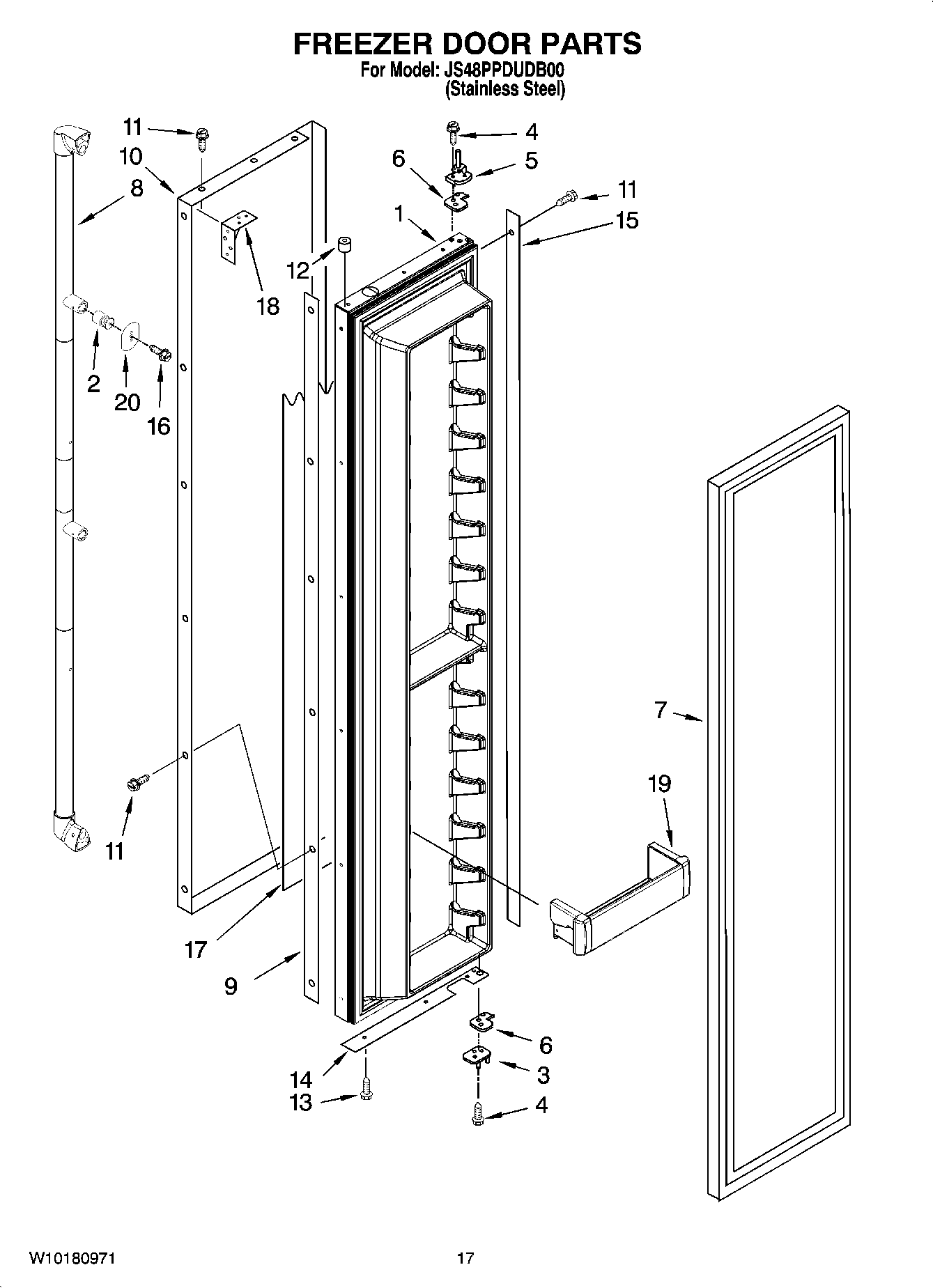

JS48PPDUDB00 11 – FREEZER DOOR PARTS

JS48PPDUDB00 11 – FREEZER DOOR PARTS

Written by

in

JS48PPDUDB00 11 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY W10157905
2STUD, HANDLE MOUNTING
3ASSEMBLY, BOTTOM HINGE LEAF
4MAY 489282
5MAY 2266854
6Spacer-Door, Top & Bottom
7MAY 2222810
8Handle, Door
9SPACER, DOOR-SKIN (HANDLE SIDE)
10MAY W10144964
11Screw, 8-15 x .500 (Stainless Steel)
12Spacer, Door-Skin (Top)
13SCREW
14Spacer, Door-Skin (Bottom)
15Spacer, Door-Skin (Hinge Side)
16Screw
17Filler, Door (Bottom)
17Filler, Door (Top)
18Brace, Door Corner
19Bin, Door (6)
20MAY W10127710
