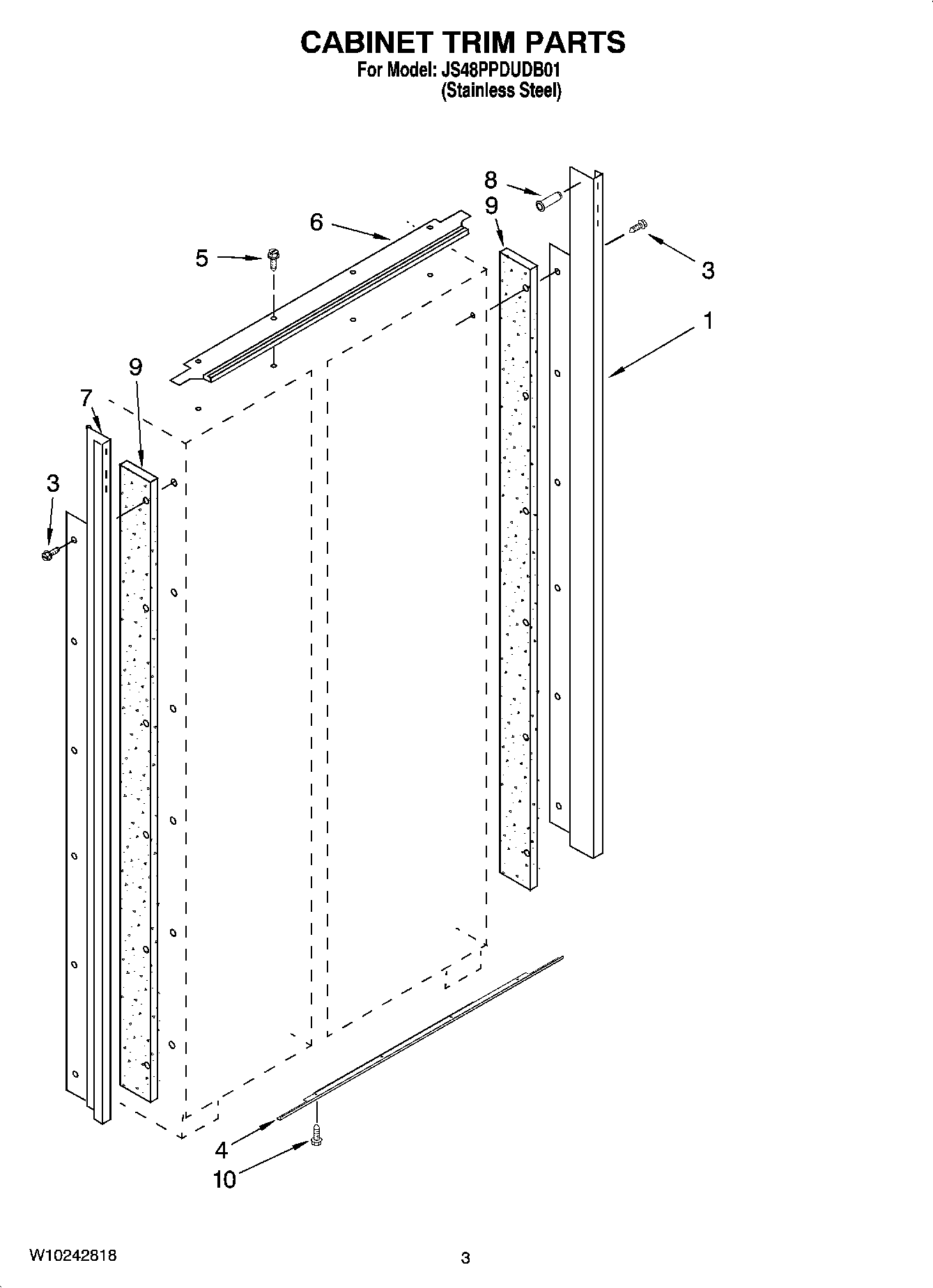

JS48PPDUDB01 02 – CABINET TRIM PARTS
Products
| Position | Product |
|---|---|
| 1 | TRIM, CAB SIDE (RIGHT) |
| 3 | SCREW |
| 4 | Cabinet, Trim (Bottom) |
| 5 | SCREW |
| 6 | Cabinet, Trim Top |
| 7 | TRIM, CAB SIDE (LEFT) |
| 8 | Nutsert (4) |
| 9 | SEAL-TRIM, SIDE |
| 10 | Screw (3) |
