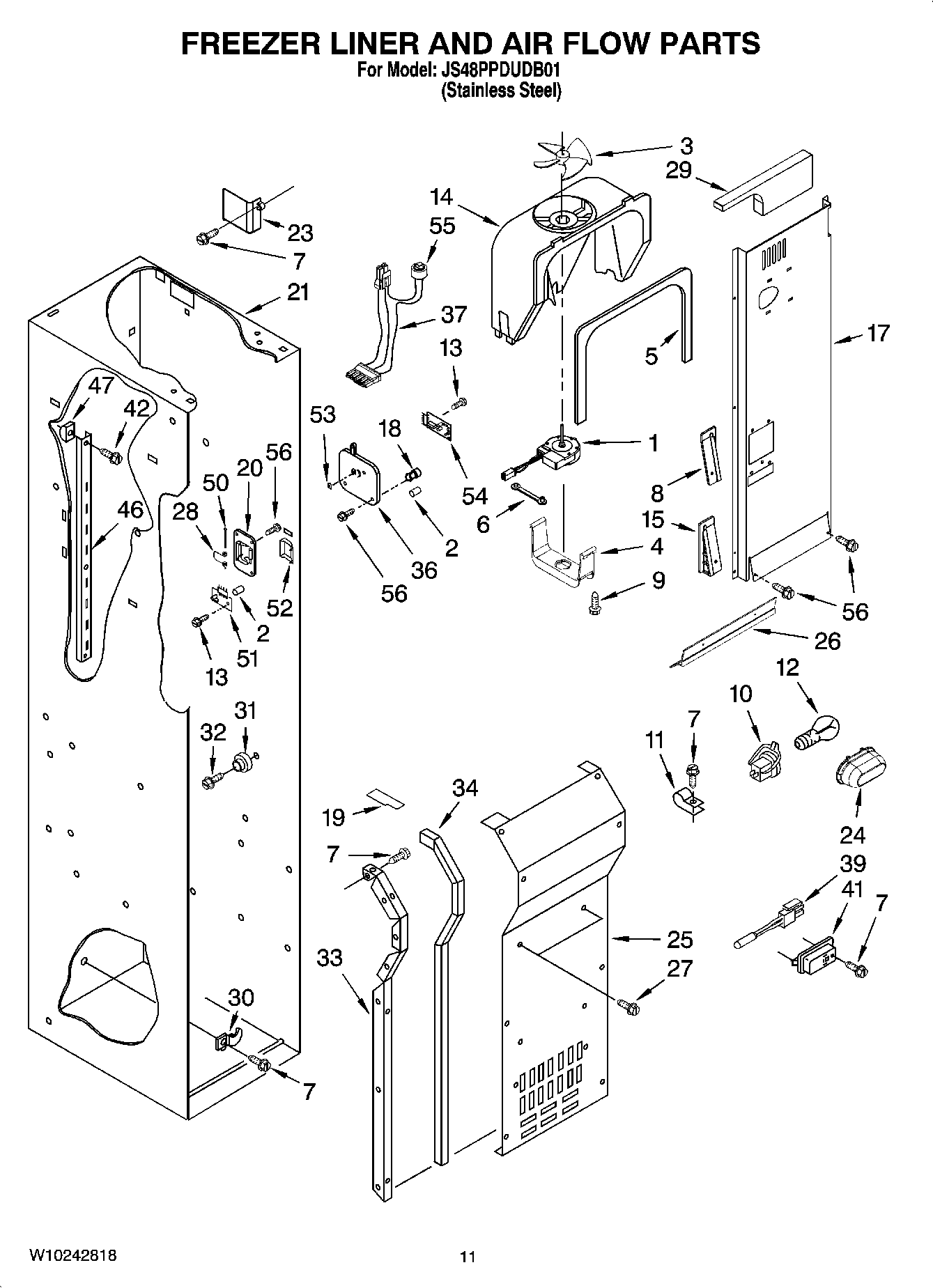

JS48PPDUDB01 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY 2259385
2MAY 2198665
3Blade, Fan (Evaporator)
4MAY 2223733
5Gasket, Cover
6Grommet
7SCREW
8Wedge, Air Duct
9MAY 488500
10MAY 2223857
11Clamp, Nylon
12Bulb, Light
13Screw (2)
14Fan Scroll
15Wedge, Air Duct
17Air Duct
18MAY 2198643
19Block, Fan Scroll (Right)
19Block, Fan Scroll (Left)
20MAY W10151205
23MAY 2259025
24Light Shield
25MAY W10158005
26MAY 2302851
27SCREW
28SPRING, DOOR
29MAY 2309284
30MAY 1112260
31MAY 2196483
32MAY W10191952
33Evaporator, Cover Rail (Left Side)
33Evaporator, Cover Rail (Right Side)
34Gasket (2) Evaporator Cover
36MAY W10151208
37MAY W10139189
39MAY 2306010
41MAY 2317105
42SCREW
46MAY 2259032
47Support, Screw
50PIN, DOOR
51MAY W10193840
52MAY 2198633
53MAY 2315398
54MAY W10193666
55Defrost, Bi-Metal
56MAY 8281185
