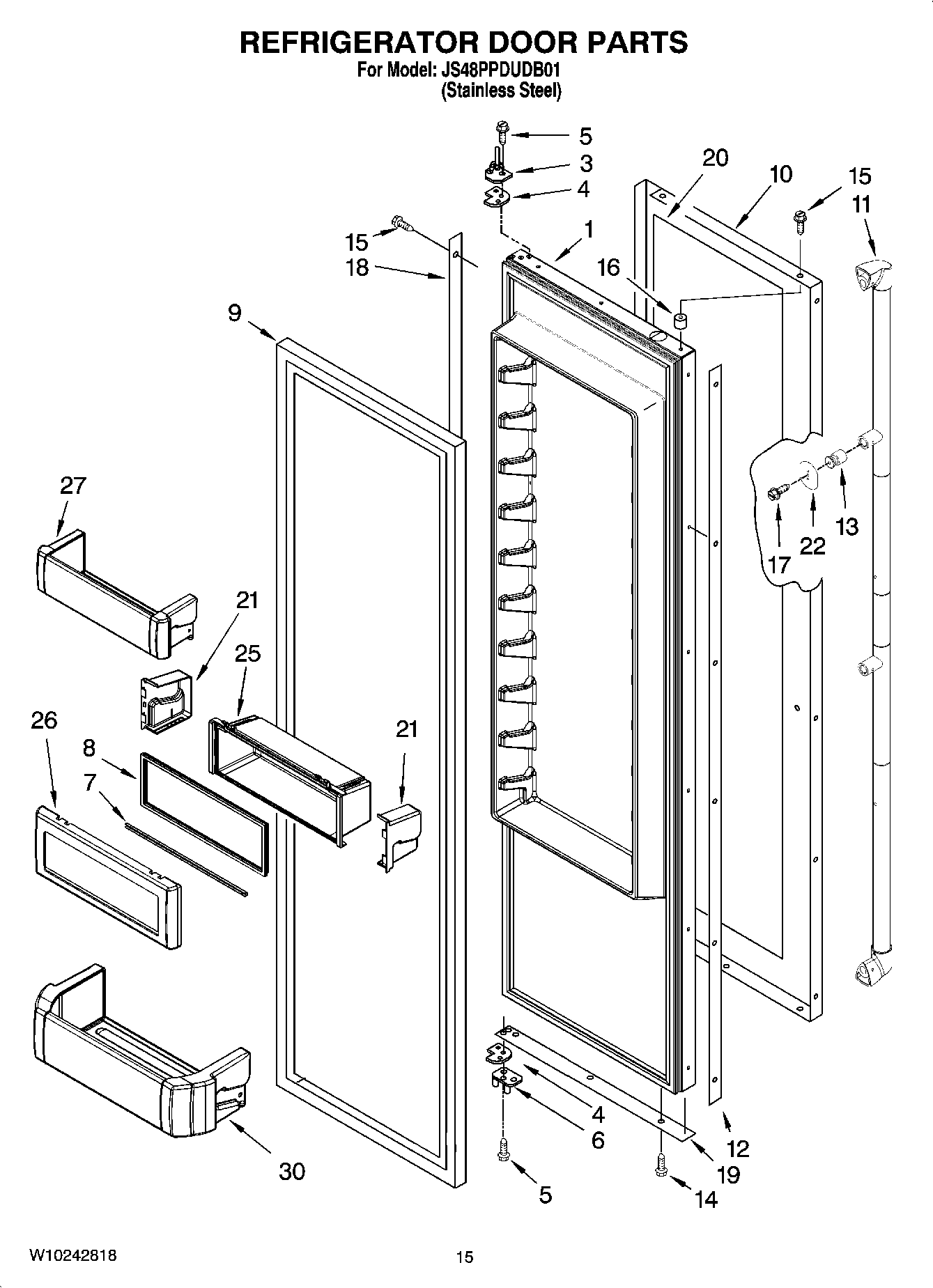

JS48PPDUDB01 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Includes Item 9)
3MAY 2266854
4Spacer-Door, Top & Bottom
5MAY 489282
6Hinge Assembly, Bottom
7MAY 2222797
8MAY 2222983
9MAY 2222812
10MAY W10144970
11Handle, Door
12SPACER, DOOR-SKIN (HANDLE SIDE)
13STUD, HANDLE MOUNTING
14SCREW
15Screw, 8-15 x .500 (Stainless Steel)
16Spacer, Door-Skin (Top)
17Screw
18SPACER, DOOR
19Spacer, Door-Skin (Bottom)
20MAY 2005327
21End Cap (Right Side)
21End Cap (Left Side)
22MAY W10127710
25MAY 2222923
26MAY 2257617
27Bin, Door (3)
30Bin, Door
