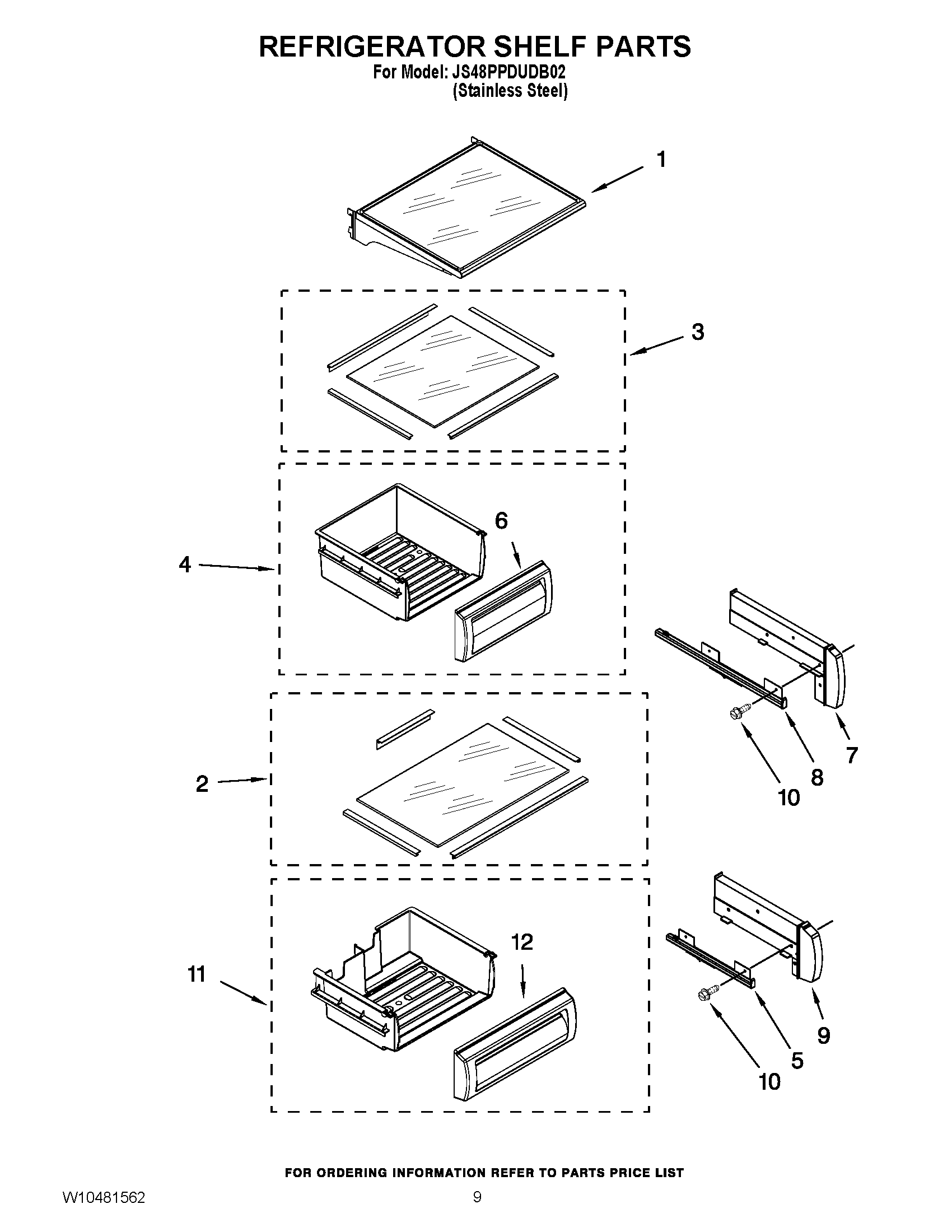

JS48PPDUDB02 07 – REFRIGERATOR SHELF PARTSadmin2025-04-26T09:16:01+00:00JS48PPDUDB02 07 – REFRIGERATOR SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Shelf Assy (4) |
| 2 | Meat Pan Cover Assembly |
| 3 | Crisper Cover Assembly |
| 4 | PAN, CRISPER |
| 5 | Slide, Meat Pan (Right Side) |
| 5 | Slide, Meat Pan (Left Side) |
| 6 | MAY 2256249 |
| 7 | Spacer, Crisper (Left Side (2)) |
| 7 | Spacer, Crisper (Right Side (2)) |
| 8 | Slide, Crisper (Left Side) |
| 8 | Slide, Crisper (Right Side) |
| 9 | Spacer, Meat Pan (Right Side) |
| 9 | Spacer, Meat Pan (Left Side) |
| 10 | Screw (Right Side- (8-18 x 1.375)) |
| 10 | Screw |
| 11 | MAY W10407628 |
| 12 | Front, Meat Pan |
