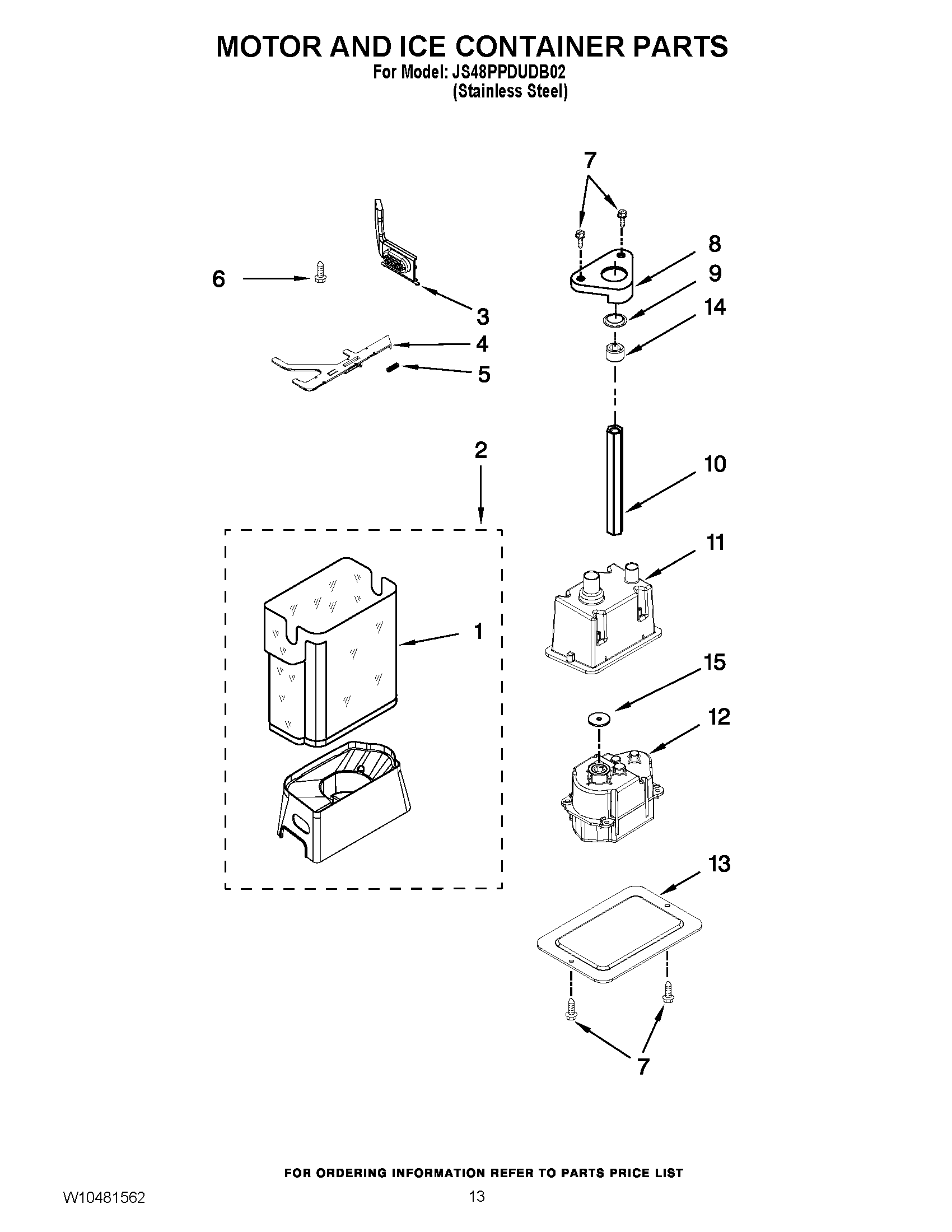

JS48PPDUDB02 09 – MOTOR AND ICE CONTAINER PARTS – Aparts

JS48PPDUDB02 09 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	BIN, ICE
2	ASSEMBLY, ICE CONTAINER
3	MAY 2266800
4	LATCH, BIN
5	MAY 2198608
6	MAY 2198671
7	Screw
8	MAY 2188919
9	MAY 2198628
10	DRIVE SHAFT
11	MAY 2318011
12	MOTOR, DISPENSER
13	MAY 2318028
14	SLEEVE, COUPLING
15	WASHER, RUBBER
